DRYDEN AQUA DA-GEN User Manual

DA-GEN

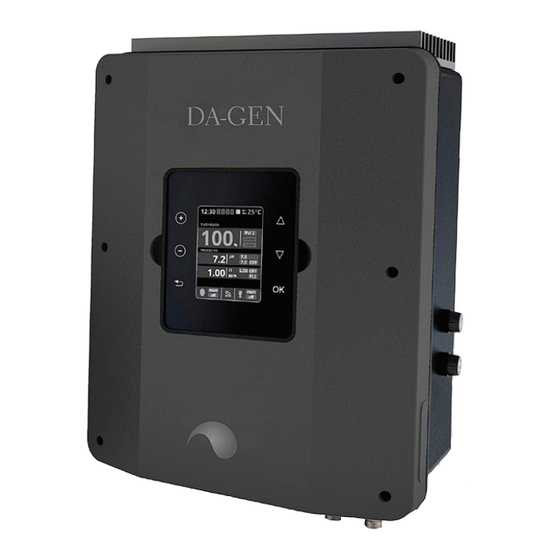

Dryden Aqua Generator
USER MANUAL
The DA-GEN is an innovative water treatment system and additional an intelligent pool controller. The DA-GEN
combines Hydrolysis with Electrolysis with a low mineral content.
The Hydrolysis produces free radicals and other oxygen compounds like ozon, peroxide and persulfate. All
these oxidants destroy organic substances and pathogena in the water. Free radicals are the strongest oxidants
we know. They oxidise and decompose in a few seconds. To guarantee a safe depot disinfection the DA-GEN
produces a very small amount of chlorine. In combination with DAISY we need a very low mineral content of 1 to
2 kg MgCl or 0.75 to 1.5 kg NaCl per m
2
The DA-GEN controls also all your pool components centrally. Thanks to WIFI you can check and control your
pool system 24/7.
Electronic box
4
1
2 3
110-230 V
Connection cell
1
2
Flow detector
5
3
Main connection 230 V
6
4
ON/OFF switch
1
16
8
9
3
6 4 5
10
External pump controller*
A
®
Filter with AFM
B
C
Filter pump
1 Electronic box
2 Measuring cell free chlorine
3 Cell (always in vertical position if
installed without flow switch)
4
pH probe
5 Redox probe or conductivity probe
(Optional)
1
3 .
5
6
Fuse for device and cell 4 A
Fuse relays 4 A
2

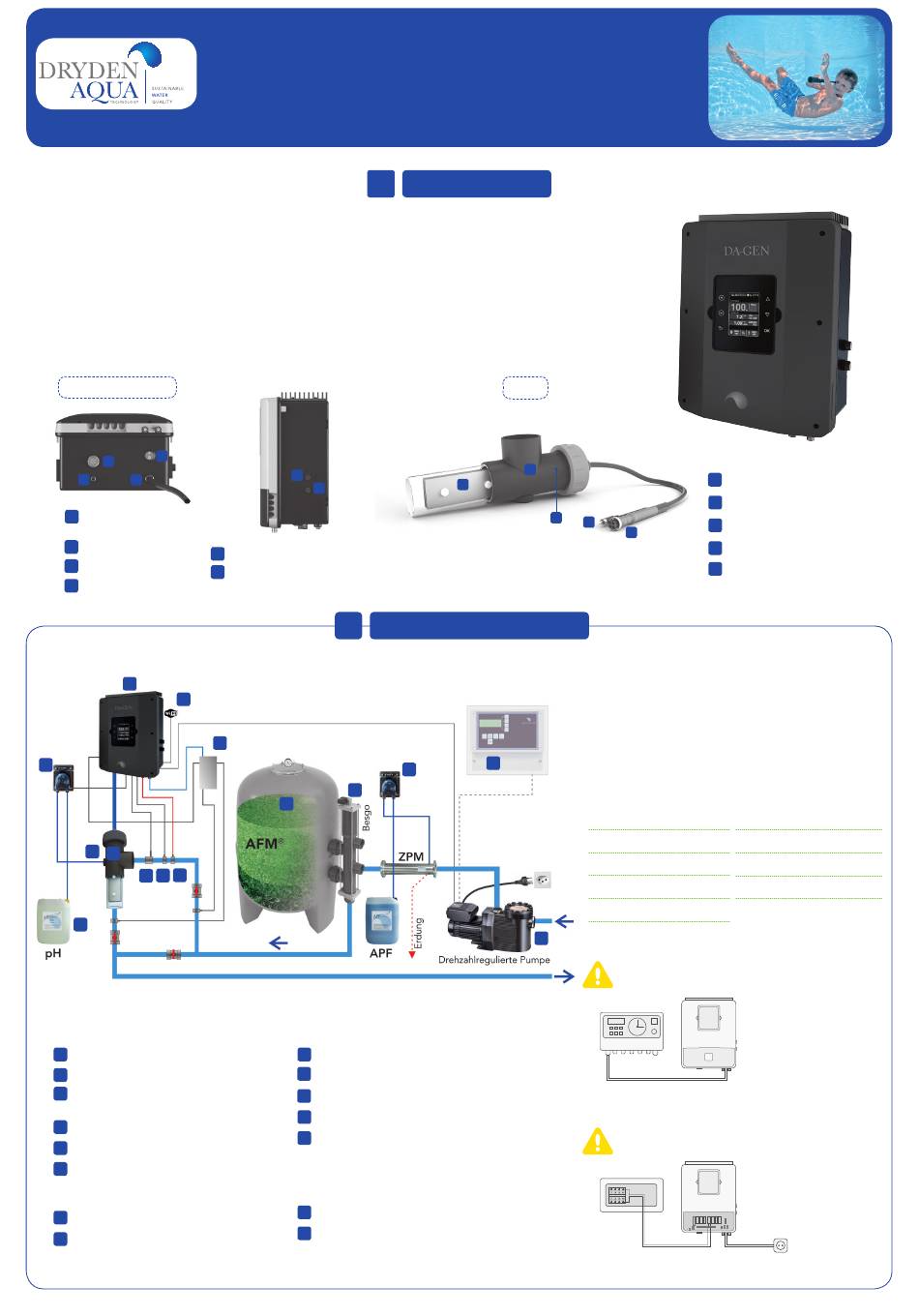

SYSTEM INSTALLATION
2
15
B
Flow switch
6
7 APF dosing pump
pH dosing pump
8
pH injection
9
pH-Minus container
10
(not included)
15 Besgo valve (not included)
WIFI module
16
DESCRIPTION
Cell
4
1
5
A
7
C
1
Cell
2
Flow detector
2
3 Cell connector
3
4
Cell housing
5
Flow/gas detector (internal)
Electrical consumption
It's recommended to use a time delay circuit breaker of
13 A for private devices and a time delay circuit breaker
of 16 A for public devices. In case of sharing the power
supply with other devices please consult a technician in
order to dimension a correct installation.
Maximum
Product consumption Product
DA-GEN 24 125W DA-GEN 240
DA-GEN 45
180W DA-GEN 360
DA-GEN 90 175W DA-GEN 500
DA-GEN 150 680 W
Private
* Filtration control by external timer
Filtration mode:
"Manual/ON"
230 V
* Filtration control by internal timer
Filtration mode:
See section 5 - Filtration of
the Installation manual
Relais FILTER PUMP 230 V
Maximum
consumption
1000 W
1020 W
2880 W
Public
