Summary of Contents for BDS Maschinen AutoMAB 350

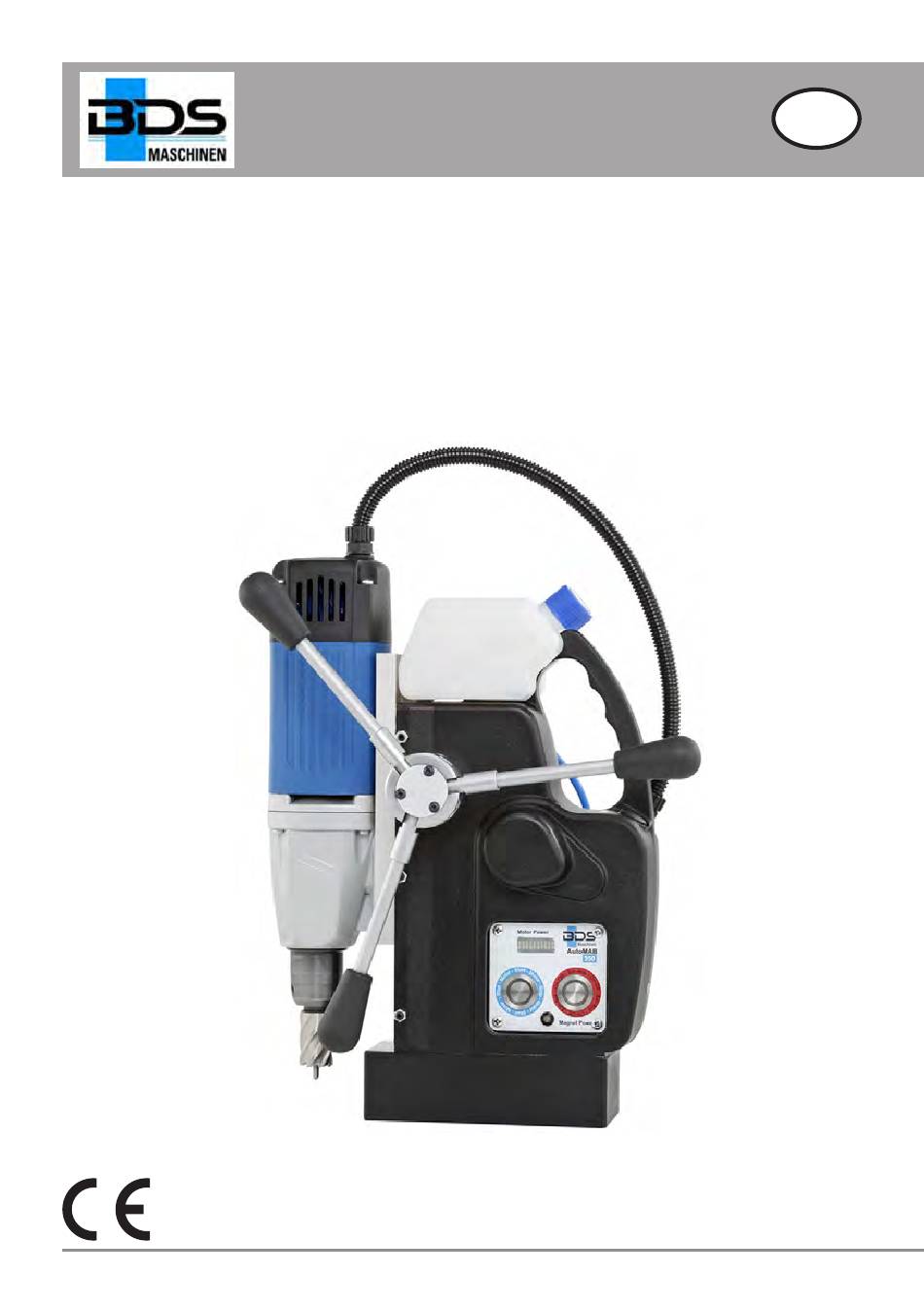

- Page 1 Translation of the original- Operating Manual AutoMAB 350...
-
Page 3: Table Of Contents
European Union. Dispose of the device via communal collection points. The lubricant used can contain substances dangerous to the environment. Dispose of the lubricant according to local regulations. Observe the disposal instructions from the lubricant manufacturer. AutoMAB 350... - Page 4 If the situation is not avoided, it may lead to material damage. ► Follow the instructions in this warning to avoid material damage. NOTE ► A note indicates additional information that simplifies the use of the machine. AutoMAB 350...
-
Page 5: Safety
Make sure that your workplace is clean. of the switches on the machine. ■ Keep the machine clean, dry and free of oil and grease. ■ Follow the instructions on lubricating and cooling the tool. AutoMAB 350... - Page 6 Wear protective gloves when removing swarf. ► When working on scaffolding, the op- erator must be secured with a safety belt as the machine can oscillate dan- gerously in the event of interruption to the power supply. AutoMAB 350...
- Page 7 ► Do not pull the connecting cable across sharp edges or hot surfaces. ► Lay the connecting cable in such a way that it cannot be caught and wound up in the rotating part of the machine. AutoMAB 350...
- Page 8 ► If the clamping magnet loses adhe- sion during processing, the machine is switched off. This is possible as the result of an unfavourable drill to feed speed ratio, so that the machine is squeezed off the substrate. AutoMAB 350...
-
Page 9: Components / Delivery Contents
Helmet for protecting your head against falling objects (see fig. 2) Hand lever Wear a harness where there is a danger of falling. Pos. 1 Automatic feed switched on Gloves for protection against Pos. 2 Automatic feed switched off injuries Manual feed AutoMAB 350... -
Page 10: Before Using For The First Time
Before using for the first time Delivery contents Preparation This section contains important instructions AutoMAB 350 core drilling machine on the required preparation before begin- Safety chain ning any work. ZAK 075 ejector pin Additional safety measures for ZAK 100 ejector pin... - Page 11 (1) must be clean and grease-free. ■ The clamping surface must be com- pletely smooth and level. NOTE ► Clean the substrate and the magnetic foot (1) of the machine before use. ► Remove any unevenness and loose rust from the substrate. AutoMAB 350...
- Page 12 Tighten both hexagonal socket screws in the tool mount with the Allen wrench (D) supplied. Removing the tool ‹ Untighten both hexagonal socket screws in the tool mount with the Allen wrench (D) supplied and remove the tool from below. AutoMAB 350...
-
Page 13: Using
Deactivating the magnetic clamp ‹ Hold the handle tightly (3) to stop the machine from slipping. ‹ Turn the switch (21) off. The indicator lamp in the switch (21) extinguishes. AutoMAB 350... - Page 14 (see section “Switch auto- matic feed on/off”). After successful drilling: ‹ Move the hand lever to position 2 (see fig. 2). ‹ Move the machine slide to the upper position with the hand lever. ‹ Stop the machine. AutoMAB 350...
-
Page 15: Eliminating Blockages
Leave the magnetic clamp ► Make sure that swarf is removed switched on. regularly. With larger drilling depths, ‹ Use the handle to move the machine break up the swarf. slide to the upper position. ‹ Remove swarf and check tool. AutoMAB 350... -
Page 16: Cleaning
BDS or by an author- ised repair workshop. Unauthorised repairs will invalidate the guarantee. Customer service/service Should you have any questions on custom- er service/service, please contact BDS.We will be happy to give you the address of your nearest service partner. AutoMAB 350... -
Page 17: Storage
If you do not intend to use the machine for a longer period of time, clean it as de- scribed in the section “Cleaning”. Store the machine and all its accessories in the transport case at a dry, clean and frost-free location. AutoMAB 350... -
Page 18: Troubleshooting
The lubrication system does Lubricant tap closed. Open the lubricant tap. not function. Connecting nipple clogged. Clean the tank and nipple. NOTE ► If you cannot resolve the problem with the steps described above, please contact customer service. AutoMAB 350... -
Page 19: Technical Data
Technical data Technical data Model AutoMAB 350 Dimensions (L x W x H) 271x196x310/460 Magnetic foot (L x W) 84 x 168 Approx. net weight. Operating voltage (see type plate) or 110-125 / 50-60 Hz Power consumption 1050 Noise emission... -
Page 20: Ec Declaration Of Conformity
EC Declaration of Conformity EC Declaration of Conformity in accordance with Machine Directive 2006/42/EC, appendix II 1A Name/address of the manufacturer: BDS Maschinen GmbH Martinstraße 108 D-41063 Mönchengladbach We hereby declare that the product Model: Magnetic core drilling machine Type:... -
Page 21: Automab
Fig. 1 Pos. 2 Pos. 1 Fig. 3 Fig. 2 B, C,... - Page 22 BDS Maschinen GmbH Martinstraße 108 D-41063 Mönchengladbach Fon: +49 (0) 2161 / 3546-0 Fax: +49 (0) 2161 / 3546-90 Internet: www.bds-maschinen.de E-mail: info@bds-maschinen.de...
