Axis locks with a keypad interface are operated by a 4-digit User Code or by an ADA compliant User Key. Manager Keys provide management
access and external power. Programming is accomplished via a Programming Key unique to the lock system. An optional mobile application
tool simplifies lock system management and provides audit trail.

Lock Parts

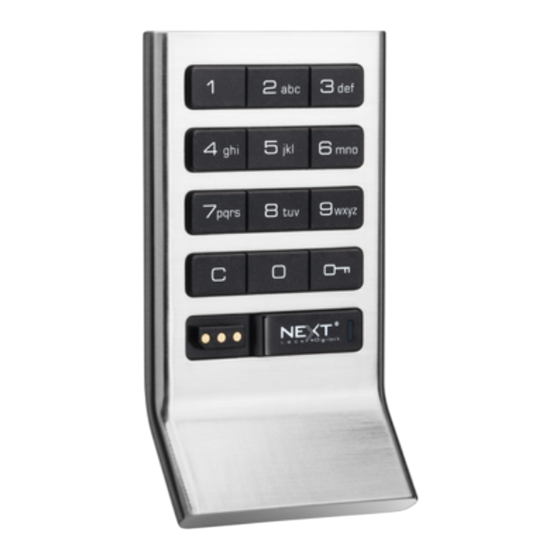

Front Unit
Key Button
C Button
Key Slot
Pull Handle
Standard

Keys

Operates the lock
Overrides user access
Allows management inspection
Provides external power
Registers Manager Keys
Assigns user credential (in assigned use functionality)
Sets lock functionality
*Up to 25 Manager Keys may be registered to each lock

Key Insertion

Standard
Next logo must face up on standard and vertical body locks.
Alpha Numeric
Keypad
C Button
Key Slot
Shared Use
Assigned Use
Vertical
**1 Programming Key allowed per lock group
Vertical
Product Guide
Standard Keypad
Bolt Mechanism
Rear Unit
Cover Plate
Lock Mounting Holes
Key Button
Pull Handle
User Key
Manager Key*
•
Shared & Assigned Use Functionality
Connection Options
Cable
Cover Plate
Screws
Pin
1/2" (12.7 mm)
Deadbolt
Programming Key**
•
•
•
•
•
•
•
•
•
•
•
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Axis and is the answer not in the manual?

Questions and answers

Related Manuals for Next Axis

Summary of Contents for Next Axis

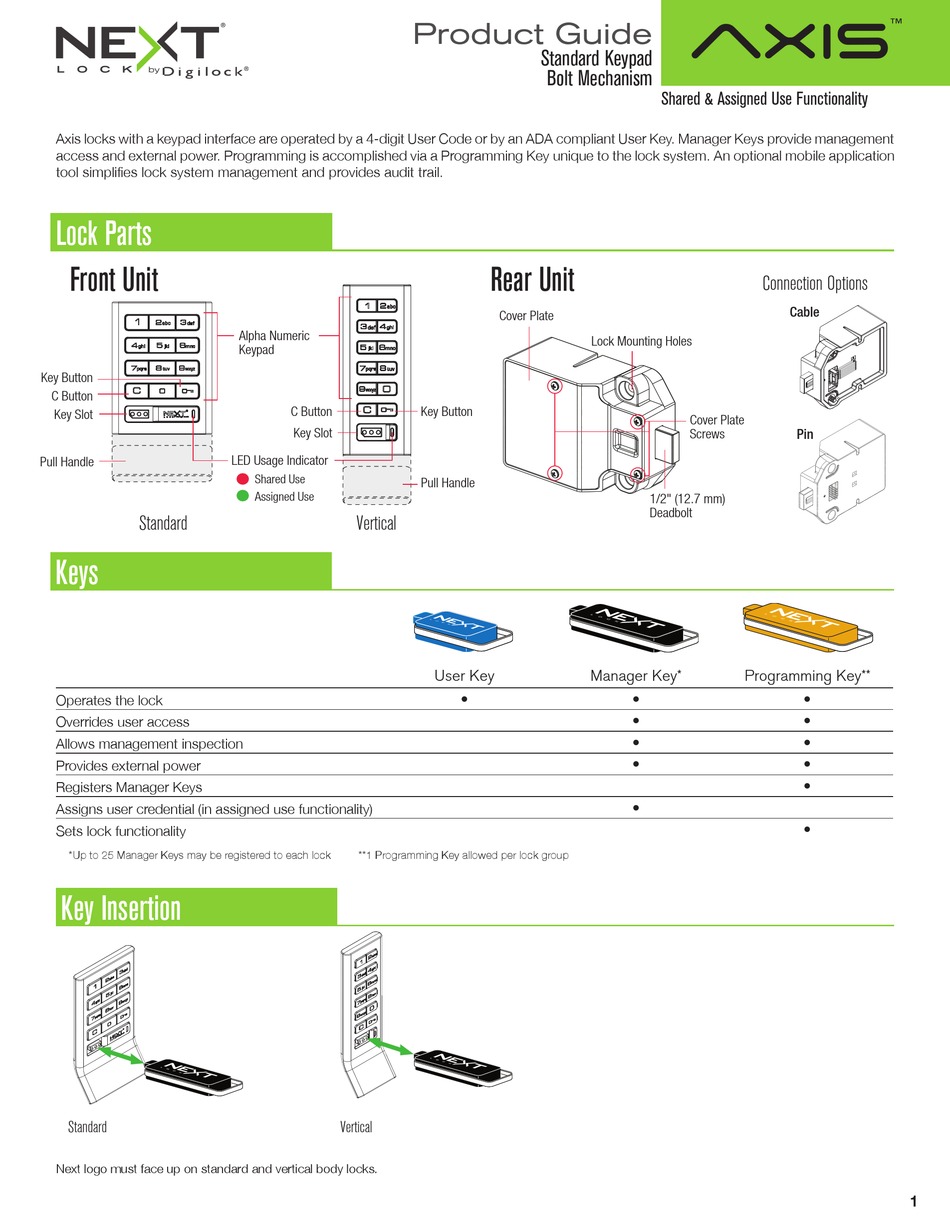

  • Page 1 Shared & Assigned Use Functionality Axis locks with a keypad interface are operated by a 4-digit User Code or by an ADA compliant User Key. Manager Keys provide management access and external power. Programming is accomplished via a Programming Key unique to the lock system. An optional mobile application tool simplifies lock system management and provides audit trail.
