Summary of Contents for Rx Systems AutoSealer 1001

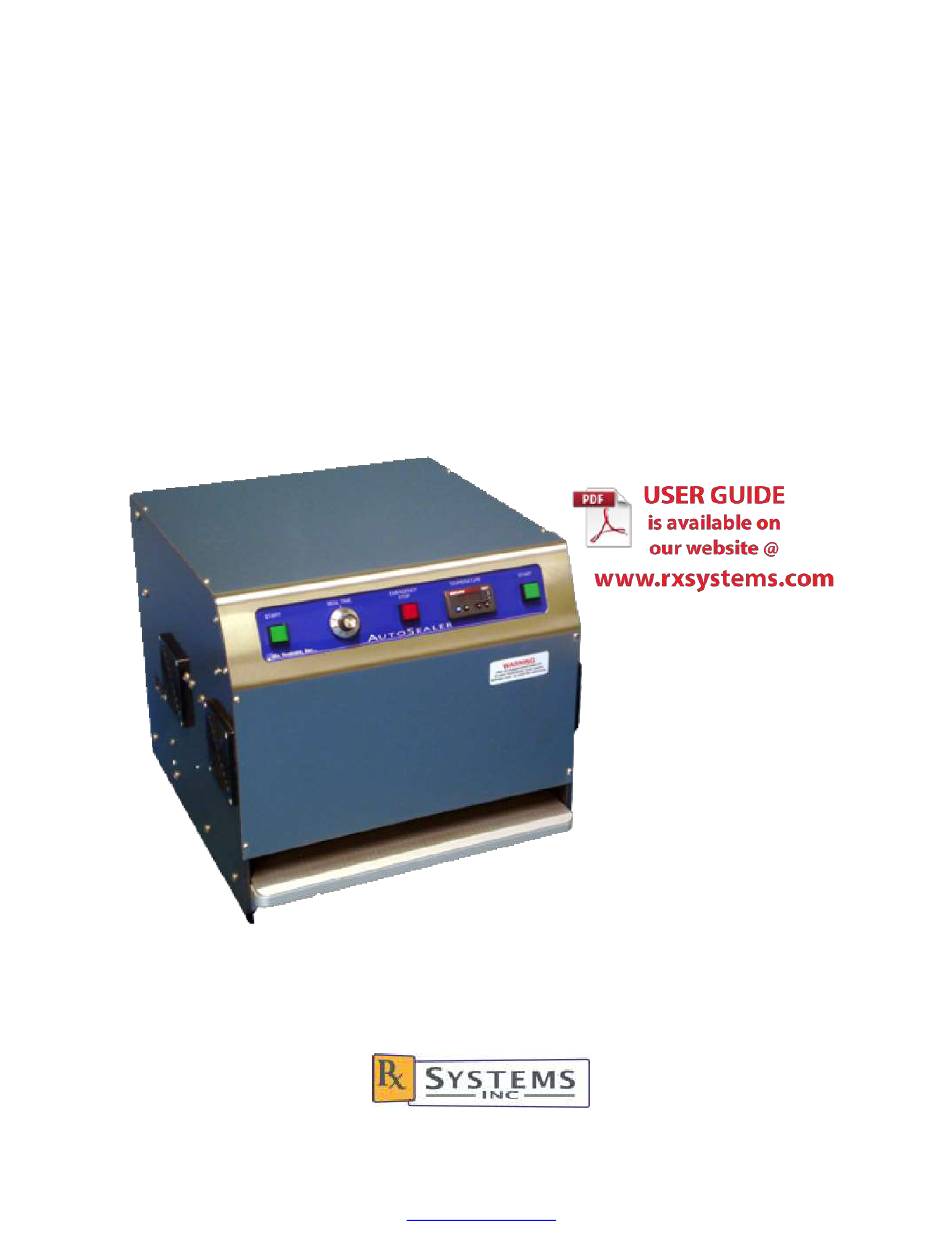

- Page 1 User Guide AutoSealer 1001 Operation & Service 121 Point West Blvd. St. Charles, MO 63301 1-800-922-9142 Fax 1-636-925-0041 tsr@rxsystems.com www.rxsystems.com...
-
Page 2: Table Of Contents
Table of Contents 1 Introduction ................................ 1 2 Specifications, Features & Accessories ..................... 2 2.1 Specifications ............................2 2.2 Features ..............................2 3 Identification of Controls ..........................3 4 Special Features ..............................4 5 Operating Instructions ............................ 5 5 Operating Instructions (con’t) ........................6 6 Related Products &... -
Page 3: Introduction
[User Guide AutoSealer 1001] [Rx Systems, Inc.] 1 Introduction Rx Systems, Inc. is very pleased you decided to join the growing number of AutoSealer owners. Operating the AutoSealer, you will appreciate the basic but efficient design of quality components. With proper care and maintenance you can expect years of trouble free service. -
Page 4: Specifications, Features & Accessories
[User Guide AutoSealer 1001] [Rx Systems, Inc.] 2 Specifications, Features 2.1 Specifications Overall Dimensions: Width: 14-1/2”” Depth: 16-1/2” w/o slide rails Height: 13-5/8”” Weight: 85 lbs. Electrical: 115 volt, 12 amp, 1380 watts, 60 Hz 2.2 Features Temperature, Time and Pressure are controlled for a consistent seal. -
Page 5: Identification Of Controls
[User Guide AutoSealer 1001] [Rx Systems, Inc.] 3 Identification of Controls Power Switch: Turn main power off and on. Timer: 1 to 10 second sealing times – set it once and forget it. Thermometer/Thermostat: Digital thermometer gives temperature readout. Thermostat maintains heat setting in one unit. -
Page 6: Special Features
[User Guide AutoSealer 1001] [Rx Systems, Inc.] 4 Special Features Cooling Fan The cooling fan will turn on at approximately 280 degrees and continue to cool your AutoSealer even when turned off until the temperature goes below 140 degrees. -
Page 7: Operating Instructions
[User Guide AutoSealer 1001] [Rx Systems, Inc.] 5 Operating Instructions The AutoSealer will automatically seal pill cards at a constant temperature and pressure over a set time – you only need to push two buttons to start the sealing cycle. But before you do, there are some one-time adjustments you need to make. -
Page 8: Operating Instructions (Con't)
[User Guide AutoSealer 1001] [Rx Systems, Inc.] 5 Operating Instructions (con’t.) 5. Time Setting: The AutoSealer can be set to seal packages at 1 to 10 seconds. Review the chart from the previous page to determine the appropriate time settings for your medication packaging. -
Page 9: Related Products & Accessories
[User Guide AutoSealer 1001] [Rx Systems, Inc.] 62 and 90 count versions also available. To see a full assortment of paddles, visit our website @ www.rxsystems.com/Products/Equipment/MedicationPackaging/SealingAccessories.aspx Page 7... -
Page 10: Maintenance
SHOULD NOT BE REMOVED UNTIL THE MACHINE IS COOL ABOUT HOUR AFTER BEING SHUT OFF Apply one or two drops of chain saw bar oil (sold by Rx Systems) or AND UNPLUGGED synthetic oil to the hole labeled in the middle of the cross bar. -
Page 11: Replacement Parts List
[User Guide AutoSealer 1001] [Rx Systems, Inc.] 8 Replacement Parts List We recommend using Rx Systems parts to insure reliable operation of equipment. Any use of non-RXS approved parts can void your equipment warranty. ITEM # DESCRIPTION 4500 Power Switch 4503A 4”... -
Page 12: Troubleshooting Guide
[User Guide AutoSealer 1001] [Rx Systems, Inc.] Page 10... -
Page 13: Two Year Warranty
10 Two Year Warranty (Two Year Warranty excludes Canada, Alaska, Hawaii and Puerto Rico) Rx Systems warrants its AutoSealer for two years from the original date of purchase. The warranty covers defects in material and workmanship. Within the applicable warranty period, the AutoSealer will be repaired or replaced at Rx Systems discretion. -
Page 14: Maintenance & Repair History
[User Guide AutoSealer 1001] [Rx Systems, Inc.] Page 12...
