- Page 1 INSTRUCTION MANUAL DISHWASHER...
-
Page 2: Table Of Contents
We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations. -
Page 3: Safety And Operating Instructions
FOR CHILDREN (LOCKS, DOORS, ETC.). THE APPLIANCE MUST THEN BE TAKEN TO A SORTED WASTE COLLECTION CENTRE. IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. THEN CALL IN A QUALIFIED TECHNICIAN. -
Page 4: Safety Instructions
PERFECTLY NORMAL AND DOES NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. -
Page 5: Installation Instructions
2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. -
Page 6: Drain Connection
Installation instructions DRAIN CONNECTION Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least 4 cm, or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose. -
Page 7: Description Of The Controls

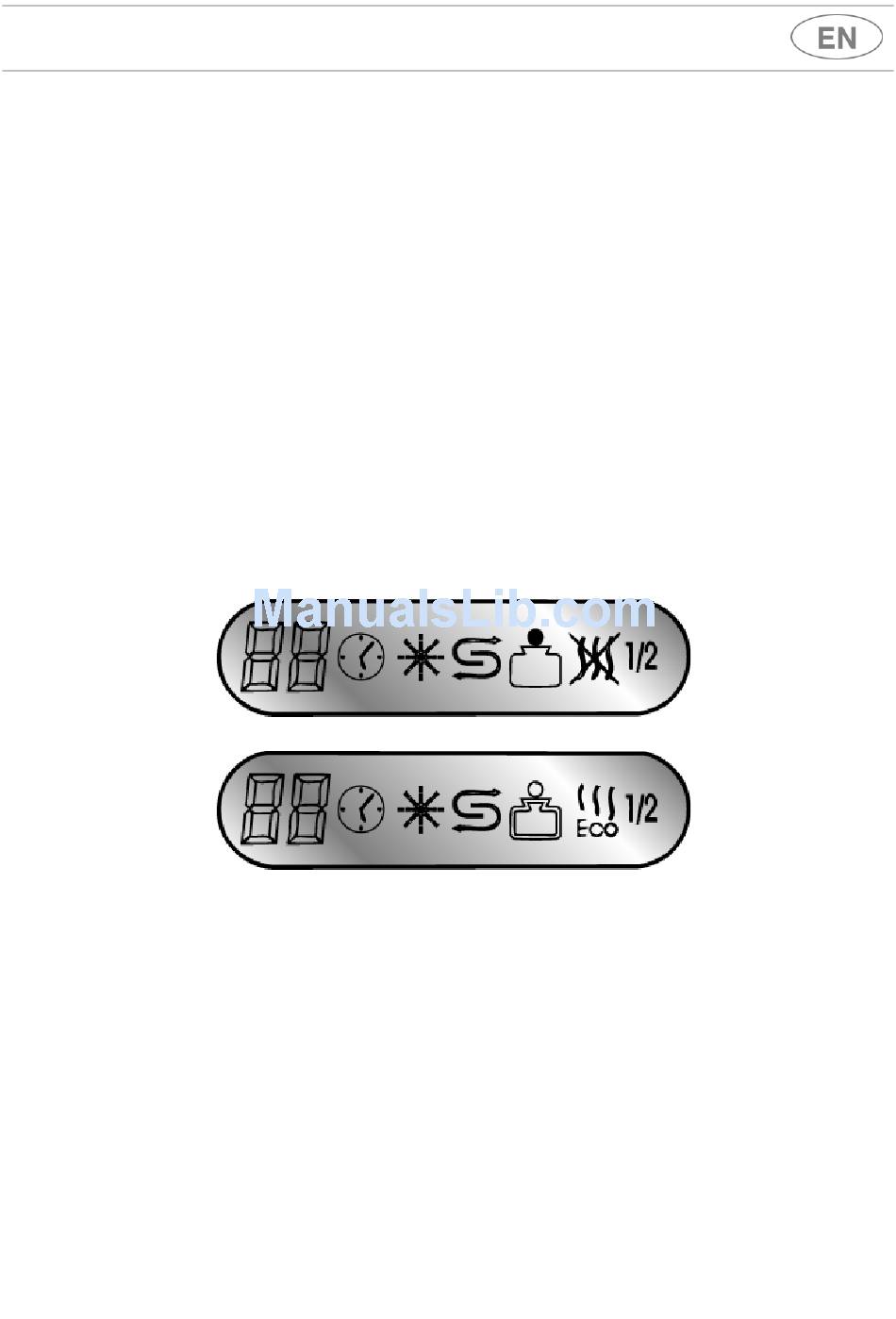

½ LOAD WASH SELECTION BUTTON (on some models only) INFORMATION DISPLAY Information display The dishwasher is equipped with a practical DISPLAY which provides information on the programmed dishwasher functions. CURRENT PROGRAM INFORMATION (remaining time indication and warnings for the most common problems) - Page 8 DELAYING THE PROGRAM The start of the washing program can be delayed from a minimum of 1 hour to a maximum of 9 hours; this allows you to operate the dishwasher at the time of day of your choice. When the DELAYED START button (3) is pressed, the DISPLAY (7) will show first the duration of the program set and then the number of hours (9,8, …1) of delay with which...
-
Page 9: Table Of Programs
1,35 temperatures, and the type and amount of dishes. 1,32 (3) With ECO DRY function selected. 1,05 If the dishwasher door is left open or 100' 1,25 properly INFORMATION DISPLAY (7) will 110' 1,45 signal that the washing program cannot be started. -
Page 10: Washing Programs
"3. Description of the controls", from which it is possible to carry out all the power switch- on, switch-off and programming operations. See enclosed program table for washing cycles and the procedure for starting the dishwasher and switching it on/off. -
Page 11: Sliding Facing Panel
Some dishwashers are equipped with a FRONT DISPLAY carrying the same information as the one on the top control panel. A system which moves the facing panel allows this display to be revealed when the dishwasher door is closed; to do this follow the instructions in the "MOVING THE FACING PANEL" point. -
Page 12: Moving The Facing Panel
• Once the facing panel has been lowered the door cannot be opened (see diagram); • Before opening the door of the dishwasher make sure that the facing panel is in the high • position ; Never lower the facing panel and close the door simultaneously; first close the door, then •... -
Page 13: Operating Instructions
Before replacing the cap, remove any salt residues from around the opening. When using the dishwasher for the first time, in addition to the salt it is also necessary to add •... -
Page 14: Electronic/Switch Setting
• SWITCH SETTING According to the machine model, the selector which acts on the adjustment may be located: inside the plastic locking ring located on the right-hand side, inside the dishwasher; • inside the water softener, just below the cap. -
Page 15: Using The Rinse Aid And Detergent Dispensers
ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position. -
Page 16: Adding The Detergent
Do not use detergents formulated for washing dishes by hand, because they produce a great • deal of foam and may negatively affect the operation of the dishwasher. Add the correct amount of detergent. An insufficient amount of detergent will result in a partial •... - Page 17 - not enough detergent released during the cycle, with poor washing results; - the detergent forms a solid block in the distributor and is released during the final rinse cycle. The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher. User instructions...
-
Page 18: General Warnings And Recommendations
User instructions General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading . There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account. -
Page 19: Using The Baskets
User instructions Using the baskets The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom. -
Page 20: Cutlery/Upper Basket
User instructions CUTLERY BASKET This varies in shape according to the model and features either a single compartment or separate compartments. The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm. -
Page 21: Adjusting The Upper Basket
ADJUSTING THE UPPER BASKET The upper basket can be adjusted in two positions, according to the user’s needs and according to the height of the dishes in the lower basket. Proceed as follows Pull-out version: pull out the right-hand basket guide; •... -
Page 22: Cleaning And Maintenance
General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge. -
Page 23: Cleaning The Filter Unit
• It is essential to thoroughly clean the filters according to the above instructions: the • dishwasher cannot function if the filters are clogged. Carefully replace the filters in their seats, to avoid damaging the wash pump. • PROLONGED DISUSE: Run the soak program twice in succession. -
Page 24: Troubleshooting Minor Problems
TROUBLESHOOTING MINOR PROBLEMS In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: the dishwasher is connected to the electrical power supply; • there is no power failure;... -
Page 25: Technical Data
6. Troubleshooting The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults. TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM FAULT The anti-flooding system (where present) has been tripped. E2 - E9 The water level limitation system has tripped. - Page 26 820- 820- 1/2” S N SF 3/4” 0,3-10 bar 0,3-10 bar 1,14 m 1,14 m 1,23 m 1,23 m 1,78 m 1,78 m 0,3-10 bar 0,3-10 bar 1,25 m 1,25 m 1,50 m 1,50 m 1,66 m 1,66 m Solo su alcuni modelli Certain models only Seulement sur certains modèles nur bei einige Modellen...
- Page 27 SUPERFICIE INTERNA SURFACE INTERNE INNER SURFACE INNENFLACHE LATO SUPERIORE BORD SUPERIEURE UPPER EDGE OBERKANTE Solo su alcuni modelli - Certain models only Seulement sur certains modèles - nur bei einige Modellen Sólo en algunos modelos - alleen indien van toepassing Regolazione vite tensione molle (11) - Copertura foto con tappo in dotazione (12) Door spring Adjustement device (11) - Covering of hole using cap provided (12) Réglage des ressorts de la porte (11) - Couverture du trou avec le bouchon fourni (12)
- Page 28 Questo blocco di lavaggio è dotato di un dispositivo che permette di regolare la planarità dell’apparecchio una volta posizionato. Tirare il cassetto basso di destra estraendolo completamente e sollevandolo verso l’alto come un normale cassetto (Fig.1); Togliere lo zoccolo inferiore sfilandolo verso l’alto e successivamente verso l’esterno (Fig.2); Con una chiave a tubo di 10 ruotare i dadi esagonali, illustrati nella figura a lato, fino ad ottenere la planarità...
- Page 29 Diese Wascheinheit verfügt über eine Einrichtung für die waagrechte Ausrichtung des Geräts nach dem Aufstellen. Die untere rechte Schublade herausnehmen. Man muss sie hierzu wie bei einer gewöhnlichen Schublade ganz herausziehen und anheben (Abb. 1). Das untere Sockelblech entfernen. Man muss es hierzu nach oben und dann nach außen ziehen (Abb.
