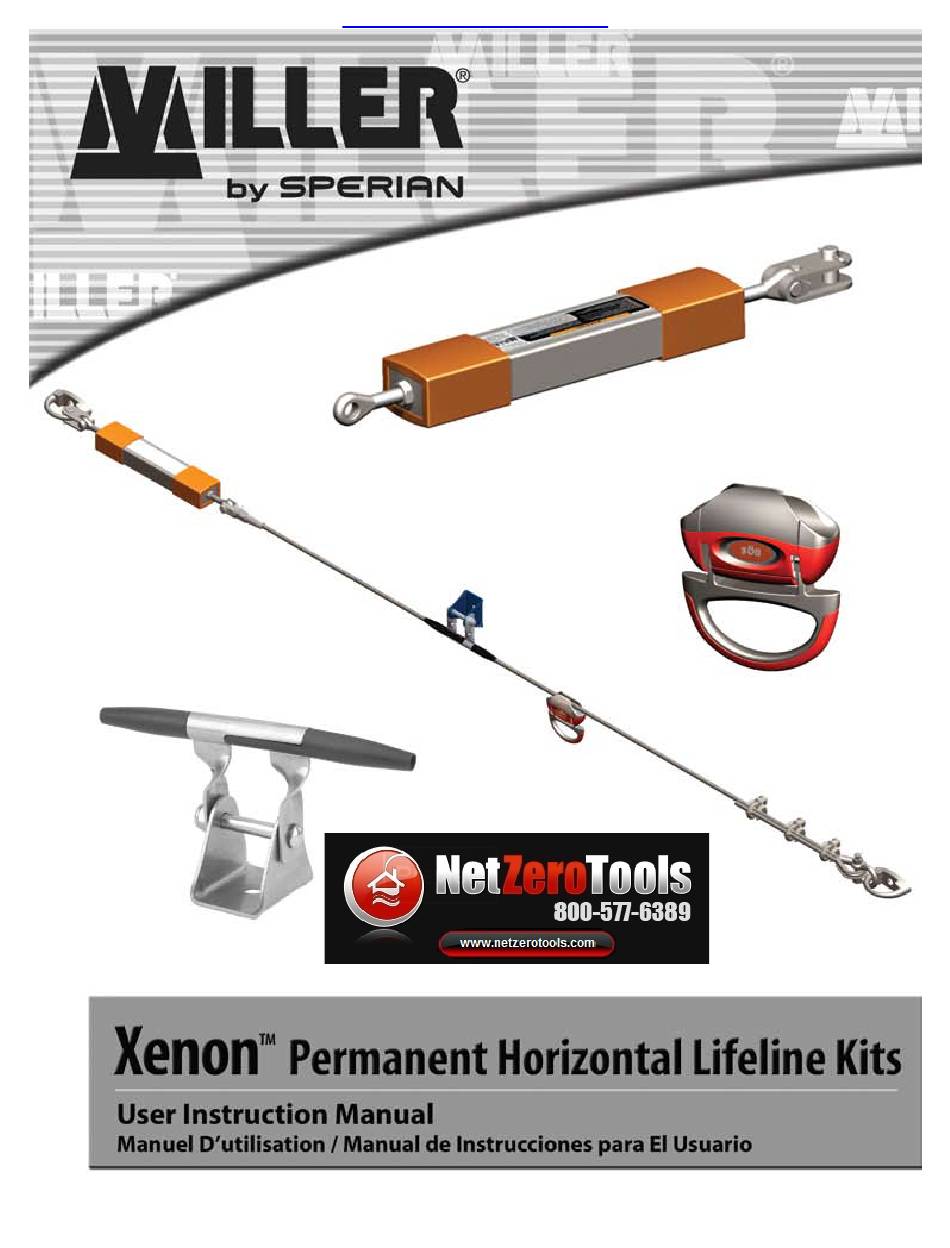

- Page 1 www.netzerotools.com I283 MFP9720152 www.netzerotools.com...
-
Page 2: Table Of Contents
www.netzerotools.com Table of Contents 1.0 Purpose........................... 3 2.0 General Requirements, Warnings and Limitations............3-4 2.1 General Fall Protection Requirements 2.2 System Warnings and Limitations 3.0 Xenon Kit Diagrams and Component Descriptions............5-6 4.0 Installation of Xenon Horizontal Lifeline Kits..............7-11 4.1 Installation of D-Bolt Anchor to Beam or Structure 4.2 Installation of Universal Intermediate Brackets 4.3 Installation of Horizontal Lifeline Assembly... -
Page 3: Purpose
Thank you for your purchase of Miller Fall Protection equipment. Miller brand products are produced to meet the highest standards of quality at our ISO 9001 certified facility. Miller Fall Protection equipment will provide you with years of use when cared for properly. -
Page 4: System Warnings And Limitations
2.2 System Warnings and Limitations System Compatibility System Requirements Xenon Kits are designed for use with Miller approved com- The Horizontal Lifeline System shall be designed, installed ponents. Substitution or replacement with non-approved and used, under the supervision of a qualified person,... -
Page 5: Xenon Kit Diagrams And Component Descriptions
www.netzerotools.com U s er Ins tru cti on s - E ngl i sh 3.0 Xenon Kit Diagrams and Component Descriptions D-Bolt Anchor Single Shock Absorber Xenon Kit Shock Absorber Swageless Cable Fitting Intermediate Support Bracket D-Bolt Anchor Thimble D-Bolt Anchor Cable Clips Anchor Shackle Shock Absorber... - Page 6 www.netzerotools.com U s er Ins tru cti on s - E ngl i sh Part No. Component Name Qty. Description System Kit Components 5/8” (16mm) stainless steel D-anchor with hex bolt (5/8” - 11 UNC x 5”), hex nut and split lockwasher, rated 416SS D-Bolt Anchor to 10,000 lbs.
-
Page 7: Installation Of Xenon Horizontal Lifeline Kits
Clearance). • If installing the system off-the-ground, a personal fall arrest system including an anchorage connector, such as a Miller beam anchor, must be used. Once a D-bolt anchor has been completely installed and secured to the beam or structure given the required specifications, a worker may tie-off onto the anchor. -
Page 8: Installation Of Universal Intermediate Brackets
www.netzerotools.com U s er Ins tru cti on s - E ngl i sh 4.2 Installation of Universal Intermediate Brackets (Required for Multiple-Span Systems only) The intermediate brackets are designed to allow free-floating or fixed positioning. Most often free-floating positioning is desired. -
Page 9: Installation Of Horizontal Lifeline Assembly
www.netzerotools.com U s er Ins tru cti on s - E ngl i sh 4.3 Installation of Horizontal Lifeline Assembly WARNING: Always wear gloves when inspecting or installing a cable lifeline. **Procedures A through C apply to the assembly required on one end of the lifeline. A. - Page 10 www.netzerotools.com U s er Ins tru cti on s - E ngl i sh C. Swageless Cable Fitting to Inline Shock Absorber (see Figure 5) 1. Remove cotter pin and bolt from jaw anchor head of cable fitting. Fig. 5 2.
-
Page 11: Tensioning Horizontal Lifeline
www.netzerotools.com U s er Ins tru cti on s - E ngl i sh 4.4 Tensioning Horizontal Lifeline IMPORTANT: It is essential that the lifeline be properly tensioned before use. Failure to do so will affect fall clearance re- quirements and the potential fall forces which may be imposed upon the worker and the system. Tension Indicator 1. -
Page 12: Operation/Use Of Xenon Shuttle On The Horizontal Lifeline
www.netzerotools.com U s er Ins tru cti on s - E ngl i sh 5.0 Operation/Use of Xenon Shuttle on the Horizontal Lifeline Jaws 1. Inspect all equipment before use according to the manufac- Press and hold turer’s instructions. button 2. -
Page 13: Fall Clearance
20’-8” 21’-8” 22'-8” variations to the horizontal lifeline system (5.58m) (5.88m) (6.19m) (6.49m) (5.99m) (6.3m) (6.6m) (6.91m) (128m) (128m) must be approved by Miller Fall Protection. 18’-4½” 19’-4½” 20’-4½” 21’-4½” 19’-9” 20’-9” 21’-9” 22’-9” (5.6m) (5.91m) (6.21m) (6.52m) (6.02m) (6.32m) (6.63m) - Page 14 12’-8” (3.44m) (3.86m) (9.1m) Fall clearance calculations are based on the length and 11’-6½” 12’-10½” deflection of the lifeline, a 3-1/2 ft. (1.07m) maximum Miller (3.52m) (3.93m) (18.2m) SRL/fall limiter fall arrest distance, and the number of workers 11’-9” 13’-1”...
-
Page 15: Training
Training is an integral part of our Total Solution in fall protection, since no fall protection equipment – regardless of how ef- fective – can save an employee who is not trained in its use. To meet this crucial requirement, Miller Training provides the knowledge and skills necessary to achieve a safe, more productive work environment. -
Page 16: Inspection And Maintenance Log
www.netzerotools.com Inspection and Maintenance Log Registre D'inspection et D'entretien Registro de Inspección y Mantenimiento DATE OF MANUFACTURE:_________________________________________________ DATE DE FABRICATION / FECHA DE FABRICACIÓN MODEL NUMBER:________________________________________________________ NUMÉRO DE MODÈLE / NÚM. DE MODELO DATE PURCHASED:______________________________________________________ DATE D’ACHAT / FECHA DE COMPRA INSPECTION MAINTENANCE CORRECTIVE... -
Page 17: Warranty
Les produits de protection contre les chutes Miller sont soumis à des essais pour vérifier qu’ils résistent à une usure normale; ils ne sont cependant pas indestructibles et peuvent s’endommager en cas de mauvaise utilisation. Notre garantie limitée à... - Page 18 www.netzerotools.com www.netzerotools.com...
- Page 19 Miller X00030 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00060 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00090 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00120 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00150 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00180 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00210 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00240 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00270 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00300 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00330 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00360 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00390 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00420 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00450 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00480 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00510 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00545 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller X00585 Xenon Permanent Horizontal Life Line Kit Fall Protection Miller 1005709 Xenon Automatic Pass Through Shuttle Fall Protection www.netzerotools.com...
