cobas b 101 Quick Reference Manual page 4

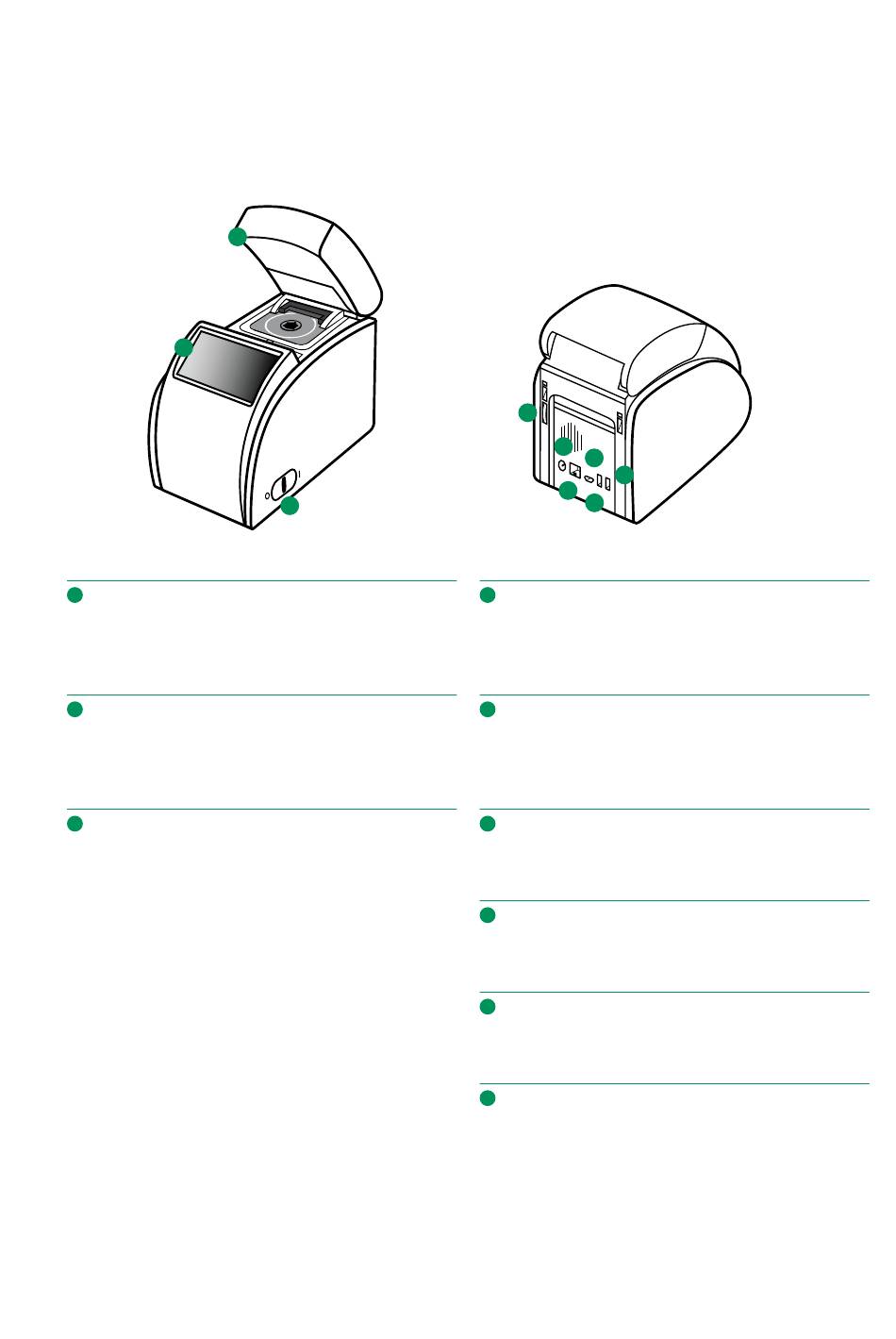

cobas b 101 system
1
2
Lid. Use the "Open" button on the screen e.g. to
1
insert a test disc for measurement. Keep this flap
closed during measurement.
Touchscreen. Shows buttons, icons, information, and
2
test results. To use a function, tap the button on the
screen lightly.
Power on/off switch.
3
3
4
5
7
9
6
8
Lid button. Use this button to open the flap when the
4
instrument is switched off.
DC IN 12 V terminal. Connect the power cable from
5
the power adapter to supply 12 V DC power to the
instrument.
BUH terminal. Connection to a network through a
6
Base Unit Hub.
USB 1 terminal. Connection to a personal computer.
7
Bar code scanner terminal.
8
USB 2 terminal. Connection to USB memory stick or a
9
printer.
