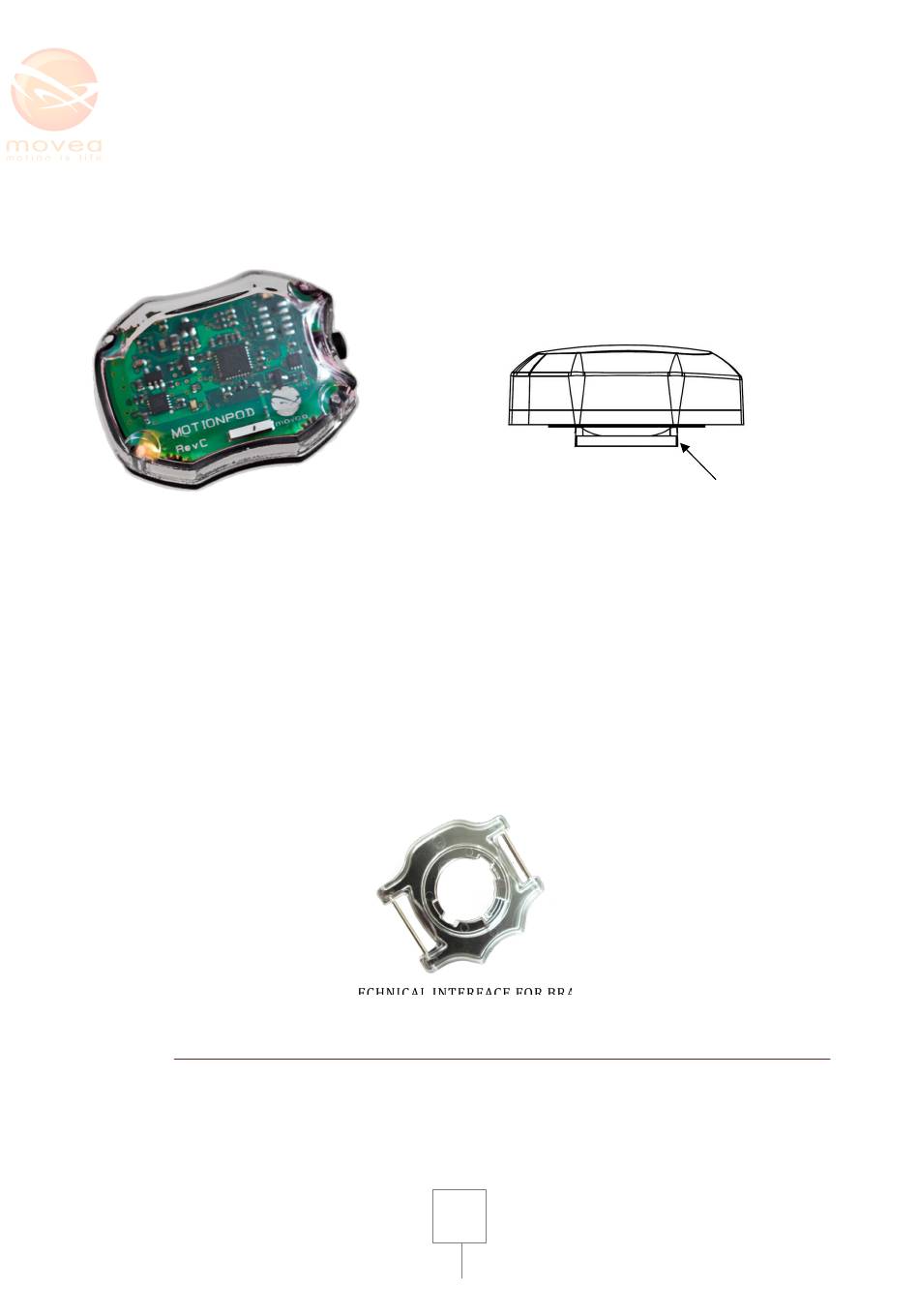

Photo of MotionPod™
Side view of MPOD scheme
Mechanical fixing base
FIGURE 3 : MOTIONPOD™
On the top of MPOD you can see the electronic components with an imprinted name and logo of the
manufacturer (Movea,), the brand name of the product (MotionPod). The sensor button indicates
the exact orientation of the MPOD when positioning it properly on the body. Please pay attention to
these elements as they are useful to establish the MPOD correctly in the application that is provided
with your system.
From a side view (see Figure 3, on the right), you can see a Black bottom cover of the MPOD. This
part allows fixing the MPOD on any kind of supporting facet designed to accommodate it. It can be
the charging box (see below) or the mechanical interface for bracelet or strap.
Figure 1 summarizes the first visual elements on the MPOD.
FIGURE 4: MPOD MECHNICAL INTERFACE FOR BRACELET OR STRAP

2. MOTIONCONTROLLER™

The CTRLER is a white case with a surface identical to that of a credit card and approximately 2cm
thick (see Figure 5). On the upper facet you can see an imprinted logo of Movea, and light indicator
inscriptions (see below for their significance). At the back of the Motion controller a sticker
imprinted Controller™ distinguishes it from the Charger who has the same casing.
