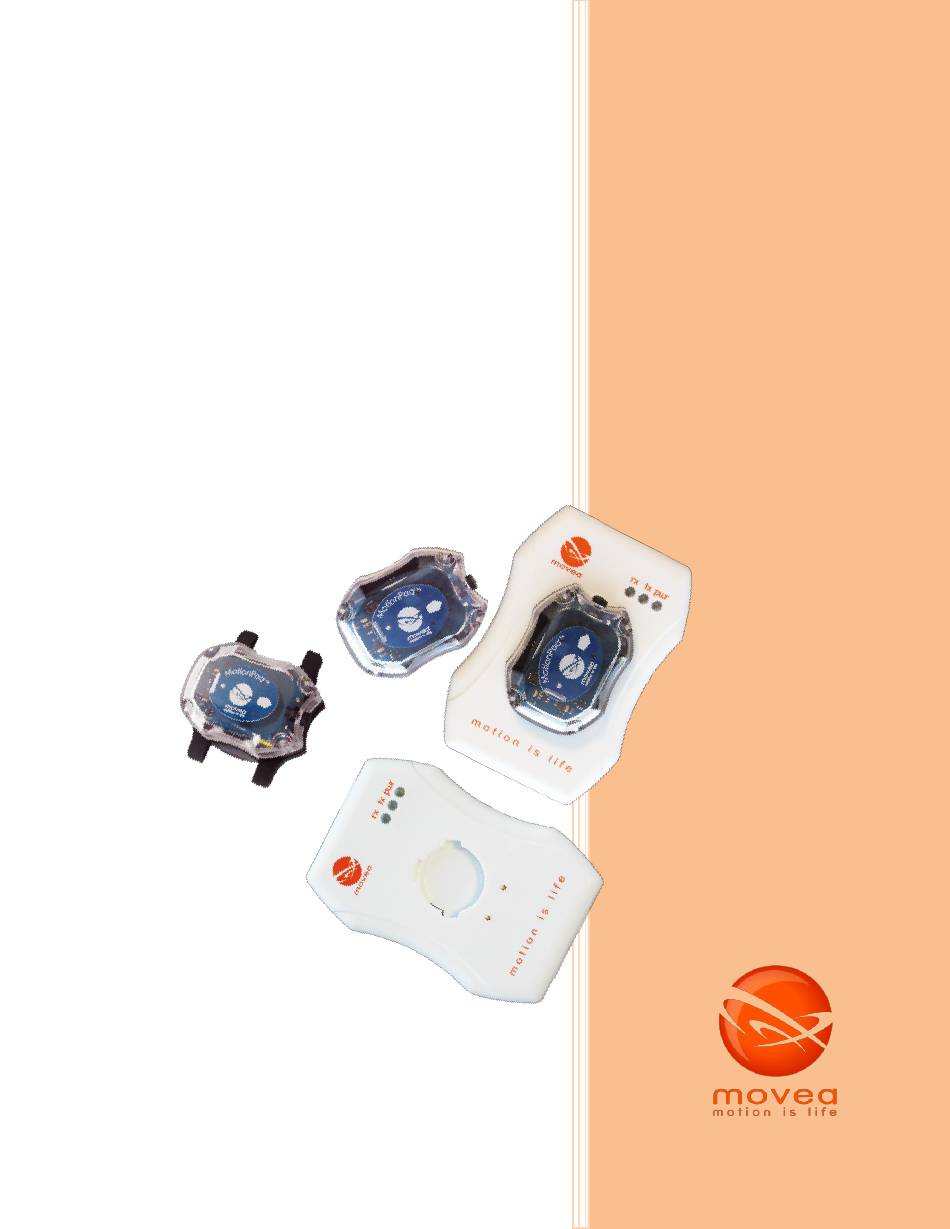

- Page 1 EN-2008 MotionPod™ Users’ Guide Copyright © 2008-2009 Movea. All rights reserved...
-
Page 2: Table Of Contents
MOTIONPOD™ ................................7 The MotionController™ ............................8 VI. Usage..................................... 9 Recharging your MotionPod ..........................9 How to switch the MotionPod on and off ...................... 10 How to wear the MOTIONPOD™........................11 VII. Precautions ..................................11 Using environments ............................... 11 Characteristics and environmental conditions ................... 13 VIII. -
Page 3: Terminology
TERMINOLOGY Code Name Description MPOD MotionPod, designates the motion sensing case MOTIONCONTROLLER™ MotionPod Controller or charger/data receiver, a MPOD device. Designates data receiving and/or recharging case which connects on the computer via USB port. PRODUCT DIAGRAM Finger grips Green LED... -
Page 4: Safety Rules
EN standard 60601-1. MOTIONPOD™ is the only part in contact with the patient, so by no means they’re to be in contact with the MOTIONCONTROLLER™ or the computer during use. Patients are to be held at 1,20m to 1,60m away from this equipment. - Page 5 It is highly recommended not to connect any peripherals (modem, printers…) other than the MOTIONCONTROLLER™ on the computer during the use of the system. The MOTIONPOD™ has a Li Ion battery and therefore must be recycled according to current standards. It must be returned to...
-
Page 6: Introduction
The user of MotionPod must have red and understood this notice. The MOTIONPOD™ System is provided with software that must be the only software solution to be used with this product. -
Page 7: Get Familiar With Motionpod
Mechanical fixing base FIGURE 3 : MOTIONPOD™ On the top of MOTIONPOD™ you can see an ellipse shaped facet: it is the antenna with an imprinted name and logo of the manufacturer (Movea, Motion is Life), the brand name of the product... -
Page 8: The Motioncontroller
MOTIONPOD™ correctly in the application that is provided with your system. From a side view (see Figure 3, on the right), you can see a Black bottom cover of the MOTIONPOD™. This part allows fixing the MOTIONPOD™ on any kind of supporting facet designed to accommodate it. -
Page 9: Usage
Put the MOTIONCONTROLLER™ horizontally on a table, facet where the logo is imprinted upwards. You can see the cavity where you can clip the MotionPod in. Insert the MOTIONPOD™ by its Black bottom cover directly in the cavity. The button of the MOTIONPOD™ must be pointing to the Logo. -
Page 10: How To Switch The Motionpod On And Off
Theoretically, charging duration is 3 hours. When the MOTIONPOD™ is recharged after a very long period of no use, it is possible that the orange light indicator takes a few minutes before switching on. -
Page 11: How To Wear The Motionpod
MOTIONPOD™ sensor and the MOTIONCONTROLLER™. 3. HOW TO WEAR THE MOTIONPOD™ To fix MOTIONPOD™ on the patient, use solutions provided by the product supplier. Be sure not to tighten up excessively. The MOTIONPOD™ is provided with a mechanical interface to attach bracelets, belts or straps. - Page 12 MOTIONPOD™ should be used far from motorized chairs or beds. o Only small magnets are accepted in the same room (i.e. whiteboard magnet), but must be kept far from the MOTIONPOD™ (>50 cm), as they might cause a serious decrease in the systems accuracy.
-
Page 13: Characteristics And Environmental Conditions
MOTIONPOD™ transmits data to the MOTIONCONTROLLER™ via radio signal. The transmitted signal is a Bluetooth band. MOTIONPOD™ is tested in CEM. However, band obstruction caused by the presence of other radio operating devices can lead to interferences with MOTIONPOD™. Do not to use the MOTIONPOD™ when other radio operating devices are running and are priority for patients. -
Page 14: Calibration
(the MOTIONPOD™ “rolls” like a wheel) o other additional random rotations can be made Be sure to maintain the MOTIONPOD™ in the same position, in a sphere of 5cm of diameter. Carry out slow movements without acceleration, nor shock... -
Page 15: Cleaning
“Glass polycarbonate “” (the Black bottom cover, and mechanical interface). The button on MOTIONPOD™ is in NBR. For cleaning or disinfection, use products listed below or other products compatible with these materials. Cleaning products must be compatible with Polycarbonate. -
Page 16: Signs And Labels
MAINTENANCE The MOTIONPOD™ system does not require any particular maintenance other than cleaning after each use. Manufacturer calibration is carried out at the time of manufacture of the MOTIONPOD™. Follow instructions on section VIII for re-calibration. The MOTIONPOD™ should not be opened. Battery replacement operation should... -
Page 17: What To Do In Case Of System Breakdown
Rerun the software software lost all contact with his reception peripheral. It could be an unfortunate disconnection of the MOTIONCONTROLLER™. The MOTIONPOD™ system doesn’t need any particular maintenance (other than cleaning) Company address: MOVEA, MINATEC 7 Parvis Louis Neel 38040 Grenoble Cedex... - Page 18 Regulatory Information Notice to Users: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 19 EN-2008 MotionPod™ Users’ Guide...
- Page 20 disconnect the equipment. Users should ensure, for their own protection, that the electrical ground connectors of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This presentation may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority or electrician, as appropriate...
