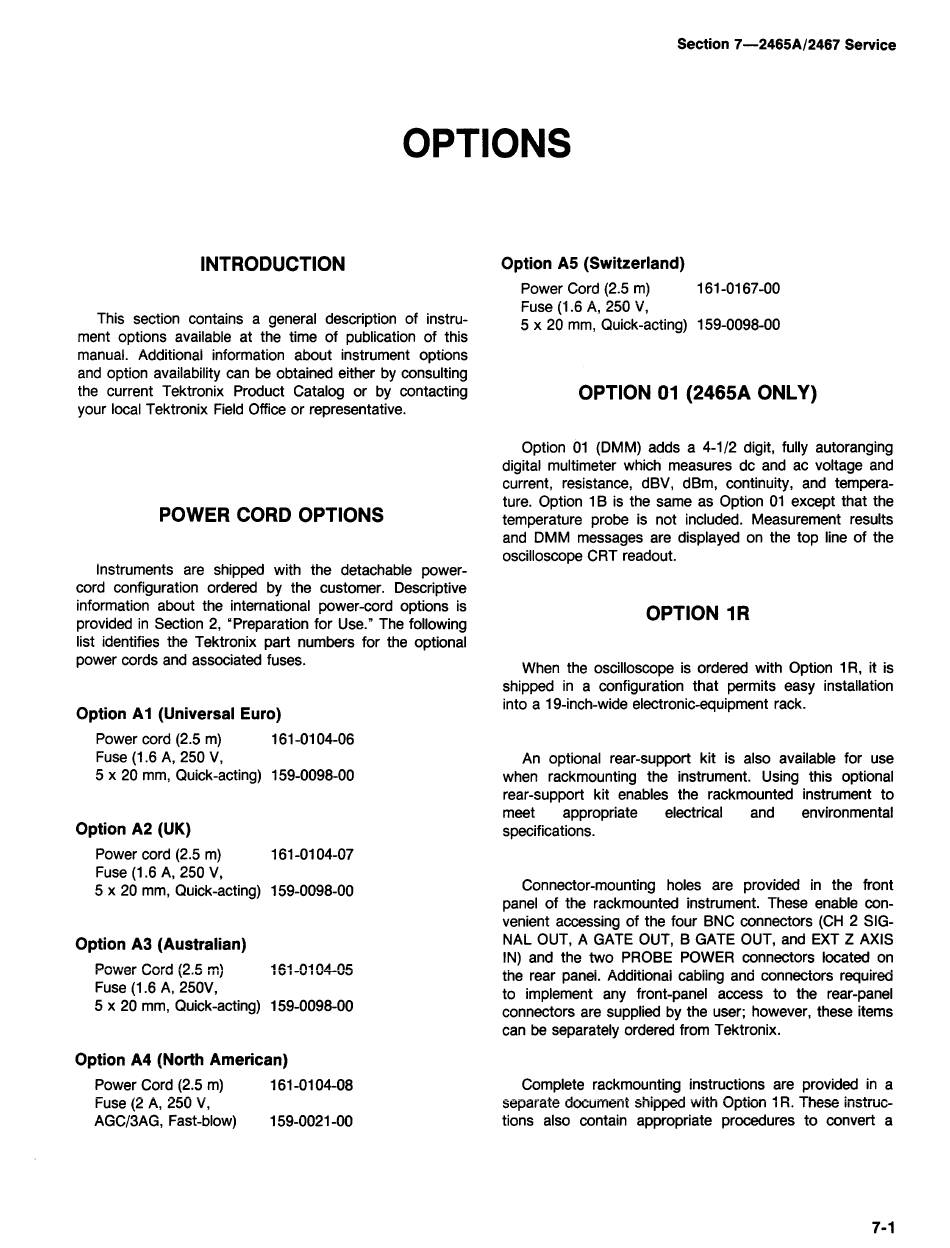

Section 7-2465A/2467 Service
OPTIONS
INTRODUCTION
This section contains a general description of instru-
ment options available at the time of publication of this
manual. Additional information about instrument options
and option availability can be obtained either by consulting
the current Tektronix Product Catalog or by contacting
your local Tektronix Field Office or representative.
POWER CORD OPTIONS
Instruments are shipped with the detachable power-
cord configuration ordered by the customer. Descriptive
information about the international power-cord options is
provided in Section 2, "Preparation for Use." The following
list identifies the Tektronix part numbers for the optional
power cords and associated fuses.
Option A1 (Universal Euro)
Power cord (2.5 m) 161-0104-06
Fuse (1.6 A, 250 V,
5 x 20 mm, Quick-acting) 159-0098-00
Option A2 (UK)
Power cord (2.5 m) 161-0104-07
Fuse (1.6 A, 250 V,
5 x 20 mm, Quick-acting) 159-0098-00
Option A3 (Australian)
Power Cord (2.5 m) 161-0104-05
Fuse (1.6 A, 250V,
5 x 20 mm, Quick-acting) 159-0098-00
Option A4 (North American)
Power Cord (2.5 m)
Fuse (2 A, 250 V,
AGC/3AG, Fast-blow)
161-0104-08
159-0021-00
Option AS (Switzerland)
Power Cord (2.5 m) 161-0167-00
Fuse (1.6 A, 250 V,
5 x 20 mm, Quick-acting) 159-0098-00
OPTION 01 (2465A ONLY)
Option 01 (DMM) adds a 4-1/2 digit, fully autoranging
digital multimeter which measures de and ac voltage and
current, resistance, dBV, dBm, continuity, and tempera-
ture. Option 1 B is the same as Option 01 except that the
temperature probe is not included. Measurement results
and DMM messages are displayed on the top line of the
oscilloscope CRT readout.
OPTION 1R
When the oscilloscope is ordered with Option 1 R, it is
shipped in a configuration that permits easy installation
into a 19-inch-wide electronic-equipment rack.
An optional rear-support kit is also available for use
when rackmounting the instrument. Using this optional
rear-support kit enables the rackmounted instrument to
meet appropriate electrical and environmental
specifications.
Connector-mounting holes are provided in the front
panel of the rackmounted instrument. These enable con-
venient accessing of the four BNC connectors (CH 2 SIG-
NAL OUT, A GATE OUT, B GATE OUT, and EXT Z AXIS
IN) and the two PROBE POWER connectors located on
the rear panei. Additionai cabiing and connectors required
to implement any front-panel access to the rear-panel
connectors are supplied by the user; however, these items
can be separately ordered from Tektronix.
Complete rackmounting instructions are provided in a
separate document shipped with Option 1 R. These instruc-
tions also contain appropriate procedures to convert a
7-1
