Techsage Spinjet 6200 Operator's Manual

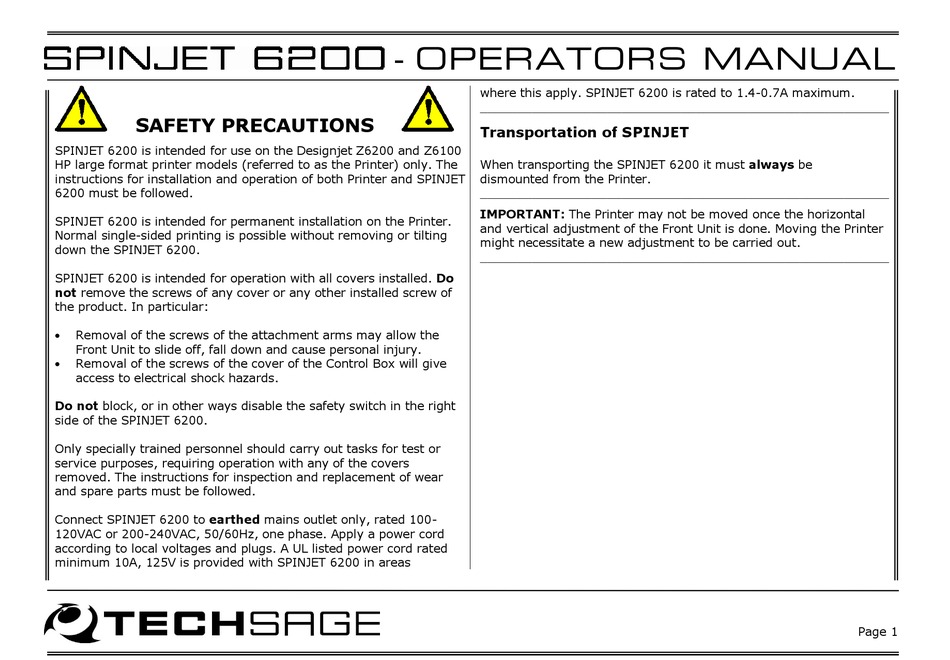

SAFETY PRECAUTIONS
SPINJET 6200 is intended for use on the Designjet Z6200 and Z6100
HP large format printer models (referred to as the Printer) only. The
instructions for installation and operation of both Printer and SPINJET
6200 must be followed.
SPINJET 6200 is intended for permanent installation on the Printer.
Normal single-sided printing is possible without removing or tilting
down the SPINJET 6200.
SPINJET 6200 is intended for operation with all covers installed. Do
not remove the screws of any cover or any other installed screw of
the product. In particular:
 Removal of the screws of the attachment arms may allow the
Front Unit to slide off, fall down and cause personal injury.
 Removal of the screws of the cover of the Control Box will give
access to electrical shock hazards.
Do not block, or in other ways disable the safety switch in the right
side of the SPINJET 6200.
Only specially trained personnel should carry out tasks for test or
service purposes, requiring operation with any of the covers
removed. The instructions for inspection and replacement of wear
and spare parts must be followed.
Connect SPINJET 6200 to earthed mains outlet only, rated 100-
120VAC or 200-240VAC, 50/60Hz, one phase. Apply a power cord
according to local voltages and plugs. A UL listed power cord rated
minimum 10A, 125V is provided with SPINJET 6200 in areas
- OPERATORS MANUAL
where this apply. SPINJET 6200 is rated to 1.4-0.7A maximum.
_______________________________________________________
Transportation of SPINJET
When transporting the SPINJET 6200 it must always be
dismounted from the Printer.
_______________________________________________________
IMPORTANT: The Printer may not be moved once the horizontal
and vertical adjustment of the Front Unit is done. Moving the Printer
might necessitate a new adjustment to be carried out.
_______________________________________________________
Page 1
