Honeywell MN7505 Installation Instructions

Non-spring return direct coupled actuators (dca)
Hide thumbs

Advertisement

Quick Links

Non-Spring Return
Direct Coupled Actuators (DCA)
MN6105, MN6110, MN7505, MN7510
DISCONNECT POWER BEFORE INSTALLATION
IP54
IP54
1
2
IP54
IP54
M25325
4
2
3
M25201
1
3
4
2
M25202
INSTALLATION INSTRUCTIONS
MIN. 1-3/4 IN.
(41 MM)
90°
ANGLE
1
1
2
M13651
2
M13649
62-0224-05

Advertisement

loading

  Related Manuals for Honeywell MN7505

  Summary of Contents for Honeywell MN7505

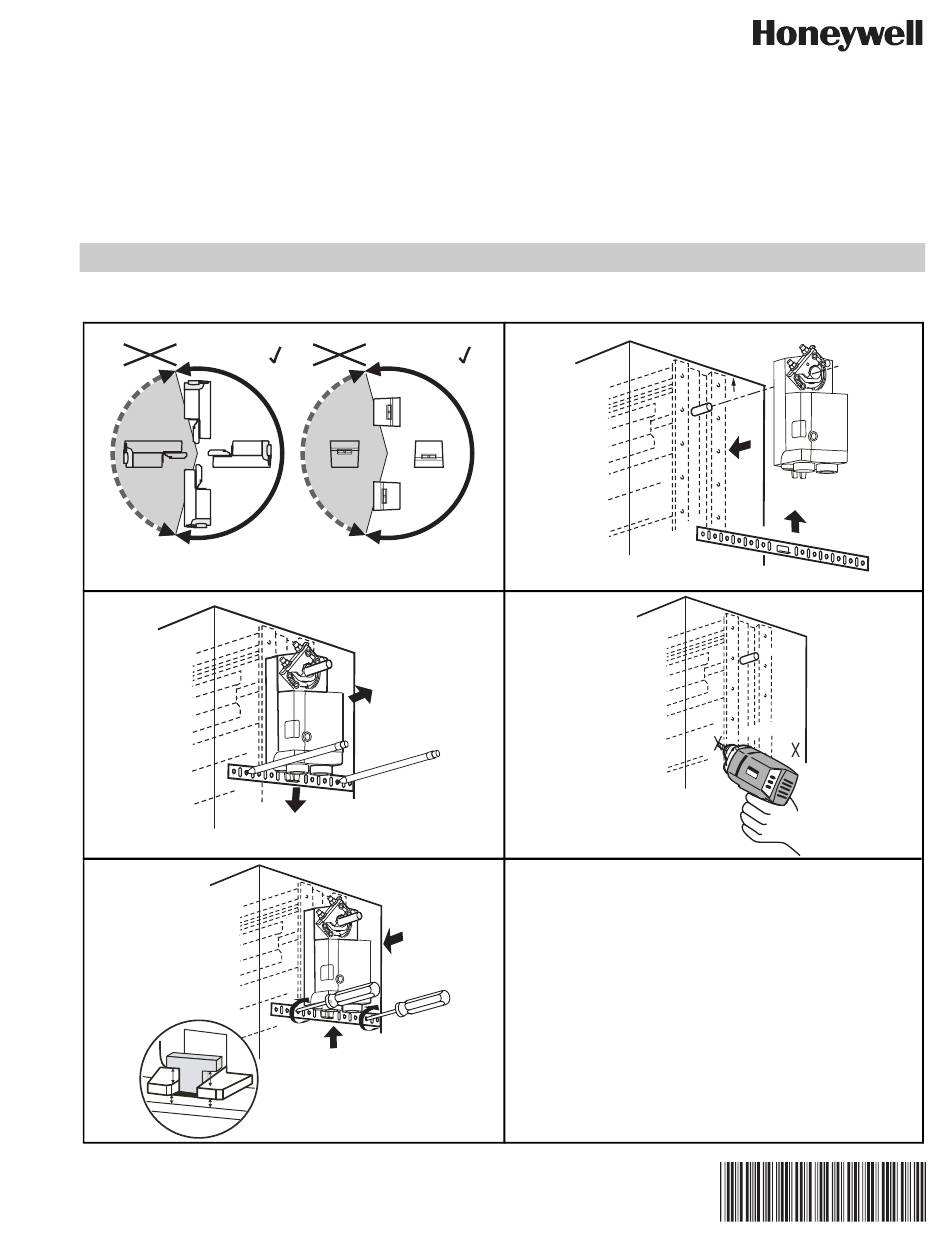

  • Page 1 Non-Spring Return Direct Coupled Actuators (DCA) MN6105, MN6110, MN7505, MN7510 INSTALLATION INSTRUCTIONS DISCONNECT POWER BEFORE INSTALLATION IP54 IP54 IP54 IP54 MIN. 1-3/4 IN. (41 MM) 90° ANGLE M25325 M13649 M25201 M13651 M25202 62-0224-05...
  • Page 2 NON-SPRING RETURN DIRECT COUPLED ACTUATORS (DCA) MOUNTING On counterclockwise (CCW) or clockwise (CW) closing damper. CCW-CLOSING DAMPER CW-CLOSING DAMPER OPTIONAL STEP 8 MM 8 MM 5.5°, 11°, 16.5°, 22°... 8 Nm 8 Nm 3.0 TO 3.5 Nm M25205 M25204 M25203 For models without cables 7/32 (5) REMOVABLE...
  • Page 3 NON-SPRING RETURN DIRECT COUPLED ACTUATORS (DCA) WIRING Typical Wiring Without Cables MN7505, MN7510 MN7505, MN7510 FLOATING: DIR MODULATING: 0[2]... 10 V, 10... 0[2] V ACTUATOR ACTUATOR 24 VAC 24 VAC OR + 0[2]... 10 V OR + OR N/A POS 50% 0[2]...
  • Page 4 Automation and Control Solutions Honeywell International Inc. 1985 Douglas Drive North Golden Valley, MN 55422 Honeywell Limited-Honeywell Limitée 35 Dynamic Drive ® U.S. Registered Trademark Toronto, Ontario M1V 4Z9 © 2010 Honeywell International Inc. 62-0224—05 M.S. Rev. 10-10 customer.honeywell.com Printed in U.S.A.
