Harvestec 630 Operator's Manual

Corn head
Hide thumbs
Table of Contents

Advertisement

Quick Links

2003
1.321.219

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 630 and is the answer not in the manual?

Questions and answers

Related Manuals for Harvestec 630

Summary of Contents for Harvestec 630

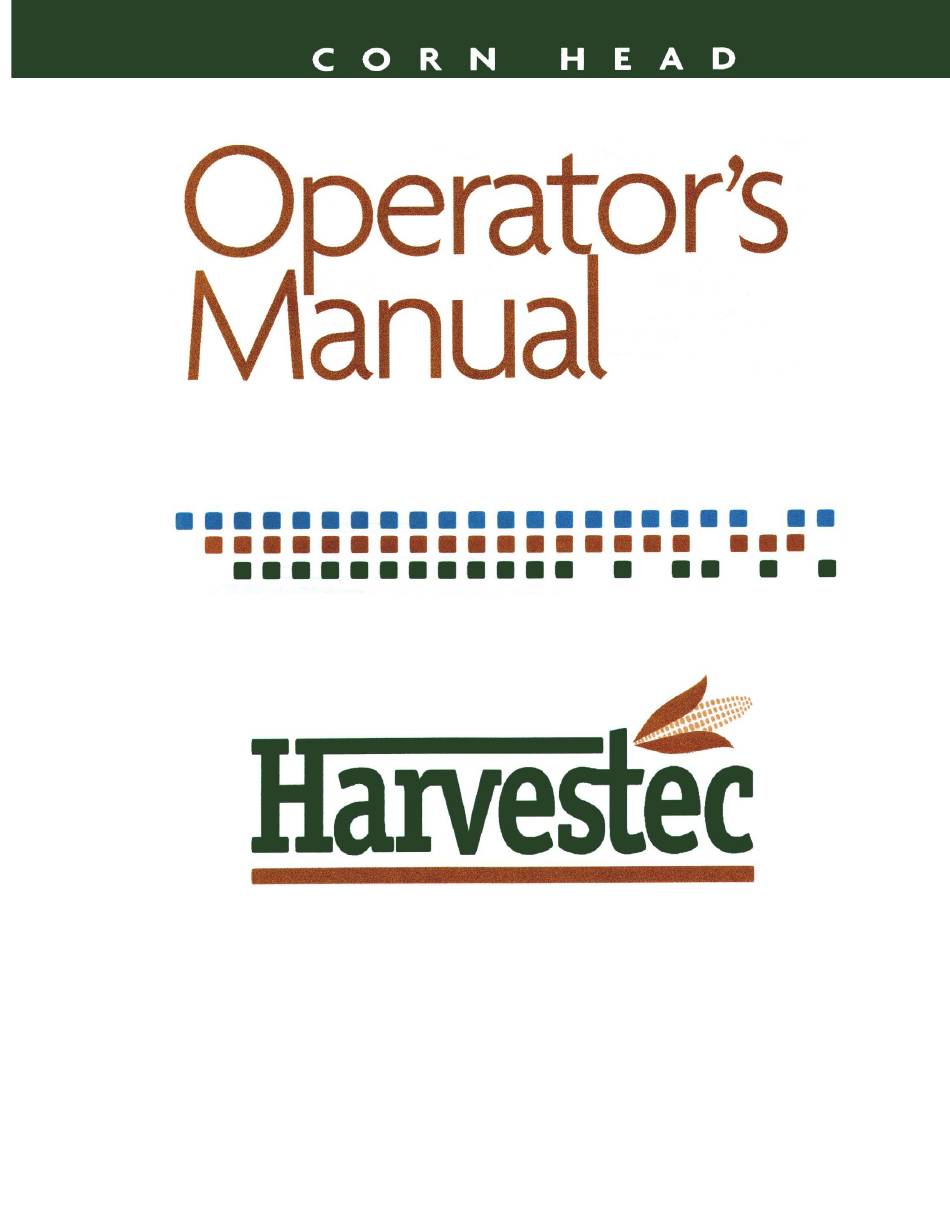

  • Page 1 2003 1.321.219...
  • Page 2 INTRODUCTION Dear Customer, The following is some useful information provided to help ensure efficient and safe operation of this corn head. Read this manual carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage. This manual should be considered a permanent part of your machine and should remain with the machine when you sell it.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS SAFETY ............................ 4 IDENTIFICATION, TECHNICAL DATA ................10 1. Identification ..........................10 2. Technical data ..........................11 SHIPPING CONDITIONS ....................12 MOUNTING THE CORN HEAD ON THE COMBINE ............. 14 RUN-IN PROCEDURE ......................21 SETUP PROCEDURE AND ADJUSTMENT OF THE CORN HEAD ......22 HARVESTING ........................

  • Page 4: Safety

    SAFETY SAFETY This is the safety-alert symbol. When you see this symbol on your machine or in this manual carefully read the message that follows, and be alert to the possibility of personal injury or death. Follow recommended precautions and safe operating procedures. UNDERSTAND SIGNAL WORDS A signal word –...
  • Page 5 SAFETY GENERAL SAFETY GUIDELINES 1. ALLOW ONLY trained and experienced operators to operate your machine. Operating this equipment safely requires the full attention of the operator. Do not wear entertainment headphones while operating this machine. 2. ALWAYS DISENGAGE header drive, shut off the engine and remove key before servicing, adjustment, maintenance and lubrication to your corn head.
  • Page 6 SAFETY SAFETY DECAL 1.315.591 Carefully read Operator‟s Manual before handling the machine. When operating observe safety instructions.
  • Page 7 SAFETY FRONT SIDE Two reflecting strips are located at the ends on the front of the top beam facing forwards. Fig A: Two decals are located on the front side of the header rear sheet (on each side of the feeder opening).
  • Page 8 SAFETY FIG. C: Two decals are located on the rear of the end shields. NOTE: Four-row Corn Head will have one or two decals depending on the quantity of drive shafts. FIG C FIG D: Two decals are located at the ends on the rear side of the header back panel above the drive shafts.
  • Page 9 SAFETY 1.315.438 2 Decals 1.315.439 2 Decals 1.315.440 2 Decals 1.315.590 2 Decals...

  • Page 10: Identification, Technical Data

    A mounting kit is assembled to the corn head at the factory when a machine is ordered. A data plate is provided located on the left side of the machine's upper support. The model number refers to the following: for example: HARVESTEC 630  Universal corn head 6-row fix frame corn head with 30”...

  • Page 11: Technical Data

    IDENTIFICATION, TECHNICAL DATA 2. Technical data 2.1. Dimensions (in operating condition) Width(mm) Length(mm) Height(mm) 6-row 28-32" 4720 2950 1100 6-row 36-40" 5720 2950 1100 8-row 28-32" 6320 2950 1100 8-row 36-40" 7720 2950 1100 2.2. Dimensions (in shipping condition) Width(mm) Length(mm) Height(mm) 6-row 28-32"...

  • Page 12: Shipping Conditions

    SHIPPING CONDITIONS SHIPPING CONDITIONS Your corn head is delivered with gearboxes filled with oil, and packaged on a shipping skid. Oil levels should be checked before putting the Corn Head into operation.
  • Page 13 SHIPPING CONDITIONS The corn head can be lifted with a suitable crane or forklift. When choosing lifting equipment consider the weight as detailed in the Chapter 1, point 2.3. When lifting with a cable or chain, the included angle should not exceed 90°. Max 90°...

  • Page 14: Mounting The Corn Head On The Combine

    MOUNTING ON THE COMBINE MOUNTING THE CORN HEAD ON THE COMBINE After removing the Corn Head from the shipping container, and while on shipping stand  Remove the parking stands and snouts from their stored shipping position  Install parking stands in their retracted (transport) position ...
  • Page 15 MOUNTING ON THE COMBINE CASE IH If necessary, adjust the nuts on the U-bolts to get the required force on the latches. Refer to the combine Operator‟s Manual for the correct adjustments and latching methods. Deutz-Fahr Fiat-Laverda...
  • Page 16 MOUNTING ON THE COMBINE New Holland - For fixed frame corn heads Adjust the position of the feeder house's arm to the collar clamp. If the proper position is not attainable, change the original arm of the feeder house with the arm supplied as an attachment.
  • Page 17 MOUNTING ON THE COMBINE MF 8680; 8780;Gleaner R; Gleaner C Claas Mega, Claas Dominator, Claas Lexion...
  • Page 18 MOUNTING ON THE COMBINE When the corn head is properly attached and secured to the combine, and the feeder lift cylinder stop is engaged, disassemble the angle steel lifting bracket from the snapping unit. Assemble the snout using the pivot bolts supplied at the front attaching points Steel Snout/Dividers Shown...
  • Page 19 MOUNTING ON THE COMBINE Next, attach the drive shaft couplers. The spare parts list shows the coupler elements of the corn head, which suit the type of combine as listed. The shaft of the folding corn head is adjusted at the factory to align with the feeder shaft. Please check the shaft alignment and adjust it if it is necessary, (except for New Holland type).
  • Page 20 MOUNTING ON THE COMBINE To prevent the rotation of the universal drive shaft shield, attach both original chain restraints to the corn head. The drive shaft/coupler shields of the 6-row folding corn head are shown in the spare parts list. These shields must be adjusted and installed correctly.

  • Page 21: Run-In Procedure

    RUN-IN PROCEDURE RUN-IN PROCEDURE A 20 minutes trial run is suggested after the initial mounting. Start the combine and engage the drive with the engine speed at low idle, and run it slowly. Avoid starting the drive at high speed as the inertia from accelerating can increase the load by 8-10 times more than the full steady speed operational load.

  • Page 22: Setup Procedure And Adjustment Of The Corn Head

    SETUP AND ADJUSTMENT PROCEDURE SETUP PROCEDURE AND ADJUSTMENT OF THE CORN HEAD 1. Frame The fixed frame machines are provided with parking stands, which must always be used when the machine is to be disconnected from the combine. Before detaching the corn head from the combine, adjust the parking stand position such that the distance between the ground and the lower support of the corn head is about 30 cm (12 inches).
  • Page 23 SETUP AND ADJUSTMENT PROCEDURE In some conditions it may be necessary to change the speed of the gathering auger. An additional sprocket is available to permit changing the auger speed to match field conditions. Two types of flighting are available to satisfy the combine and field requirements. Finger Type Auger Type 3.
  • Page 24 SETUP AND ADJUSTMENT PROCEDURE A security pin is provided for the latch of the drive shields and side shield. This pin should never be removed. To open the shield, first release the security pin using a tool as shown. Snapping units A schematic in the parts book shows the arrangement of snapping unit for the various row spacing.
  • Page 25 SETUP AND ADJUSTMENT PROCEDURE 4.1.2. Setting labyrinth seal A needle bearing is used to support the spiral end of the snapping roll. Two gasket rings and labyrinth seal protect it. This seal is effective only if the distance between the stationary bearing block and the rotating snapping roll is not larger than 1 mm (.04 inches) 4.1.3.
  • Page 26 SETUP AND ADJUSTMENT PROCEDURE 4.2. Snapping plate settings The basic factory setting is 27-32 mm (1-1/16 to 1-1/4 inches). Essentially, the snapping plate spacing should be 5 mm (3/16 inches) closer at the front end than at the rear end. The central snapping plate adjusting mechanism can change the spacing from the nominal position 6 mm closer together and 10 mm farther apart.
  • Page 27 SETUP AND ADJUSTMENT PROCEDURE 4.3. Adjustment of vine knives The knives are made of spring steel and are hardened. If the adjustment is correct, material will be prevented from wrapping on the snapping roll. The maximum gap between the vine knife and the stalk roll is 0.5 mm (.04 inches). This gap should be set on one rib and all rib clearances should be checked by the rotation of the roll to ensure no interference.
  • Page 28 SETUP AND ADJUSTMENT PROCEDURE 4.4. Setting the chain tension of the gathering chain. The basic setting of the plastic sprocket's tension spring length is 150 mm (6 in). The elongation of the chain will increase this value. It should be reset after 180-200 hours of operation if working in severe conditions.
  • Page 29 SETUP AND ADJUSTMENT PROCEDURE PTO Shafts (Universal drive shafts) Corn heads are provided with "Bondioli and Pavesi" PTO shafts. The PTO shafts are fitted with friction safety clutch, which must be set at the beginning of each season. The reason for this is that the friction safety clutch can seize after prolonged period of inoperation, and therefore may not provide torque limiting.
  • Page 30 SETUP AND ADJUSTMENT PROCEDURE Adjust the spring tension to result in a torque value of the friction safety clutch of 920...
  • Page 31 SETUP AND ADJUSTMENT PROCEDURE Adjustment of the snout (Steel and Plastic Snouts) See the photo below (steel snouts shown). The corn head should be positioned with the combine feeder house such that the distance between the skid shoe of the snapping unit and the ground is 8 cm (3 ¼ “) with sliding skid shoe of the snout just touching the ground.
  • Page 32 SETUP AND ADJUSTMENT PROCEDURE The height of snout's skid plate (steel snouts only) can be changed if conditions justify.
  • Page 33 SETUP AND ADJUSTMENT PROCEDURE Plastic Snouts Shipping Position Service position Adjustment for changing snout position Skid plate is not adjustable. Manufacturer and Distributor are not responsible for incorrect setting of snout position.

  • Page 34: Harvesting

    HARVESTING HARVESTING The corn head is ready for harvesting after completing the preceding instructions in this manual, which refer to Mounting, Run-in, and Set-up and Adjustment Procedure.  Always be aware of the presence of the stalk chopper when putting the corn head into harvesting operation.
  • Page 35 HARVESTING  After 1 hour of initial operation, stop the machine, remove the combine engine key, and check the following: - Temperature of the drive gearboxes, - Loose hardware, - The tightness of the chain General visual inspection If this inspection reveals any abnormal result, look for the cause of the abnormality or contact your dealer.

  • Page 36: Row Spacing Adjustment

    ROW SPACING ADJUSTMENT ROW SPACING ADJUSTMENT Matching of the corn head row-spacing to the corn rows is necessary for optimum performance, and of especially greater importance with wider corn heads. Improper matching can result in pre-mature wearing of the snapping roll nose supports, and the leading edges of the snapping plates.
  • Page 37 ROW SPACING ADJUSTMENT 5. Remove shields of drive unit connections 6. Loosen screws on snapping unit and loosen chain coupling screws on drive connection unit connection 7. Loosen screws on the clamp of the 9. Loosen flat straps fastening snapping adjusting tube unit When the above mentioned is completed the snapping units can be moved sideways to the...
  • Page 38 ROW SPACING ADJUSTMENT When assembling the central rods, they must extend past the central frame element side opening by 60-60 mm (2 3/8-2 3/8”) This value refers to 21-26 snapping plate adjustment. The final procedure is to change the shield spacing. Loosen all screws, replace the shields and tighten the screws.

  • Page 39: Mounting To Another Type Of Combine

    MOUNTING TO ANOTHER TYPE OF COMBINE MOUNTING TO ANOTHER TYPE OF COMBINE The mounting kits for the combines can be found in the spare parts list. If you wish to mount to another type of combine, order the relevant mounting kit. When assembling to another type of combine, be sure to assemble all of the protective shields.

  • Page 40: Maintenance And Lubrication

    MAINTENANCE AND LUBRICATION MAINTENANCE AND LUBRICATION 1. Frame The frame of the fixed machines does not require any special maintenance. The folding mechanism of the folding corn head should be greased every 50 operating hours. 2. Gathering auger The driving chain of the gathering auger should be greased daily, and the chain tension should be checked frequently The drive jaw of the 4+2 folding corn head should be greased daily.
  • Page 41 MAINTENANCE AND LUBRICATION The central frame the outer frame...
  • Page 42 MAINTENANCE AND LUBRICATION 3. Drive Chain The chain should be greased daily, and chain tension checked frequently. 4. Drive connecting elements 4.1. PTO shafts:  should be greased daily. This includes the lower PTO shaft of the 4+2 folding corn head. 4.2.
  • Page 43 MAINTENANCE AND LUBRICATION 5. Snapping unit 5.1. Drive unit Oil change frequency: Every 300 hours, or once a season Oil Quantity and Specification: 1 litre of SAE 90 Oil level check frequency: every 100 hours  Remove the filling bolt with a wrench and measure the depth of oil. The depth should be 2 cm (3/4 inches) from bottom of the gearbox, with corn head as near horizontal as possible (viewed relative to stripper plates).
  • Page 44 MAINTENANCE AND LUBRICATION 5.2.2. The rear bolt retaining the flute to the stalk roll is a special type. It is must never be replaced with any bolt other than specified in the Parts Manual. Check visually the hex head of the bolts. If the heads are worn replace them before they become totally worn out, to prevent other problems ...
  • Page 45 MAINTENANCE AND LUBRICATION The degree and quickness of the wear will depend on the type of corn and soil types. This wear will not influence the function of the corn head. 5.3. Gathering chain  It should be greased daily using synthetic or vegetable grease or oil. The tension should be checked according to section “Set-up and Adjustment procedure”, paragraph 4.4.
  • Page 46 MAINTENANCE AND LUBRICATION 6.2. Knives and their mounting: 6.2.1. The condition of the knives should be checked daily. Never work with damaged knives! 6.2.2. The radial clearance between knife and bushing should not exceed 1 mm (.04”). If clearance exceeds 1 mm (.04”), change both knife and bushing. 6.2.3.

  • Page 47: Trouble Shooting

    TROUBLE SHOOTING TROUBLE SHOOTING A large quantity of ears is between the gathering auger and feeder house. This can result from improper setting of the combine for corn harvesting operation, including improper concave spacing or improper angle of the feeder house front face. Ensure that the combine is set for corn harvesting in accordance with the instructions and settings as recommended in the combine Operator Manual.

  • Page 48: Off-Season Storage Of Your Corn Head

    OFF-EASON STORAGE, WARRANTY, SERVICE AND SPARE PARTS ORDER OFF-SEASON STORAGE OF YOUR CORN HEAD When the harvesting is finished, thoroughly clean the machine and remove all remaining stalks. Carefully inspect the machine to ensure it will be in proper operating condition for the next season.

  • Page 49: Lubrication Chart

    LUBRICATION CHART LUBRICATION CHART...
