Using the device

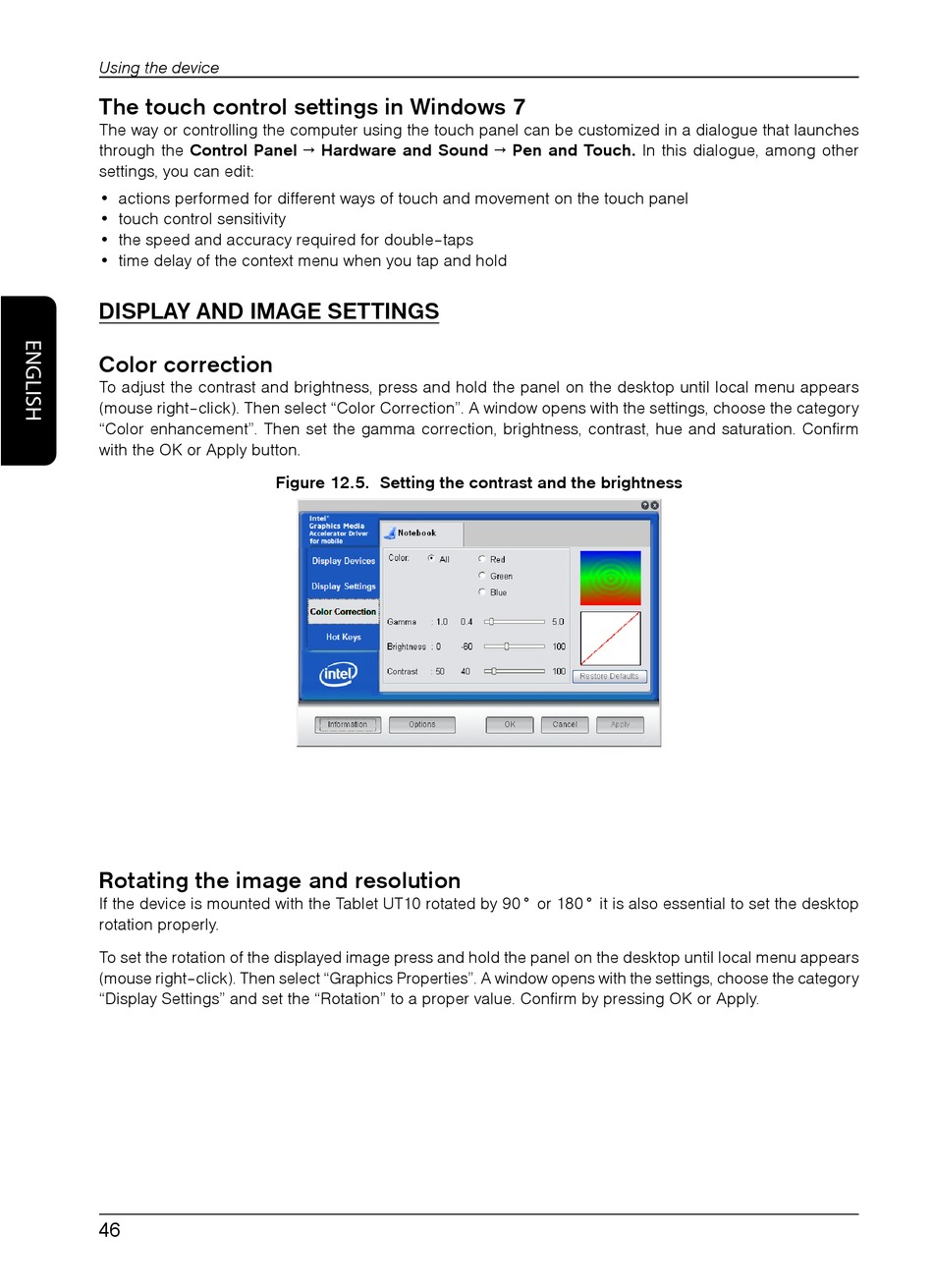

The touch control settings in Windows 7

The way or controlling the computer using the touch panel can be customized in a dialogue that launches
through the Control Panel � Hardware and Sound � Pen and Touch. In this dialogue, among other
settings, you can edit:
• actions performed for different ways of touch and movement on the touch panel
• touch control sensitivity
• the speed and accuracy required for double–taps
• time delay of the context menu when you tap and hold

DISPLAY AND IMAGE SETTINGS

Color correction

To adjust the contrast and brightness, press and hold the panel on the desktop until local menu appears
(mouse right–click). Then select "Color Correction". A window opens with the settings, choose the category
"Color enhancement". Then set the gamma correction, brightness, contrast, hue and saturation. Confirm
with the OK or Apply button.
Figure 12.5. Setting the contrast and the brightness

Rotating the image and resolution

If the device is mounted with the Tablet UT10 rotated by 90° or 180° it is also essential to set the desktop
rotation properly.
To set the rotation of the displayed image press and hold the panel on the desktop until local menu appears
(mouse right–click). Then select "Graphics Properties". A window opens with the settings, choose the category
"Display Settings" and set the "Rotation" to a proper value. Confirm by pressing OK or Apply.
46
