- Page 1 Part Number 500082 Rev 05 Operator's Manual Model HNC-63-INT Neurovascular Array Coil for the Philips Intera 1.5T MRI System...
- Page 2 Rev 05 February 2002 ©2002 Invivo Corporation All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Invivo Corporation.
- Page 3 Introduction This manual describes the safety precautions, features, use and care, of the Invivo HNC-63-INT Neurovascular Array Coil, compatible with the Philips Intera 1.5T MRI System. Please review this manual thoroughly before using the device. If you have any questions or comments on this manual, or need any assistance with the use of the product, please contact your Invivo sales representative: Compatibility The Invivo HNC-63-INT Neurovascular Array Coil is compatible with Philips Intera...
-
Page 4: Hnc-63-Int Neurovascular Array Coil

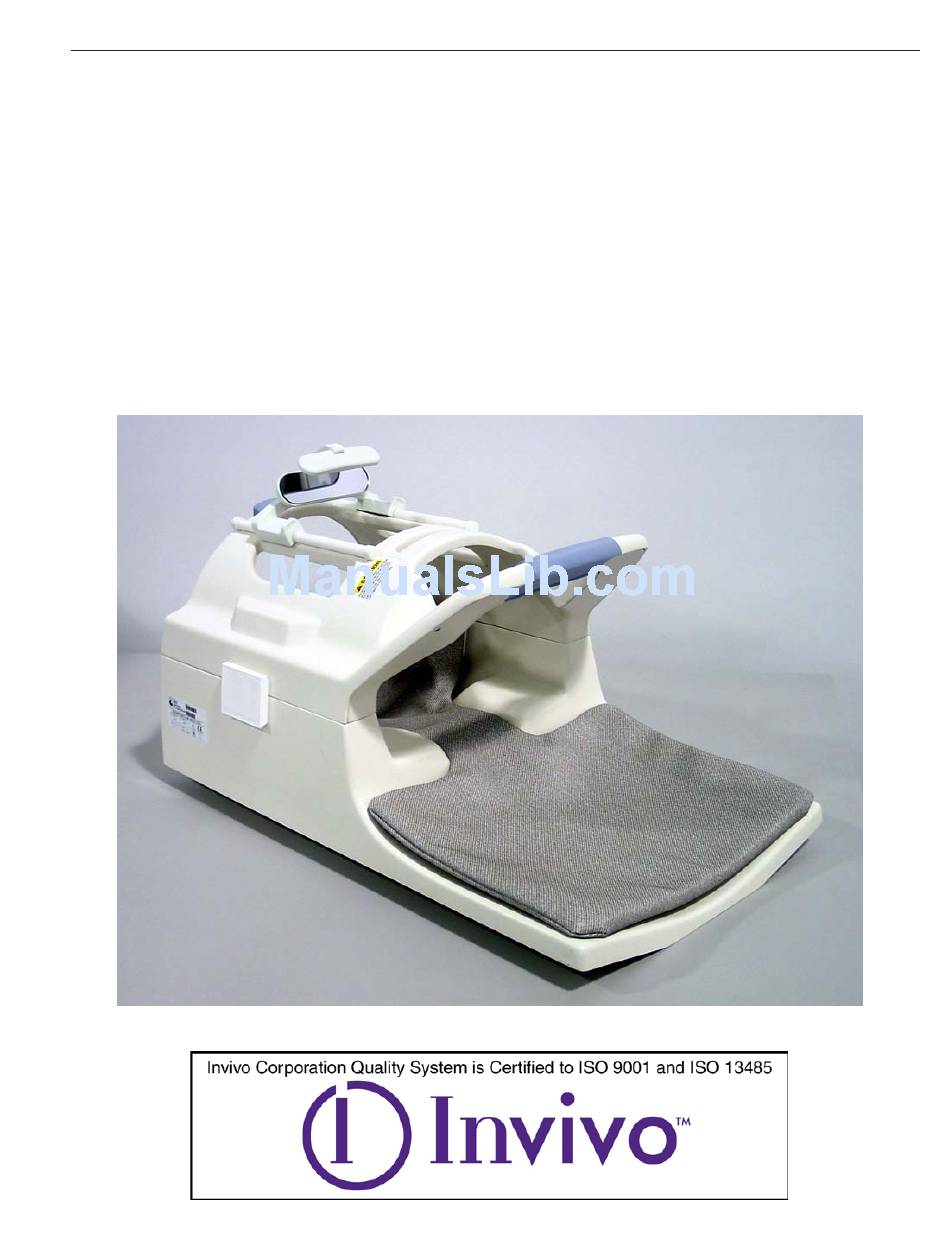

Rev 05 HNC Neurovascular Array Coil Your HNC-63-INT Neurovascular Array Coil package consists of the following parts. Please inspect the package upon receipt to make sure all parts are present and in good order. Use this guide to refer to part names thoughout this manual. -
Page 5: Table Of Contents
Table of Contents HNC-63-INT Neurovascular Array Coil ... 4 Chapter 1 - Patient Safety ... 6 Training ... 6 Quality Assurance ... 6 Indications ... 6 Contraindications ... 6 Precautions ... 6 Cautions ... 7 Emergency Procedures ... 7 Technical Considerations ... 8 Chapter 2 - Using the HNC-63-INT Neurovascular Array Coil ... -
Page 6: Chapter 1 - Patient Safety
The coil is indicated for use, on the order of a physician, in conjunction with an MR scanner as an accessory to produce images of the brain, cervical spine, anterior neck, and vasculature of the head and neck, to the aortic arch. -
Page 7: Emergency Procedures
Assure that the patient is not touching the bore. If necessary, place pads between the patient and the surface of the bore. If the patient complains of warming, tingling, stinging, or similar sensations, promptly stop the scan procedure, examine the patient, and contact the responsible physician before continuing the procedure. -
Page 8: Technical Considerations
The equipment should not be used with other coils or equipment present in the MR scanner except as specified in the Operator’s Manual. Tampering with the cable pins and connector may damage the connector and affect coil or system performance. -
Page 9: Chapter 2 - Using The Hnc-63-Int
Chapter 2 - Using the HNC-63-INT Array Coil IMPORTANT: You must have the Synergy MultiConnect (SMC) Positioning the device and Level 8.1.1 or higher software in order for the Intera system to recognize the coil. Additionally, Release 8.1.1 software HNC-63-INT requires a Synergy MultiConnect patch to enable this coil to be recognized by your system. -
Page 10: Positioning The Patient
Rev 05 Positioning the Patient When lifting the anterior coil housing, always grasp the coil by the apron and the superior end of the housing. Never lift the coil housing by the viewing window or mirror. Adjust the patient so their shoulders are snug against the curved arch of the posterior coil housing. -
Page 11: Synergy Multiconnect (Smc)
Synergy MultiConnect (SMC) For more information on Synergy MultiConnect, please refer to Intera Release 8 Philips Application Guide/Volume 1 - Basics, Section 3.22. The Synergy MultiConnect (SMC) is shown here with the HNC coil connector. The Synergy MultiConnect (SMC) shown here is a required option to use the HNC-63-INT coil. -
Page 12: Connecting The Cable
Rev 05 Connecting the Cable Attach the Synergy MultiConnect (SMC) holder to the same side of the support as the patient ineterface control unit (PICU) facing the magnet. In this example, the PICU is on the left side. Slide the holder toward the bore, even with the patients knees. For systems with PICU on left side of magnet, transfer SMC connector across table to the PICU. -
Page 13: Left Side Patient Interface Control Unit (Picu)
Left Side Patient Interface Control Unit (PICU) Attach SMC connector to PICU. Example above is left side PICU. Right Side Patient Interface Control Unit (PICU) Attach SMC connector to PICU. Example above is right side PICU. Rev 05... -
Page 14: Chapter 3 - Quality Assurance
Rev 05 Chapter 3 - Quality Assurance Remove the coil top and place the phantom positioner (part number 102485) and Quality the phantom (part number 102690) as shown in the figures below. Replace the coil top. Assurance Connect the coil to the system as detailed in Chapter 2, "Connecting the cable." Landmark on the the phantom through the small window in the top of the coil. - Page 15 Run a SURVEY scan using the parameters listed below. TIP: Save this SURVEY scan for future QA scans. An example of the SURVEY images is on page 15. Geometry Coil Selection 3IB-MRIDevic -channel Combination 2345 -connection Multi Coil Homogeneity correction none FOV (mm) 400.00 RFOV (%)
- Page 16 Rev 05 Example of SURVEY images are below; note position of slices for the SNR check. Proceed to the SNR check on page 16.
- Page 17 Run an SNR CHECK scan using the parameters listed below. TIP: Save this SNR CHECK scan for future QA scans. Position slices for the SNR CHECK as shown on page 15. ***IMPORTANT: Be certain to SAVE RAW DATA under Post Processing.*** Geometry Coil Selection 3IB-MRIDevic...
- Page 18 Rev 05 Reconstruct SNR CHECK image for individual channels using the instructions provided below. 1. Before running the SNR CHECK scan, be sure to have the "Save Raw Data" option set to "Yes" under [Postproc]. 2. Do not delete the current scan from the [Scanlist]. 3.
-
Page 19: Snr Calculations
1.Select the reconstructed image from Channel 2, and display an eliptical ROI with a total pixel area of 1300 mm squared. Refer to Philips Gyroscan Intera Calulations Instructions Manual for ROI help. 2. Position ROI in the center of the phantom bottle, as shown below. 3. - Page 20 Rev 05 Repeat SNR calculations as described on page 18 for the remaining reconstructed images from channels 3,4,5. Calulations Example...
- Page 21 Repeat SNR calculations as described on page 18 for the remaining reconstructed images from channels 3,4,5. Calulations Example Rev 05...
- Page 22 Rev 05 Repeat SNR calculations as described on page 18 for the remaining reconstructed images from channels 3,4,5. Calulations Example...
-
Page 23: Chapter 4 - Scanning Set Up
FOV if desired. Fold-over suppression must be set to YES. The Intera body coil may be used at any time while the HNC-63-INT Neurovascular Array Coil is in the scanner. This allows a large FOV (400 mm) body coil SURVEY to be performed, which is helpful in determining the foot-head offset required for imaging the neck. -
Page 24: Scanning Step By Step
Rev 05 Scanning Step by Step Scan Select: Software Release 8.1.1, Choose "3IB-MRIDEVIC", Software Releases above 8.1.1, choose "SMC-MRI". Select Channel combination(s): HEAD only: Select NECK only: Select HEAD & NECK: Select Plan Slices Confirm Planning Geometry Page: Homogeneity Correction, Select "NONE" Start Scan IMPORTANT: Upon scan completion, you must change channel combination if imaging a different region. -
Page 25: Chapter 5 - Scan Protocols
Rev 05 Chapter 5 - Scan Protocols Invivo Corporation recomends that you select imaging protocols that have been established by your radiologists. Additional protocols can be found within your Philips Application Guides. -
Page 26: Chapter 6 - Maintenance
Rev 05 Chapter 6 - Maintenance The Neurovascular Array coil and patient comfort pads may be cleaned by wiping Cleaning with a cloth dampened with a solution of 30% isopropyl alcohol and 70% tap water. Do not pour any cleaning solution directly on the coil! Let coil housing and pads dry before use. - Page 27 Rev 05...
