Summary of Contents for Tibo TI435 AMP

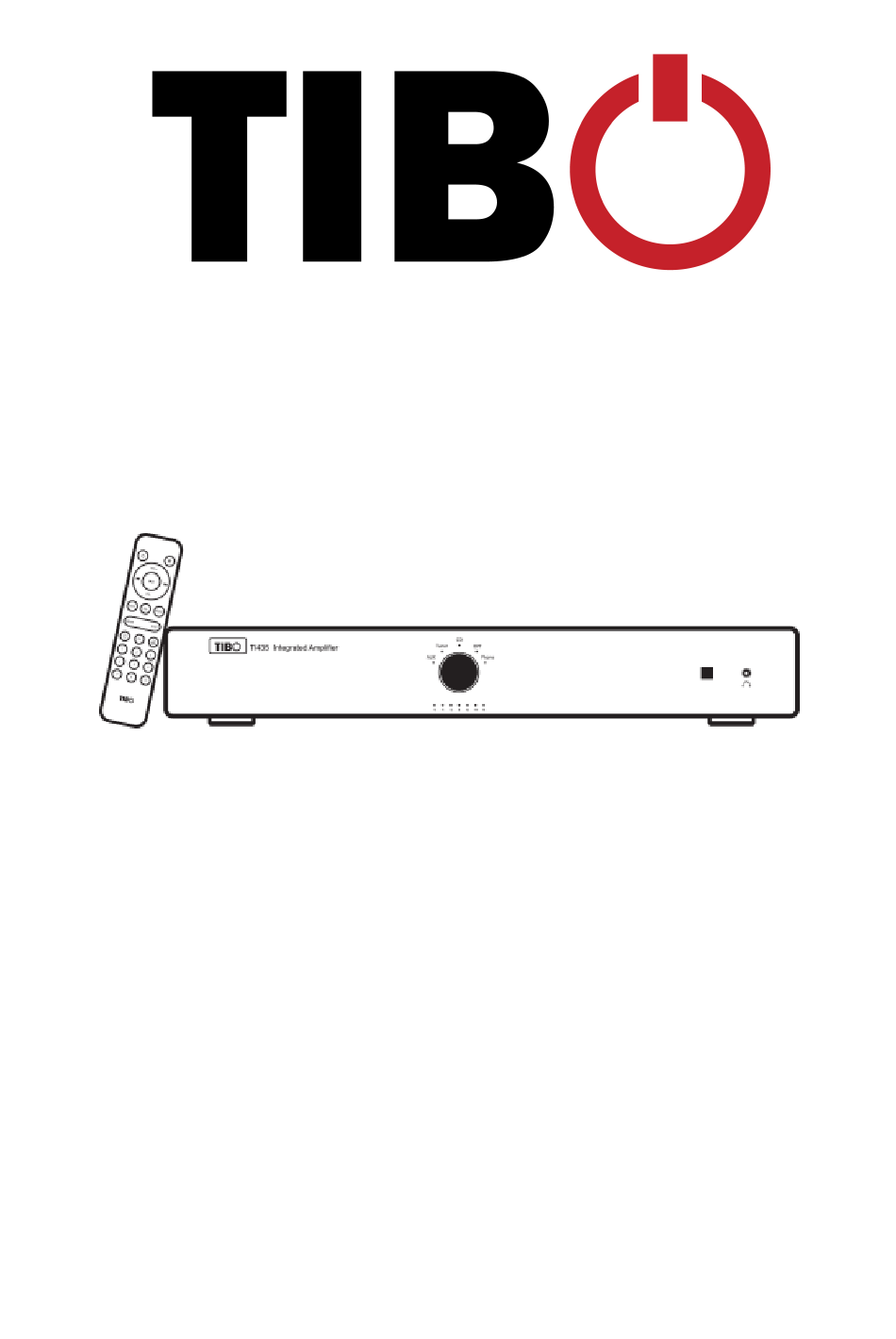

  • Page 1 TI435 AMP – User Manual...

  • Page 2: Table Of Contents

    Contents • Safety Information • Introduction • First time system setup • Line In mode • Tuner mode • CD mode • Optical mode • Phono mode • Connecting a subwoofer • Troubleshooting...

  • Page 3: Safety Information

    • Safety Information Do not share the power socket with another appliance. Do not disassemble or attempt to repair the appliance on your own. lf you are not using the appliance, pull the power cord out of the mains socket. Be careful of the power cord and maintain it as appropriate.
  • Page 4 Do not wash the appliance or use it in the bathroom, or it may cause potential injuries and other problems. Installation location Leave sufficient space around the appliance of at least 5 cm from any wall/obstacle to ensure proper ventilation and prevent the appliance from overheating.
  • Page 5 Storm lf the appliance is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute. Do not drop small items or a liquid into the appliance In the event that you find small items or a liquid inside the appliance, you see smoke or smell an odour, immediately disconnect the appliance from the power grid.

  • Page 6: Introduction

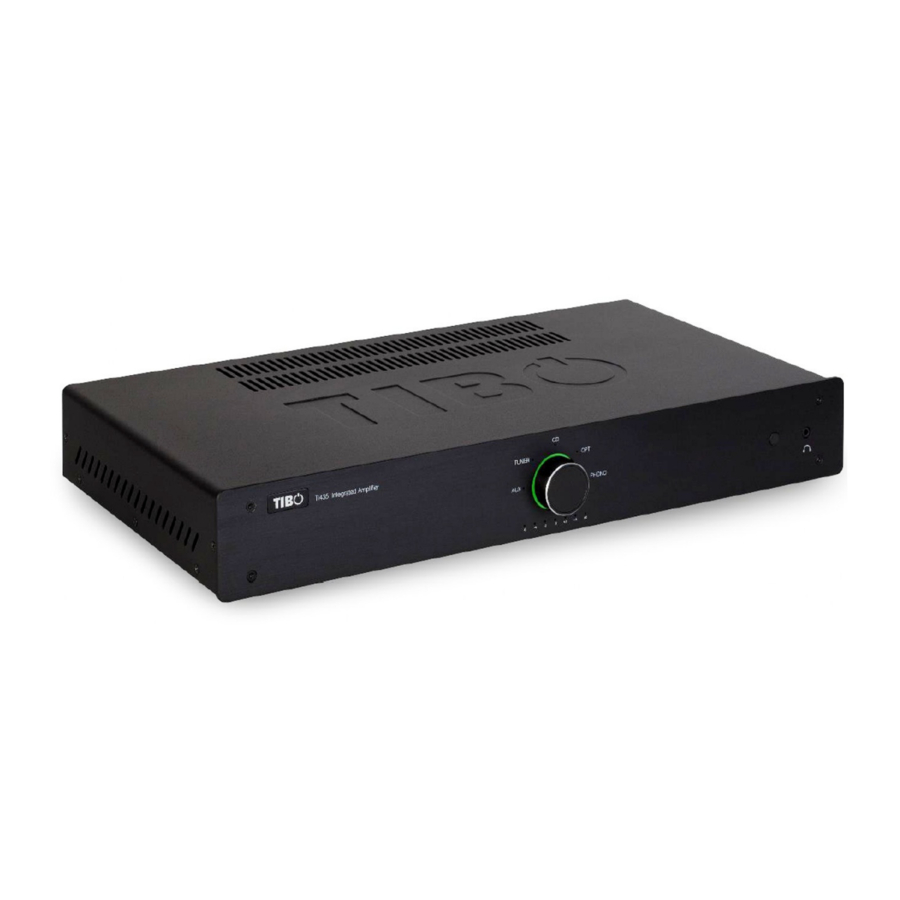

    Integrated Amplifier. We hope that your experience with the Amplifier will be enjoyable for many years to come. The TIBO TI435 Amplifier is solidly built, sports a stylish design and delivers a detailed, rich and hugely enjoyable sound. A brushed aluminium fascia and polished aluminium control knob make a joy both to look at and use.

  • Page 7: First Time System Setup

    First time system setup • In the box - TI435 Integrated Amplifier - UK figure 8 plug - EU figure 8 plug - Remote control - Quick start guide Front panel layout 1. On / Off / Mode / Volume: - Long Press: Turn on / off - Short Press: Change between each input mode...
  • Page 8 Rear panel layout 1. RCA Line In (L / R) 2. Tuner In (L / R) 3. CD In (L / R) 4. Phono In (L / R) 5. Sub Out 6. Optical In 7. Speaker Out (L / R): 8.
  • Page 9 Remote Control 1. Power On / Standby 2. Volume Up / Down 3. Info Button: (N/A for this model) 4. Mode Button: Switch between Line In, Tuner, CD Optical and Phono mode 5. Light Button: Change the colour of the outer ring surrounding the central dial 6.
  • Page 10 1. Locate the area in your building in which you would like to setup the TI435 Amplifier. 2. Connect the amp to passive speakers via speaker cable. At TIBO we recommend using passive speakers from our Harmony or Legacy range to get the best out of your Amplifier.
  • Page 11 3. Insert the appropriate mains cable into the rear of the Amp and turn on your power source. 4. Turn on the power switch at the rear of the Amp. The ring around the central dial of the Amp should light up a dim red colour.

  • Page 12: Line In Mode

    • Line In mode 1. Whilst the TI435 is turned off, connect an RCA cable to the Line In port on the rear panel and the other end of the cable to your Android/iOS device. This is to avoid speaker pop when the TI435 is turned on.

  • Page 13: Cd Mode

    will then tell you what mode is currently activated. E.g. Line In mode. 3. Short press the mode button on either the amp itself or the remote control until the amp responds saying “Tuner mode.” 4. You can now play music to the amp via your source.

  • Page 14: Optical Mode

    • Optical mode 1. Whilst the TI435 is turned off, connect an optical cable to the optical in port at the rear of the amp and connect the other end of the cable to a source with an optical output. 2.

  • Page 15: Connecting A Subwoofer

    • Connecting a subwoofer 1. For this you will need an RCA to RCA cable. This can be either a stereo or a mono RCA lead. 2. If the subwoofer you’re using has a mono input, use the mono RCA lead to connect. 3.

  • Page 16: Troubleshooting

    • Troubleshooting Problem Possible Cause/Solution No power - The power switch is turned off. Turn on power switch. - The power chord is disconnected. Readjust power chord. No sound - Volume control is at lowest level. Use remote to increase volume or turn up volume on your amplifier.
  • Page 17 Sound is very quiet when - The RCA Phono input is connected to a Turntable NOT a Phono pre-amp phase for a Turntable. So if you connect your Turntable to the Amp, make sure your turntable is set to Line instead of Phono.
