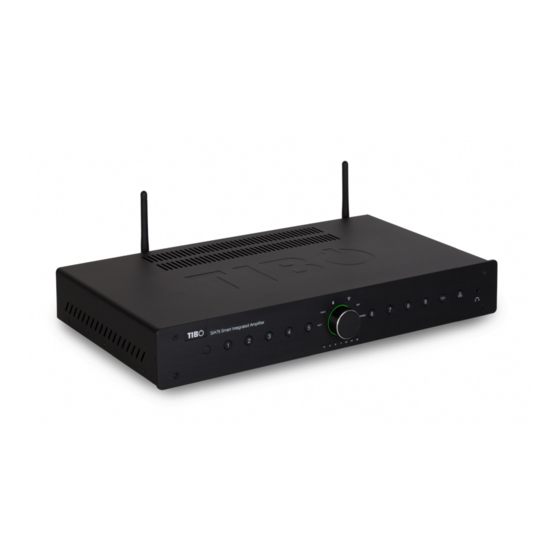

Tibo SIA 75 User Manual
Hide thumbs Also See for SIA 75:

Advertisement

SIA 75 – User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIA 75 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tibo SIA 75

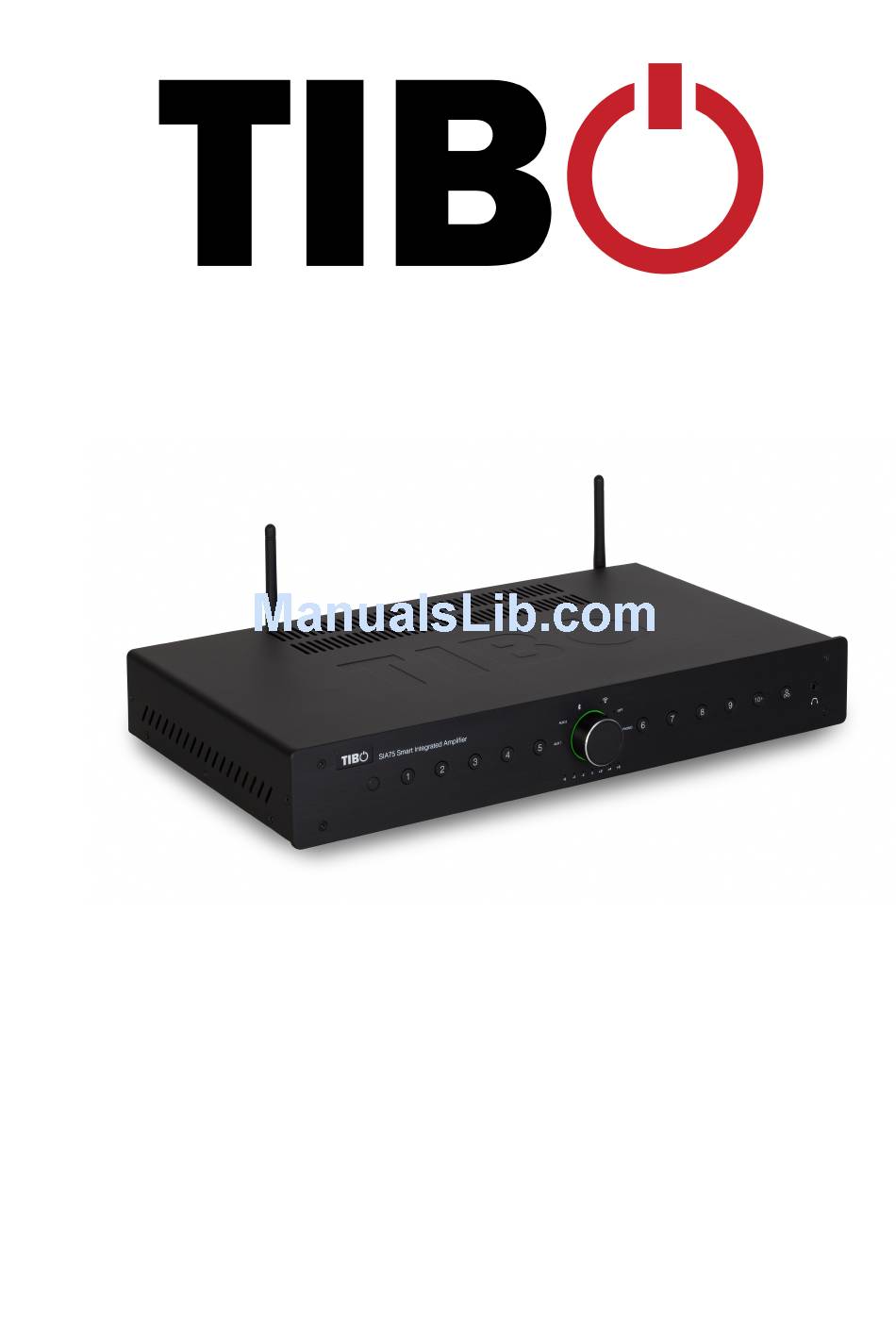

  • Page 1 SIA 75 – User Manual...
  • Page 2: Table Of Contents

    Contents • Safety Information • Introduction • First time setup • Wi-Fi mode • Solo mode and group mode • Using the pre-set functions • Bluetooth mode • Line In mode • Optical mode • Phono mode • Connecting a subwoofer •...
  • Page 3: Safety Information

    • Safety Information Do not share the power socket with another appliance. Do not disassemble or attempt to repair the appliance on your own. lf you are not using the appliance, pull the power cord out of the mains socket. Be careful of the power cord and maintain it as appropriate.
  • Page 4 Do not wash the appliance or use it in the bathroom, or it may cause potential injuries and other problems. Installation location Leave sufficient space around the appliance of at least 5 cm from any wall/obstacle to ensure proper ventilation and prevent the appliance from overheating.
  • Page 5 Storm lf the appliance is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute. Do not drop small items or a liquid into the appliance In the event that you find small items or a liquid inside the appliance, you see smoke or smell an odour, immediately disconnect the appliance from the power grid.
  • Page 6: Introduction

    Bluetooth or Wi-Fi plus the addition of 2 x RCA, 1 x Optical and 1 x Phono inputs plus 1 x sub output, the TIBO SIA 75 truly can play it all. Connect your phone via Bluetooth and enjoy your stored music or streaming services such as Spotify.
  • Page 7: First Time Setup

    10-18 Central Dial: • Long press: Turn on/Standby • Short press: Choose between each mode • Turn Dial Left / Right: For volume control Group Button: Press to group SIA 75 with other TIBO Smart Audio products Headphone Out...
  • Page 8 Bass, Treble and Balance adjustment Bluetooth Aerial Wi-Fi Aerial Rear panel layout WPS Button: Press to connect to Wi-Fi Ethernet/LAN Port: For connecting directly to a router RCA Line In 1: Left / Right. For phone / tablet RCA Line In 2: Left / Right. For phone / tablet Phono In: Left / Right.
  • Page 9 Remote control...
  • Page 10 12. Scan Button (N/A for this model) 13. Shift Button: Press to access Bass, Treble and Balance settings Then press Skip Track Forwards / Backwards to increase or decrease 14. Group Button: Press to group to other TIBO Smart Audio products...
  • Page 11 2. Connect the appropriate power cord to the power input port on the rear of the SIA 75. Then turn on the SIA 75 by pressing the on/off switch to on. 3. The SIA 75 will respond by saying “Power on”...
  • Page 12 With the TIBO app you can: • Browse and connect to over 15000 internet radio stations • Select a sound source • Manage Multi Mode groups • Set up, modify, and play your pre-sets • Check what song or other media is currently playing •...
  • Page 13: Wi-Fi Mode

    • Wi-Fi mode setup 1. Either press the mode dial on the front of the SIA 75 until the SIA 75 responds saying “Wi-Fi mode” or press the mode select button on the remote control. 2. Open the TIBO app on your Android or iOS device and follow the instructions on screen.
  • Page 14 5. Find your Wi-Fi network, type in your password and then press ‘Next’. 6. Short press the WPS button on the rear of the SIA 75. The SIA 75 will respond by saying “Searching for Wi-Fi connection.” Then press ‘Next’...
  • Page 15 7. Then wait for the SIA 75 to connect to your Wi- Fi. When connected, the SIA 75 will respond by saying “Wi-Fi connected. Then press ‘Next.’ 8. You can now name your SIA 75 within the app. Either select from the list of pre-set options or click on custom to set your own name.
  • Page 16 9. Your SIA 75 will now appear on your ‘Device List’ within the app. To add more devices, press the ‘cross’ icon in the top right of the screen.
  • Page 17 Playing music via Spotify 1. Play some music in Spotify. 2. Click on ‘Devices Available’ at the bottom of the screen on Spotify. 3. Find your SIA 75 on the list and connect.
  • Page 19 Playing Internet Radio and My Music Swipe left and right to navigate between each page of the app. Click on ‘My Music’ to play music from your device or click ‘TuneIn’ to search for thousands of internet radio station.
  • Page 22 ‘Device List’ and drag it on top of another speaker. 3. When grouped together, the SIA 75 will respond by saying “group mode.” There will also be a white line on the app to show the connection of grouped speakers.
  • Page 23: Using The Pre-Set Functions

    • Using the pre-set functions 1. On the main menu of the TIBO app, click on TuneIn and search for the radio station that you’d like to save as a pre-set. 2. Next to all the radio stations you will see a...
  • Page 24: Bluetooth Mode

    3. Click on the speaker icon to open the pre-set content. Then click on any of the pre-sets 1-18 to save a radio station as a pre-set. The SIA 75 will respond by saying “pre-set saved.” 4. Press the corresponding number button on either the SIA 75 or the remote control to recall the pre-set.
  • Page 25: Line In Mode

    SIA 75. When connected, the speaker will respond saying “Bluetooth connected.” 5. You can now play music to the SIA 75 via your device. • Line In mode 1. Whilst the SIA 75 is turned off, connect an RCA cable to the ‘Line In 1’...
  • Page 26: Optical Mode

    2. Turn on your SIA 75 and press the mode button until Optical mode is selected. SIA 75 will respond by saying “Optical mode.” 3. You can now play music to the SIA 75 via your source. • Phono mode 1.
  • Page 27: Connecting A Subwoofer

    RCA lead to connect. 3. If the subwoofer you’re using has a stereo input, use the stereo RCA lead and connect the white end to the SIA 75 and match the opposite white and red ends with the subwoofer.
  • Page 28: Additional Information

    5 seconds, the SIA 75 will restore itself to factory settings. 3. Ethernet connection: If you connect one end of an Ethernet cable to the SIA 75 and the other end to your router, the SIA 75 will bypass the Wi-Fi setup phase on the TIBO app. The open the TIBO app and the SIA 75 will be there in your ‘Device List’.
  • Page 29: Troubleshooting

    Wi-Fi - Product too far away from router Cannot connect to router - Ensure router is dual band, as TIBO products only connect with 2.4GHz and NOT 5GHz Product dropping in and out - Source is too far away...
  • Page 30: Specifications

    Sound resolution 24 bit/192kHz The Bluetooth® word mark and logos are registered trademarks owed by Bluetooth SIG Inc. and any use of such marks by TIBO is under license. Other trademarks and trade names are those of their respective owners.
