Smartflow Tracer VMA Series Operating Instructions Manual

Flowmeter with automatic flow regulation

Advertisement

Quick Links

Tracer
with AutoReg™
®
VMA
Flowmeter with Automatic Flow Regulation

General

The
Tracer
Flowmeter with AutoReg provides:
VMA
Analog Flow Output (Selectable 0 to 3.5V, 0 to 5V or 0 to 10V)
Analog Temperature Output (Selectable 0 to 4.1V, 0 to 5V or 0 to 10V)
(Lowest Voltage Output settings match Tracer
of direct replacement if needed.)
Programmable Alarm Switch for High or Low Temperature and/or
Flow. Switch can be set for Turbulent Flow instead of programmed
settings. 1A, 30VAC/30VDC
Flow Rate Display (GPM or LPM)
Fluid Temperature Display (°F or °C)
Reynolds Number Display
BTU's per Minute Display
FCI Display (Turbulent Flow or "TF" on display)
Volume Totalizer Display
Automatic Shutoff Timer
Glycol Scale Options, 0%, 10%, 20% or 30% (for FCI Calculation)
Automatic Regulation Control Features
Regulation via Flow Rate or Reynolds Number
Actuator Alarm notifies user via switch when the AutoReg is unable to
achieve the desired set point (15 seconds - 999 seconds).
Available Flow Ranges and Accuracy
Body
Range
Range
Size
(LPM)
(GPM)
3/8" &
1 to 15
.3 to 4
1/2"
3/8" &
2 to 40
.5 to 10.6
1/2"
3/4" &
5 to 100
1.3 to 26.4
1"
1"
10 to 200
2.6 to 52.8
Tracer
Interface and Sensor are calibrated as a
VMA
matched pair. Separating the pair voids the calibration.
Base Units for ease
VM
Flow
Reynolds
Flow Rate
Accuracy
Number
Deadband
(Full Scale)
Deadband
±1.5%
300
±1.5%
300
±1.5%
1000
±1.5%
1000
Flow and
Temperature
Sensor
Temperature
Operating Range .....................0 to 120°C (32 to 248°F)
Accuracy ............................................................. ±0.5°C
Component Materials
Sensing Element ...............Silicon-Based MEMS Sensor
Seal (sensor to housing) ..........................EPDM Rubber
0.1
Flow Path Insert ............................................PPA 40 GF
3/8" & 1/2" Body Sizes ........... Glass-Filled Nylon Flow
0.1
3/4" & 1" Body Sizes .................... Anodized Aluminum
1.0
Electronics Cover ..................................................Nylon
Cable .........................9-Conductor, 24AWG, 4.8M long
2.0
Operating
Internal Relay ................................. 1A, 30VAC/30VDC
Min. Power Required ............................... 1.5A, 24VDC
Power Usage ..................................................3.0A Max.
Maximum Pressure ............................. 10.3bar (150 psi)
Output Signals ..............................................Ratiometric
RoHS Compliant
Tracer
User Interface with
VMA
1"NPT Flow Body
AutoReg Module with 3/8" Delta-Q
(Control Cable disconnected)
Body with Brass or Nylon End Caps
or Stainless Steel (optional)
200 to 300mA Typical

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tracer VMA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartflow Tracer VMA Series

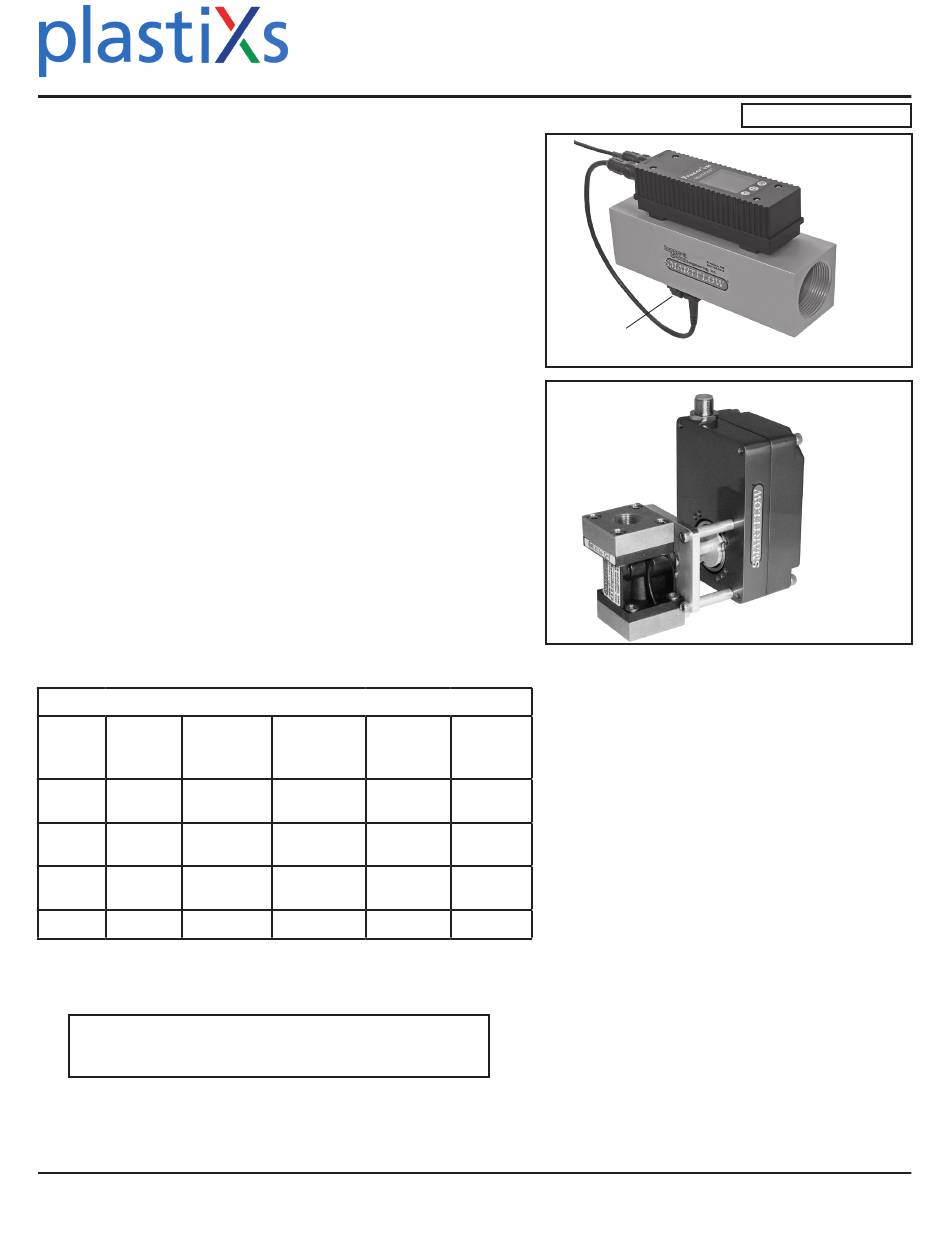

  • Page 1 RoHS Compliant Tracer with AutoReg™ ® Flowmeter with Automatic Flow Regulation Operating Instructions General Tracer Flowmeter with AutoReg provides: • Analog Flow Output (Selectable 0 to 3.5V, 0 to 5V or 0 to 10V) • Analog Temperature Output (Selectable 0 to 4.1V, 0 to 5V or 0 to 10V) Flow and (Lowest Voltage Output settings match Tracer Base Units for ease...
  • Page 2: Maintenance Instructions

    Maintenance Instructions ing principles to all machines in a water system. Visit the Technical Copper Plumbing Alert Documents section of www.smartflow-usa.com for a detailed discussion of DO NOT connect an aluminum body flowmeter Turbulent Flow. directly to copper plumbing. Galvanic corrosion is very Input the percentage of glycol (0, 10, 20 or 30% only) in cooling water for likely to occur.
  • Page 3: Operating Instructions

    Tracer with AutoReg™ Instruction ® Operating Instructions Modes of Operation There are three modes of operation for the Tracer Flowmeter: User Mode, Setup Mode and Calibration Mode. User Mode displays all available process information: • Flow rate • Temperature • Reynolds Number •...
  • Page 4: Setup Mode

    Tracer with AutoReg™ Instruction ® Setup Mode The display must be off to enter Setup Mode. Press and hold s button, then hold down . “Setup Mode” appears in the upper left corner of the display. Press r or s buttons to scroll through the list of selectable options.
  • Page 5 Tracer with AutoReg™ Instruction ® Setup Mode (continued) Set BTU/m Input Temperature Press to view or change. Press r or s buttons to select input Setup Mode temperature point between 40°F - 181°F. Press to select. To BTU/m disable, select “OFF”. (For the most accurate calculation, measure INPUT TEMP the input temperature using Tracer flowmeter.
  • Page 6 Reynolds Setpoint). Press r or s buttons to select: Value Curve • FLOW • REYNOLDS • DISABLED Press to select. EXIT/OFF Press to power down. For valuable Mold Cooling Articles and Turbulent Flow Calculation Tools, visit the Technical Documents page of the SMARTFLOW-USA web site: http://www.smartflow-usa.com/ documents.htm...
  • Page 7: Calibration Mode

    Tracer with AutoReg™ Instruction ® Calibration Mode Users should not make changes in Calibration Mode unless directed by Burger & Brown Engineering. Loss of Factory Calibration May Result. The display must be off to enter Calibration Mode. Press and hold r button, then press to enter Calibration Mode.
  • Page 8: Troubleshooting

    Tracer with AutoReg™ Instruction ® Troubleshooting Display Resolution Memory Error, Contact the Factory, not user serviceable. Flow and Check cable between sensor and electronics housing is plugged in both Temperature places. Re-seat connections. readings are 0.00 User Interface is calibrated for each specific sensor. Check that electronics circuitry has not been mixed with a different sensor.
