- Page 1 ML 800 Series Laser Hard-Seal Helium Neon Operator’s Manual Model Numbers: ML 800 ML 810 ML 868 ML 869 ML 869A ndustrIal Iber ptIcs...
- Page 2 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise) without prior written permission from Industrial Fiber Optics. * * * * *...
- Page 3 For more information about our company and products refer to www.i-fiberoptics.com on the Internet. Thank you for selecting this Industrial Fiber Optics product. We hope it meets your expectations and provides many hours of productive activity. Sincerely, The Industrial Fiber Optics Team –...
- Page 4 – ii –...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Introduction………………………....……..…………..…… LASER CLASSIFICATION..…......……..…...… GENERAL…………....…......……..…...…….. SAFETY NOTES................Laser Safety..................Electrical Safety................CDRH Regulations................OPERATING CONDITIONS…....………....……. Input Voltage.................. Environmental Limits..............LASER SPECIFICATIONS.............. LASER OPERATION............... Beam Controls................Power Controls................Operating Instructions..............TROUBLESHOOTING..............MODULATED LASERS ......(ML 868, ML 869, ML 869A) Connectors for Signal Input............ -
Page 6: Laser Classification
LASER CLASSIFICATIONS All manufacturers of lasers used in the United States must conform to regulations administered by the Center for Devices and Radiological Health (CDRH), a branch of the U.S. Department of Health and Human Services. CDRH categorizes lasers as follows: Class Description A laser or laser system, which does not present a hazard to skin... -
Page 7: General
GENERAL In the ML 800 Series, Industrial Fiber Optics offers lasers in a range of power, size and price. The helium neon tubes used in these lasers have a shelf life of at least 10 years, and a lifespan of at least 20,000 hours of continuous operation. -
Page 8: Safety Notes
The greatest potential for harm with Industrial Fiber Optics lasers is to the eyes. Just as no one should stare at the sun or arc lamps, no one should look directly into the laser beam or stare at its bright reflections. -
Page 9: Electrical Safety
To protect the user and to comply with federal laser safety legislation, Industrial Fiber Optics seals the laser housing. Never open the housing. If the housing is opened, Industrial Fiber Optics’ product warranty will be voided. -
Page 10: Operating Conditions
The fourth label identifies Industrial Fiber Optics as the manufacturer, states the model and serial numbers and certifies that the laser has been manufactured to meet the Laser Performance Standard. -
Page 11: Laser Specifications
1.65 328 x 72 x 74 IIIa All of Industrial Fiber Optics’ ML 800 series of lasers are of hard-seal construction. “Hard-seal” means the mirrors are fused to the tube body and it does not require periodic operation. The ML 868, ML 869 and ML 869A are modulated lasers. -
Page 12: Laser Operation

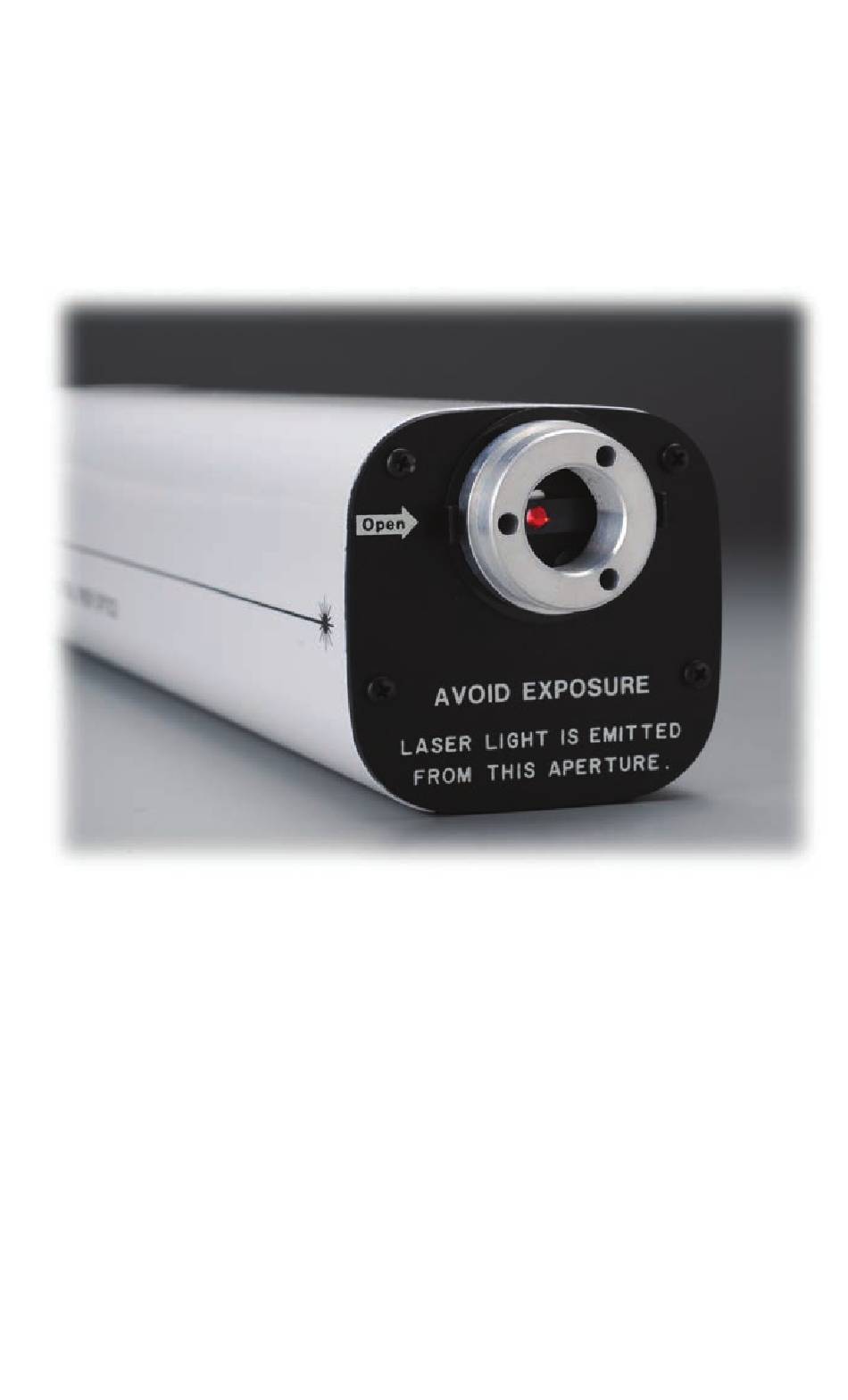

LASER OPERATION Beam Controls The only moving parts at the front end of the laser are the beam stop and the adjustable optics mount. The adjustable optics mount consists of a threaded ring held by two sets of retainers that will assist in mounting lenses, beam shaping telescopes and spatial filters. -
Page 13: Operating Instructions
Operating Instructions Point the laser toward a wall or other dull surface. Plug the line cord into a grounded outlet of the proper voltage. A label on the unit identifies the correct voltage range. Position the On/Off switch to the On position. Look for the beam on the wall toward which the laser is pointed. -
Page 14: Modulated Lasers
Detectors The detector that receives the transmitted signal should have sufficient bandwidth to decode the signal. Industrial Fiber Optics’ 45-545A Digital Laser Power Meter, IF PM Photometer and IF 513 Audio Receiver can detect audio, but not video signals. Industrial Fiber Optics’... -
Page 15: Troubleshooting For Modulated Lasers
Troubleshooting for Modulated Lasers If the laser will not modulate, determine whether the input signal is suitable. Test the laser using an alternate input source. Use an amplifier between a microphone and the laser, if necessary. Determine whether the receiver is functioning properly. Aim the laser at the receiver, but do not try to modulate the laser. -
Page 16: Applications And Demonstrations
Look for them in the Laser Teaching Supplements in the Educational Equipment section of the website. For a free catalog and information on purchasing the catalog in bulk, call, fax or e-mail Industrial Fiber Optics. Optical Galvanometer Wind 20 turns of insulated wire around a screwdriver handle. -
Page 17: Laser Light Show
Shine a laser beam at the mirror, reflecting it onto a wall. The beam will dance around on the wall in a pattern set by the music. Industrial Fiber Optics’ Laser Optics Lab (45-600) includes lightweight, front-surface mirrors. -
Page 18: Warranty
Industrial Fiber Optics’ warranty liability is limited to repair or replacement of any defective unit at the company’s facilities, and does not include attendant or consequential damages. -
Page 19: Shipment Damage Claims
SHIPMENT DAMAGE CLAIMS If damage to an Industrial Fiber Optics product should occur during shipping, it is imperative that it be reported immediately, both to the carrier and the distributor or salesperson from whom the item was purchased. DO NOT CONTACT INDUSTRIAL FIBER OPTICS. -
Page 20: Service And Maintenance
SERVICE AND MAINTENANCE Periodic operation, maintenance and service of this laser are not required. The warranty will be voided if entry has been made to the laser housing and/or any screws removed. In the unlikely event this laser malfunctions and you wish to have it repaired, please do the following: •... - Page 21 Table 1. Common abbreviations used in this manual. Abbr Long Version Scientific Notation milliwatts 1 x 10 watts µW microwatts 1 x 10 watts nanowatts 1 x 10 watts millimeters 1 x 10 meters µm micrometers 1 x 10 meters nanometers 1 x 10 meters...
- Page 22 NOTES...
- Page 23 NOTES...
- Page 24 12 0098 Rules for Laser Safety • Lasers produce a very intense beam of light. Treat them with respect. Most educational lasers have an output of less than 3 milliwatts, and will not harm the skin. • Never look into the laser aperture while the laser is turned on! PERMANENT EYE DAMAGE COULD RESULT.
