CL3 Series
Installation Manual

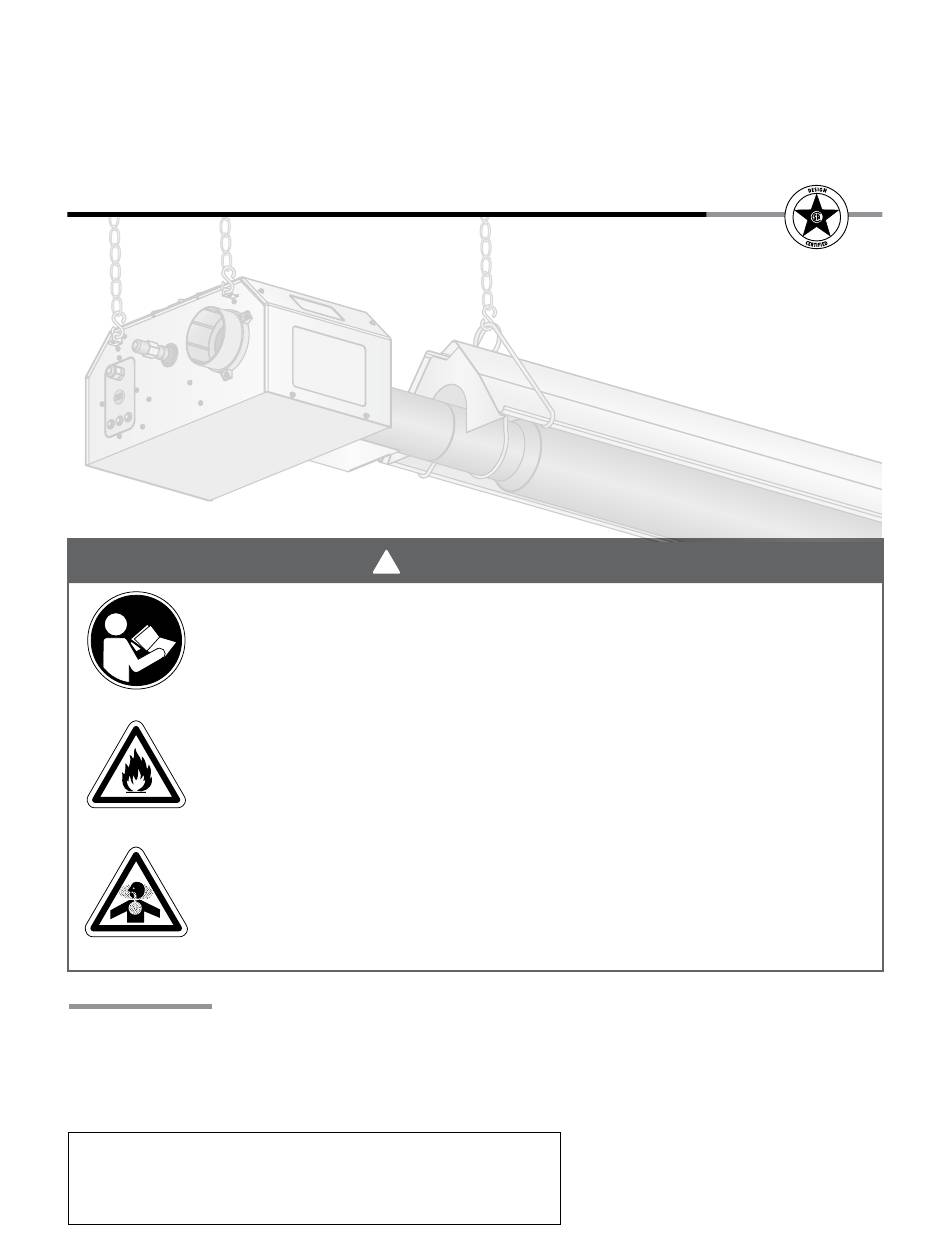

The CL3 Series Infrared Tube Heater is a positive pressure, two stage radiant heater system. This
manual provides specific information related to the CL3 series model. All persons involved with the
installation, operation, and maintenance of the heater system must read and understand the
information in this manual.
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, injury, or death. Read the installation, operation, and maintenance
instructions thoroughly before installing or servicing this equipment.
This heater must be installed and serviced by trained gas installation and service
personnel only. Failure to comply could result in personal injury, asphyxiation, death,
fire, or property damage.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
In locations used for the storage of combustible materials, signs must be posted to
specify the maximum permissible stacking height to maintain the required
clearances from the heater to the combustibles. Signs must either be posted
adjacent to the heater thermostat or, in the absence of such thermostat, in a
conspicuous location.
Do not use this heater in indoor living or sleeping quarters, etc.! Installation of a
tube heater system in residential indoor living spaces may result in property damage,
serious injury, asphyxiation, or death.
For Your Safety
If you smell gas:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building. • If you cannot reach your gas supplier, call the fire department.
INSTALLER: Present this manual to the end user.
Keep these instructions in a clean and dry place for future reference.
Model#: ______________________ Serial #: _____________________________
WARNING
!
• Immediately call your gas supplier from a neighbor's phone.
• Follow the gas supplier's instructions.
(located on rating label)
LIOCL3-Rev. 25417
Print: 1c-03/19 (DRPC)
