INSTALLATION

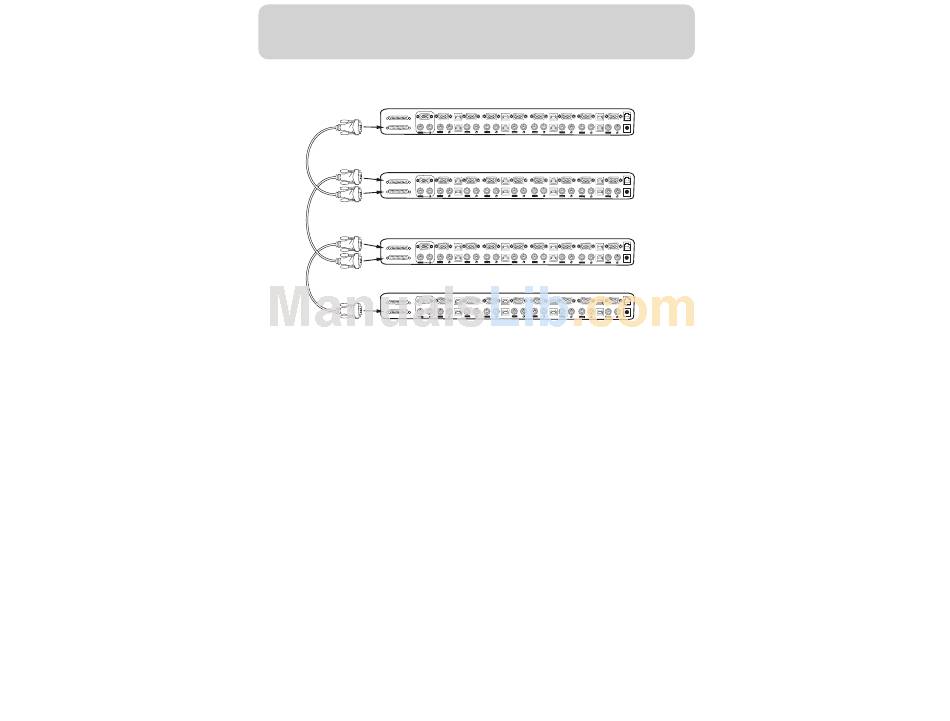

Example of Daisy-Chain Configuration:
S lave I nput
VGA
M aster I nput /S lave O utput
cable 1
S lave I nput
VGA
M aster I nput /S lave O utput
cable 2
S lave I nput
VGA
M aster I nput /S lave O utput
cable 3
S lave I nput
VGA
M aster I nput /S lave O utput

Connecting the Computers:

9. Connect all computers to the Master and Slave switches. Refer to
"Single PRO2 Installation" on page 10 for instruction on how to connect
the Console and the computers to the PRO2.
10. Connect the power supply to the Master switch. Power up the Master
switch. You should see the Master switch light up and display the digits
"00", indicating its BANK address.
11. Power up the Slave switches sequentially, beginning with Bank 01, by
connecting each unit's power supply. Each switch should display its
corresponding BANK address number as it is powered up.
Note: If the PRO2s do not enumerate correctly, reset the Master switch
(BANK 00) by simultaneously pressing the "BANK +" and "BANK –" buttons.
You can also reset the Master switch to detect newly added Slave switches.
If the switches still do not enumerate correctly, check that all switches have
the correct BANK address assigned to them and that all daisy-chain cables
are connected properly.
12. Verify that the Master unit has detected all Slave switches by scrolling
through the BANKS using the BANK up and BANK down buttons.
If all Slave switches are detected properly, the LED display on the Master
switch will register and display the attached Slave switch's BANK address.
15
VGA
08
USB
08
VGA
07
06
VGA
06
USB
06
VGA
05
VGA
04
USB
04
VGA
03
VGA
02
VGA
01
USB
02
08
USB
07
07
06
USB
05
05
04
USB
03
03
02
USB
01
01
Master unit
(BANK 00)
VGA
07
06
06
VGA
05
VGA
VGA
08
USB
08
VGA
USB
06
04
USB
04
VGA
03
VGA
02
VGA
01
USB
02
08
USB
07
07
06
USB
05
05
04
USB
03
03
02
USB
01
01
Slave unit
(BANK 01)
VGA
08
USB
08
VGA
07
06
VGA
06
USB
06
VGA
05
VGA
04
USB
04
VGA
03
VGA
02
VGA
01
USB
02
08
USB
07
07
06
USB
05
05
04
USB
03
03
02
USB
01
01
Slave unit
(BANK 02)
VGA
08
VGA
07
06
VGA
06
VGA
05
VGA
04
VGA
03
VGA
02
USB
08
USB
06
USB
04
USB
02
VGA
01
08
USB
07
07
06
USB
05
05
04
USB
03
03
01
02
USB
01
Slave unit
(BANK 03)
