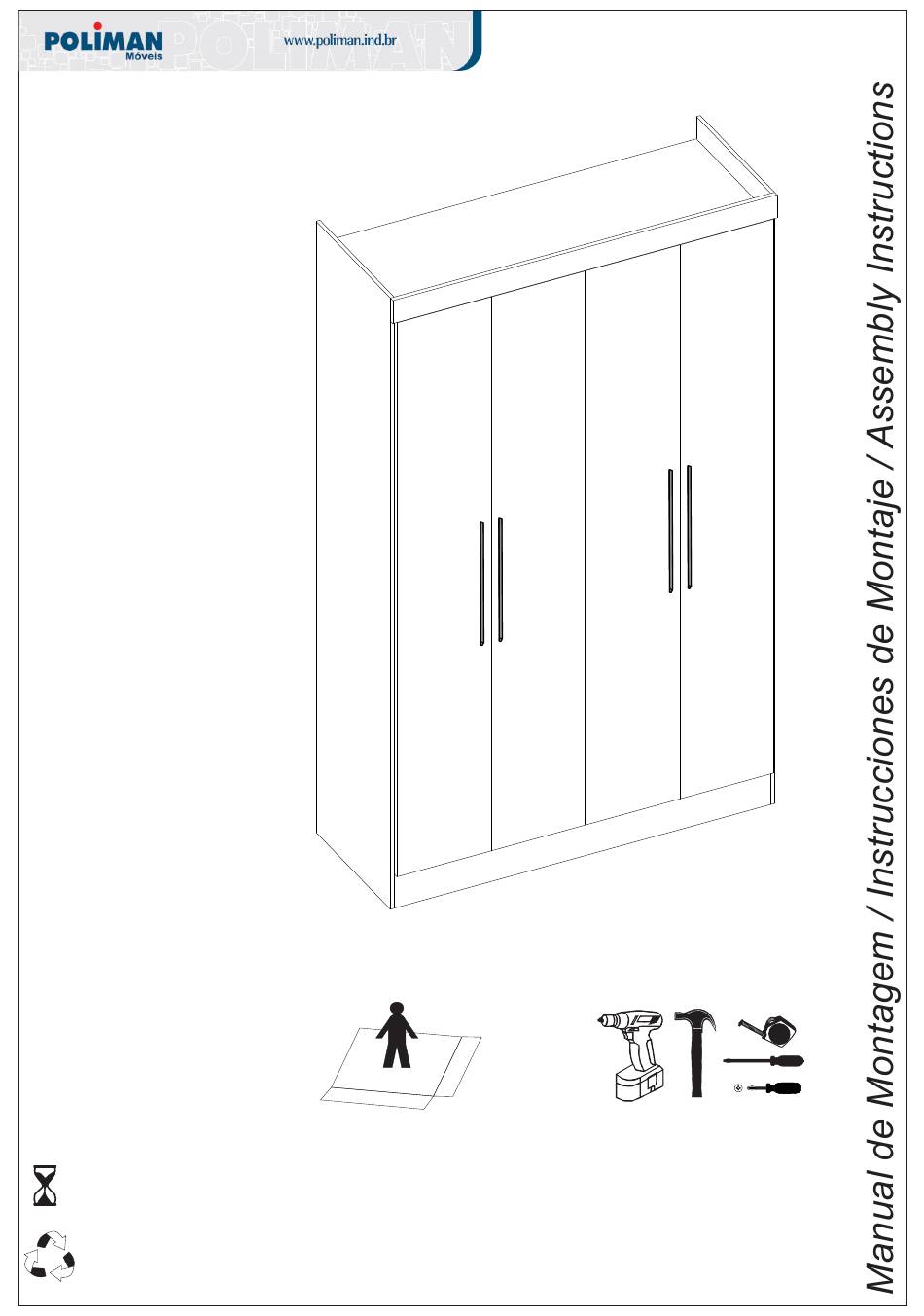

Poliman A5000 Assembly Instructions Manual

Bedroom

Advertisement

Quick Links

DORMITÓRIO
A5000- BRANCO
A5001 - AMENDOA
A5002 - ROVERE
A5003 - CARVALHO
A5004 - DEMOLIÇÃO
DORMITORIO
A5000- BLANCO
A5001 - AMENDA
A5002 - ROVERE
A5003 - CARVALHO
A5004 - DEMOLICION

BEDROOM

A5000 - WHITE
A5001 - AMENDOA
A5002 - ROVERE
A5003 - OAK
A5004 - DEMOLITION
ALTURA: 2000mm
LARGURA: 1200mm
PROFUNDIDADE: 470mm
ALTURA: 2000mm
ANCHO: 1200mm
PROFUNDIDAD: 470mm
HEIGHT: 2000mm
WIDTH: 1200mm
DEPTH: 470mm
Ilustração: André Matheus
REVISÃO/REVISIÓN/REVIEW
26/02/2018
30 min
Fone/Fax: +55 43 3276-8600
E-Mail: assistencia@poliman.ind.br
Arapongas - Paraná - Brasil
PAPEL RECICLADO / RECYCLED PAPER
ROUPEIRO SANTOS 04 PORTAS
ROPA SANTOS 4 PUERTAS / ROUPEIRO SANTOS 04 PORTAS
Recomendação
- Utilize a embalagem do produto para
forrar o chão e realizar a montagem.
Recomendaciones
- Utilice el embalaje del producto para
forrar el suelo y realizar el montaje.
Recommendations
- Use the product packaging for
lining the floor and assembling.
Ferramentas
- Utilize as ferramentas acima para
facilitar a montagem do produto.
Herramientas
- Utilice las herramientas anteriores para
facilitar el montaje del producto.
Tools
- Use the tools above to
facilitate assembly of the product.
