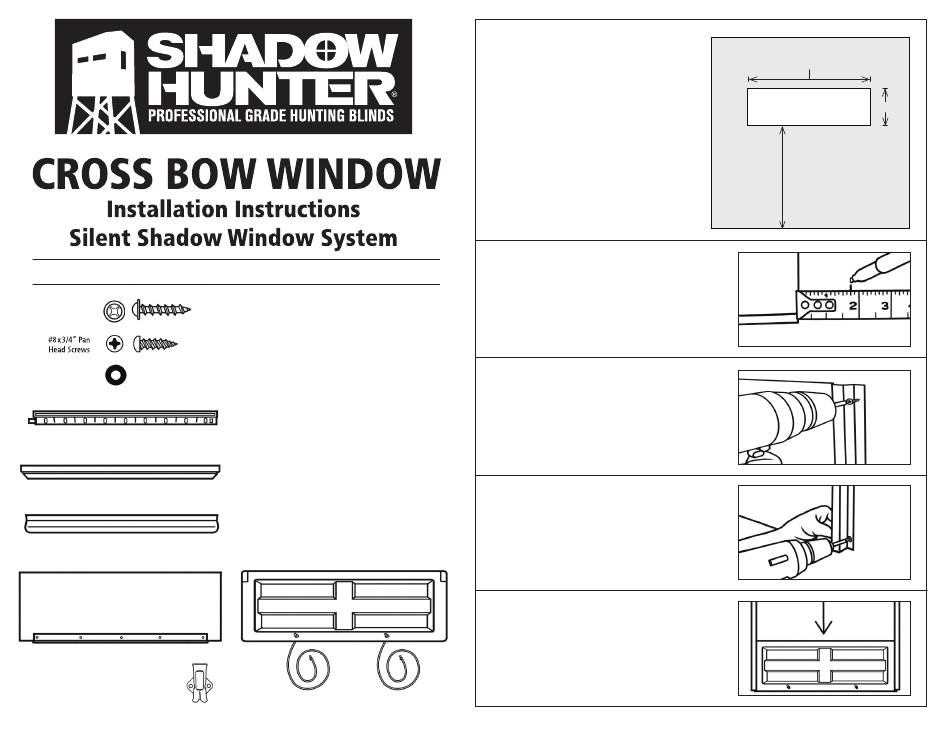

Shadow Hunter CROSS BOW WINDOW Installation Instructions

Tools Needed: Cordless Drill • Square Drive Bit • Tape Measure • Saw
#8 x1" Washer
Head Screws
Rubber Window
Shield Stop
Interior Glass Track
Exterior Shield Track
Exterior Drip Cap
Interior Glass Panel
Screws & hardware included
for one window system:
[10] #8 x 1" Washer Head Screws
Use 3 screws per interior glass track.
[13] #8 x 3/4" Pan Head Screws
Use 3 screws per exterior track.
Use 7 screws per drip cap, evenly spaced.
[1] Rubber Window Shield Stops
[1] Interior Glass Panel
[1] Window Shield with Draw Cord
[1] Drip Cap
[2] Exterior Shield Tracks
[2] Interior Glass Panel Tracks
[2] Speed Cinch®
Speed Cinch ®
Exterior Window Shield with Draw Cord
STEP 1. PREPARING YOUR BLIND
Mark the intended position of your window
using the measurements indicated here.
Cut the window frame.
STEP 2. INSTALL THE EXTERIOR
SHIELD TRACKS
2A - On each of the 10" sides, measure over 1-3/4"
at the top and bottom corners. Be sure to mark all
four spots.
2B - Using the marks as a guide, position the first
exterior shield track along one side of the window
opening. Raise the channel about 1/8" above the top of
the window. Use 1 pan head screw to hold the exterior
track in place.
Repeat step 2B on the opposite side.
2C - Make sure each track is aligned at the top and
bottom of the window opening. Use a total of 3 pan
head screws to fasten each track in place.
STEP 3. INSTALL THE EXTERIOR SHIELD
Drop the exterior shield into place behind the exterior
shield tracks. The cord hole should be on the bottom
of the shield.
34-3/8" WIDE
40" from floor to
bottom of window
(Cross Bow window instructions continue on the other side)
10" HIGH
