Tools Needed: Tin Snips • Cordless Drill • #2 Square Drive Bit •
Tape Measure • Caulk Gun • 3/8" Staple Gun • Hammer • Marker

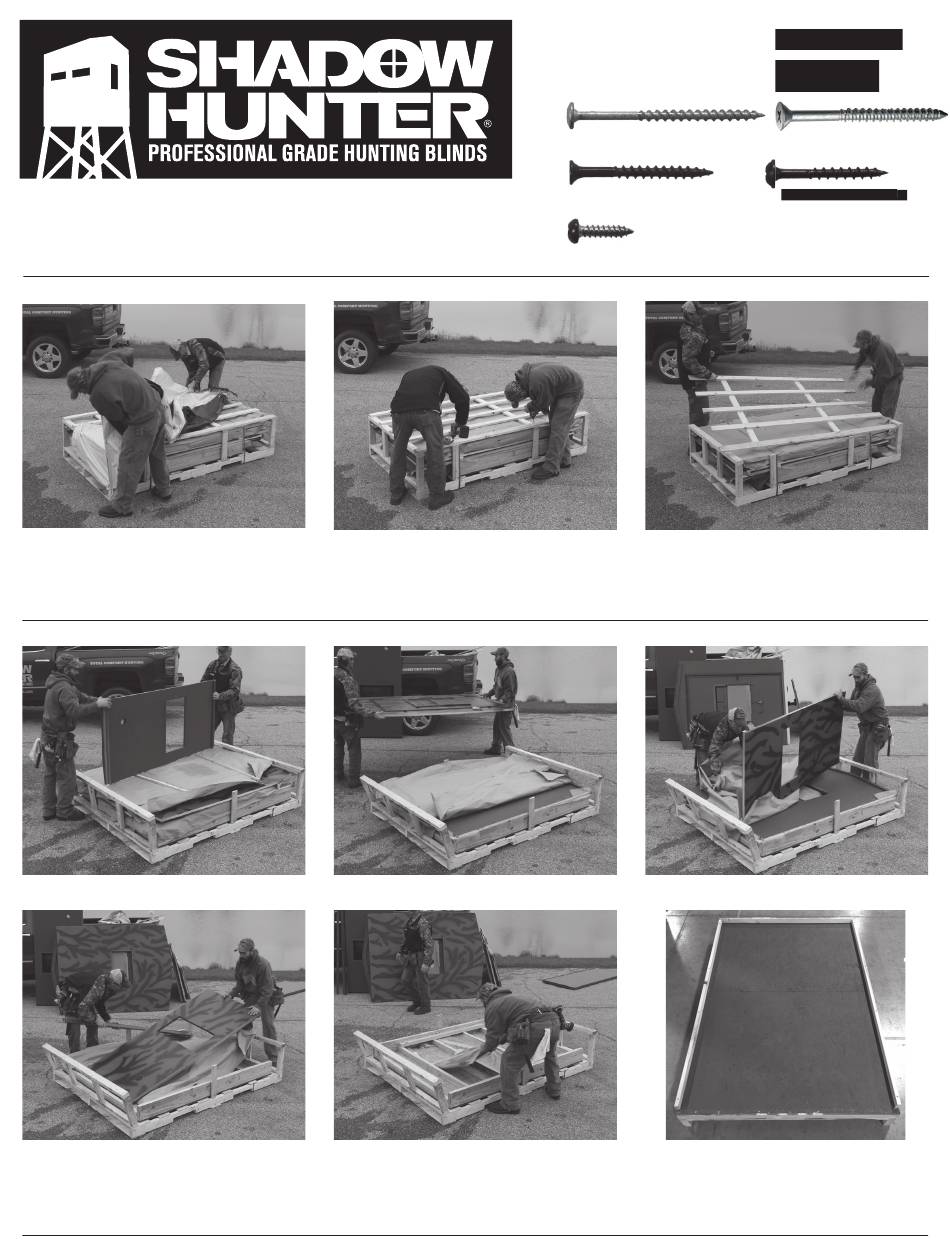

Step 1 - Disassemble shipping container:
Disassemble shipping container by pulling off Tyvek wrap and unscrewing all screws from the protective wooden top.
Step 2 - Remove all parts of the hunting blind:
Remove all parts, walls and the roof to expose the fl oor of the hunting blind. Separate all items for easy assembly.
4X6 HUNTING BLIND
6 HUNTING BLIND
Assembly Instructions
Assembly Instructions
(4) - 3" Pan head screw
(30) - 2" Flat head screw
(165) 3/4" pan head screw
Plus, (60) in window kit bag
(2) - 3" Flat head screw
(50) - 1" Washer head screw
(50) - 1" Washer head screw
(50) - 1" Washer head screw
in window kit bag
