- Page 1 Series EYEVIS REAR PROJECTOR LINE User Manual Version 1.2 (October 2018) Technical changes reserved.
- Page 2 The content of this document is solely informative, can be changed at any time without notice, and represents no obligation on the part of eyevis. eyevis assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.
-
Page 3: Table Of Contents
EC-LED-SLIM Series Table of Content Cabling the cubes ........37 Sicherheit / Safety Transfer cables between cubes �... - Page 4 Approval by eyevis � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �...
-
Page 5: Sicherheit / Safety
EC-LED-SLIM Series Sicherheit / Safety Zu dieser Anleitung Lesen und beachten Sie diese Anleitung. In ihr stehen wichtige Informationen zum Produkt. Beachten Sie insbesondere alle Sicherheits- und Warnhinweise. Bewahren Sie diese Anleitung sorgfältig auf! Verwendete Warnhinweise ACHTUNG Kennzeichnet eine Gefahr, die zur Beschädigung oder Zerstörung des Produkts führen kann. - Page 6 Vor konkreten Gefahren werden Sie zusätzlich in den nachfolgenden Kapiteln durch farbige Warnhinweise immer dann gewarnt, wenn die Gefahr unmittelbar besteht. Bestimmungsgemäße Verwendung Das eyevis Gerät mit LED-Projektionsengine dient zur visuellen Wiedergabe von Inhalten im industriellen Bereich. • Betreiben Sie das Produkt nur in erlaubter Installationslage.
- Page 7 Zum Auspacken und zum Bewegen der Geräte sollten Sie mindestens zu zweit sein. Stellen Sie sicher, dass die Geräte stets aufrecht transportiert werden. ► Verwenden Sie ausschließlich eyevis Untergestelle zum Aufbau der Geräte. Verwenden Sie an Orten mit starken Vibrationen ein entsprechendes vibrationsabsorbierendes Untergestell von eyevis. ►...
- Page 8 Schäden, die in Folge mangelnder Beachtung der Anweisungen dieser Bedienungsanleitung entstanden sind. ► eyevis ist nicht haftbar für Schäden die in Folge des Gebrauchs seiner Produkte im Zusammenschluss mit anderen Produkten, Geräten und Software entstehen.
- Page 9 EC-LED-SLIM Series About this manual Read and pay attention to this manual. It contains important information on the product. In particular, note all of the safety instructions and warnings. Keep this manual in a safe place! Warnings used NOTICE Indicates a hazard that could lead to damage or destruction of the product. The general warning symbol indicates a hazard that could lead to injuries or death.
- Page 10 In the following chapters, warning signs displayed in colour also indicate hazards that are imminent. Intended use The eyevis devices with LED projection engine is intended for visually replaying contents for industrial use. • Only operate the product in a Authorised installation position.
- Page 11 Make sure the devices are carried upright. ► When installing the devices, use the designated basement supplied by eyevis. Use a special vibration absorbing basement from eyevis when using the devices in locations subject to vibration. ► Do not place the device in an unstable location such as e.g. inappropriate raised floors or inclines.
-
Page 12: Disassembly And Storage
Observe the environmental conditions for storage. Disclaimer ► eyevis is not liable for any damage caused by natural disaster (such as earthquake, thunder etc.), fires, acts by third parties, accidents. ► eyevis is not liable for any damage caused by owner's intentional misuse and fault or uses in other improper conditions. -
Page 13: About This Product

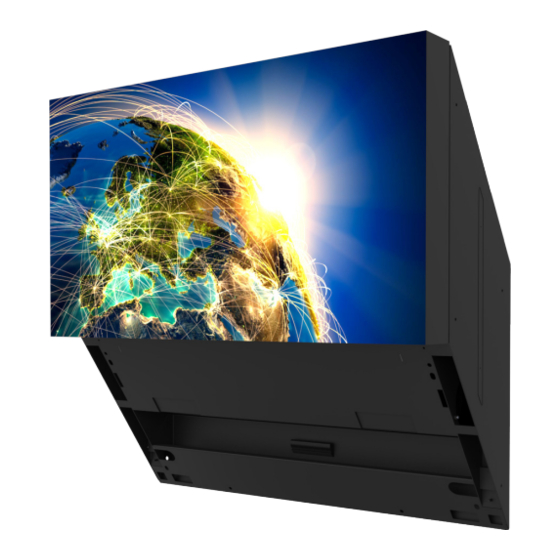

The easy-handling concept with projection units in innovative single-module design with integrated and motorized geometry adjustment enables a quick and easy setup. Like all eyevis cubes the new slim model is equipped with a robust self-supporting housing and the reliable „seamless“ screen bracket with discrete screen clamp technology to install big video walls with smallest bezels between adjacent displays. -
Page 14: Transport, Storage, Unpacking
EC-LED-SLIM Series Transport, storage, unpacking Unpacking The cube is packaged in a cardboard box. To protect the cube during transportation, the cube is wrapped in foam. The packaging is secured with packing tape. CAUTION Heavy weight and large dimensions of cube Do not attempt to unpack the cube by yourself. -
Page 15: Delivery Contents
• 1x power cable • 1x RJ45 patch cable • 1x RJ45 to RS232 adapter • 1x eyevis cube adjustment software on CD • 1x screen cleaner set • 1x user manual Screen Rear projection screen Basement version UG (optional) Side basements: •... - Page 16 (I2) (I1) 2x M6x60 (I3) 8x M6 washer DIN 125-A 2x M6x25 EC-LED-SLIM Series (L1) (L2) 16x M8x25 Feet to attach to the corner plates: • 16x M8 (N1) (N1): 4 levelling feet with eyelets to fasten to the floor •...
-
Page 17: Product Overview
EC-LED-SLIM Series Product overview This section provides an overview of the entire product, the individual parts as well as the connection and adjustment elements. NOTE The illustrations and certain descriptions in this manual may vary due to development process. Housing and backplane Fig. -
Page 18: Projector
EC-LED-SLIM Series Projector NOTE: The illustrations and certain descriptions in this manual may vary due to development process. Fig. 2: Front view of the projector Optics Control / connector module User Manual... - Page 19 EC-LED-SLIM Series Fig. 3: Rear view of the projector Rotation-Switch for projector addressing / Stand-by button Projector earthing Mains supply / power switch Version 1.2 | October 2018...
-
Page 20: Control Module
EC-LED-SLIM Series Control module RS232 OUT (RJ45) RS232 IN (RJ45) LAN (RJ45) LEDs display status DIP-Switcher (Service) DisplayPort 5V 1A max. power output Fig. 4: View of the connectors Mains supply Power switcher On / Off Fuse Mains supply Fig. 5: Mains supply User Manual... -
Page 21: Status Led
EC-LED-SLIM Series Status LED Power state The power state LED indicates whether power circuit on the board is “online”, that means whether the CPU is powered by 5V standby voltage. Signal state The signal state LED indicates the status of the video signal. If the video signal is connected and valid, the LED lights up green. -
Page 22: Assembly / Installation
EC-LED-SLIM Series Assembly / Installation This section describes how to install the cube wall. This includes assembling the basements, setting up the cubes and inserting the screens. NOTICE Before mounting the cube housing the projector must be taken out. Preparation before mounting The projector engine is mounted in the cube housing when delivered. -
Page 23: Mounting The Basement
EC-LED-SLIM Series Mounting the basement Requirements Check if the floor is suitable for installing a cube wall. Depending on the configuration, the cube wall has to be adjusted to the ground. If you use a floor load, there has to be a fixed connection of the boards to the supports. Space requirements •... -
Page 24: Assembling The Ug Basement
EC-LED-SLIM Series Assembling the UG basement (L1) (L2) 16x M8x25 16x M8 (N1) (N2) 8x M12 8x M12 (C) − (D) (N3) 4x 10 4x M8 (E) − (F) (O1) 8x M6x25 (O2) 8x M6 washer DIN 125-A 10x M10x25 Fig. -
Page 25: Mounting The Cube Housing
EC-LED-SLIM Series To assemble the basement: Connect both side basements (A) and (B) with the four crossbars (C) – (F) using the screws (H). Screw the corner plates (L1) into each bottom corner of the basement. Use the screws and washers (L2) provided. 8x M10x25 Now install the height adjustable feet (N1) to the corner plates as (I1) -
Page 26: Mounting The Ugv Basement
EC-LED-SLIM Series Mounting the UGV basement The UGV basement will arrive partly assembled and must only be adjusted in the high and leveled. Fig. 14: Completely assembled UGV basement Adjustment of the high The adjustment of the high must be done before the cube housing is mounted. So first adjust the high of the UGV before starting with other steps. -
Page 27: Adjusting The Base
EC-LED-SLIM Series Adjusting the base At the bottom inside the base are two screws for adjusting the base. Both screws must be tightened to secure a stable stand of the construction. Fig. 16: Adjusting screws The adjustment should be done after an empty cube housing was mounted. Than a stable stand is guaranteed and on the base is some pressure. -
Page 28: Mounting The Cube Housing
EC-LED-SLIM Series Mounting the cube housing For mounting the cube housing the cube housing must be laid down and the bases of the basement must be put in the cube housing. Alternatively you can mount the front screen to the basement and than put the housing on the basement. -
Page 29: Mounting To Wall
EC-LED-SLIM Series Mounting to wall Requirements for wall mounting Following requirements must be met for wall mounting: 3 Wall must be straight. 3 Wall must be able to bear the weight of the cubes. NOTE If the wall is not suitable it can lead to displacement and bracing between the cubes. NOTE The top cover must be installed on the top cubes before mounting the cube housings to the wall. - Page 30 EC-LED-SLIM Series Install the second cube exactly like the first and lean it on it. Align the second cube to the first one. Fig. 23: Two cubes side by side Bolting the cubes. The cubes must be connected to each other for better stability through the eyebolts (left picture) and a threaded bar (right picture).
- Page 31 EC-LED-SLIM Series Install the front covers of the cubes. At the bottom of the front covers are on both sides butt straps which must be inserted in the suitable holes. On the upper side the front covers must be secured with a screw on both sides. The front covers of the bigger cubes have some additional butt straps.
- Page 32 EC-LED-SLIM Series Install the projectors in the cubes again. Remind the bolts in the bottom and carefully put the projector in the cube housing placing it correctly on the bolts. Carefully move the projector until it fits to the bolts. Fig.
-
Page 33: Installing The Top Cover
EC-LED-SLIM Series Installing the top cover NOTE: The information about the installation side are always viewed from the rear. To install the top cover: Install the brackets at first. Fig. 32: Installing cover brackets Install the cover for the fresh air intake. When you are in front of the cube the fresh air intake is on the right side. - Page 34 EC-LED-SLIM Series Install the top cover. Fig. 34: Installing top cover Install the lateral exhaust plate on the left side. The exhaust plate is available in two versions: Exhaust plate (Air grille) Exhaust plate for connection of an air conditioning (optional) Fig.
- Page 35 EC-LED-SLIM Series Install the side plate on the right side. Fig. 36: Installing side plate The installation is finished. Version 1.2 | October 2018...
-
Page 36: Mounting The Projection Unit
EC-LED-SLIM Series Mounting the projection unit NOTICE Handling of the screens If the screen is handled incorrectly, the screen may be scratched or the housing damaged. ► Wear (cotton) gloves when installing the screen. ► Remove the cardboard protections from the screen before mounting it on the cube housing. -
Page 37: Cabling The Cubes
EC-LED-SLIM Series Cabling the cubes The cubes are connected together via serial cables for control and monitoring of the cubes. The cube wall is connected to the control PC via a RS232 cable. Optionally a connection between cube wall and the control PC is possible via Ethernet cable: NOTE: The RS232 to RJ45 is adapter cable with 1:1 wiring. -
Page 38: Transfer Cables Between Cubes
EC-LED-SLIM Series Transfer cables between cubes In the cube housing are holes to put cables from one cube to the other, e.g. when creating a Daisy-Chain between the projectors. Fig. 41: Slim cube housing On the side of the cube housing are square holes where the cables can be transferred to the next cube. -
Page 39: Addressing The Cubes - Cube Id
EC-LED-SLIM Series Addressing the cubes - Cube ID To control the cubes and to enable communication, each cube must be allocated with an individual address. The cubes are addressed with consecutive numbers. Looking on front side, the addressing starts on the top left cube of the video wall and continues as shown in the diagram below. -
Page 40: Setting Up Network Communication
Setting up network communication For network communication, the PC and the eyeDESIGN software must be set up. The eyevis eyeDESIGN software is the special software to create and setup video wall with eyevis products. Please refer to the manual of the eyeDESIGN software for more information. -
Page 41: Front Access (Optional)
Tools For handling the front access mechanism, you need the eyevis provided tool. Two suction cups will be add to each cube wall with front access. If more suction cups are needed then they can be ordered separately. - Page 42 EC-LED-SLIM Series Pull the screen toward you carefully. Fig. 44: Detail of the optics Fig. 45: Detail of the optics Lift the screen slightly and remove the screen carefully. User Manual...
-
Page 43: Adjusting The Geometry
A test picture is used for this purpose. With the eyevis eyeDESIGN software, the size, position, keystone distortion and rotation can be adjusted. NOTE: Test images and the software for the geometry setting refer to the eyevis software CD. Installing the software Program installation and startup The program must not be installed. -
Page 44: Main Window / Menu "Geometry
EC-LED-SLIM Series User interface of the software Main window / menu “Geometry” All functions for adjusting geometry of the cube wall are in this window, located in the section “Geometry”. In the lower part choose the tab “Cube Geometry”. Wall area Shows the cubes of the video wall. - Page 45 EC-LED-SLIM Series Button Horizontal image position Vertical image position Rotation Image size Vertical keystone Horizontal keystone NOTICE eyeDESIGN manual For more details about the eyeDESIGN software please refer the eyeDESIGN manual. Version 1.2 | October 2018...
-
Page 46: Geometry Alignment With The Mirror
EC-LED-SLIM Series Geometry alignment with the mirror Sometimes there is the need to make the final alignment of the geometry with the mirror. On the mirror you can find 8 screws for the alignment. This screws can be reached from front or back side. The geometry alignment with the mirror should be the last step if the alignment does not fit with the software. -
Page 47: Side Focus
EC-LED-SLIM Series To adjust the focus: Loosen the screw that secure the ring of the focus. You can now turn the ring to left / right. Adjust the focus of the lens by turning the ring of the focus to the left or right. -
Page 48: Operation
EC-LED-SLIM Series Operation NOTICE Shocks and vibrations Shocks and vibrations can damage the cube. ► Protect the cubes from heavy shocks and impacts. NOTICE Switching on the cube after a power failure Switching on the cubes immediately after a power failure can damage the cubes. -
Page 49: Cleaning The Screen Surface
Cleaning the screen surface NOTICE Unsuitable cleaning substances Unsuitable cleaning substances can damage the screen surface. ► Only use the screen cleaner recommended by eyevis to clean the screen. ► NEVER spray directly on the screen! This may damage the screen compound. ►... -
Page 50: Malfunctions And Troubleshooting
EC-LED-SLIM Series Malfunctions and troubleshooting Before calling your service partner, please check the following table for a possible cause to the trouble you are currently experiencing. NOTE: The devices may only be opened by specially trained and qualified personnel. Typical problem solving No picture ►... -
Page 51: Possible Causes Of Malfunctions And Problems
EC-LED-SLIM Series Possible causes of malfunctions and problems CAUTION Smoke or peculiar smells If you continue to use the device when smoke or peculiar smells are coming from the cube housing, it may cause a fire or an electric shock. ►... -
Page 52: Warranty Terms And Conditions
Repair and return The defective product has to be sent to eyevis by the customer and is repaired within 21 days. In this case, eyevis bears the costs for required components that may be required or the arising working time, as well as for the costs for reshipment to the customer. -
Page 53: Warranty On Repairs
General exclusions This warranty covers only malfunction due to any defect in material and/or workmanship of a product put into circulation by the eyevis. A guarantee is therefore excluded for any faults and defects beyond the responsibility of the eyevis, particularly in cases of: •... -
Page 54: Advised Procedure For Raising A Claim
The customer has to pack the defective device properly in the original box, to label it as fragile, and to attach the RMA number visibly on the box. eyevis can provide a new original box on request. The customer is liable for damages caused by the use of improper or unsuitable packaging. -
Page 55: Limitations Of Liability
The warranty shall not apply to repairs or service necessitated by normal wear and tear or for lack of reasonable and proper maintenance. As far as the liability of eyevis is excluded or limited, this also applies to the personal compensation liability of its staff, employees, associated employees, agents, and auxiliary persons. -
Page 56: Appendix
EC-LED-SLIM Series Appendix Appendix: Technical Specifications General technical specifications Resolution: 1920 x 1080 pixel (Full HD / 16:9) Processing: 1080p / 0.65 inch DMD Contrast Ratio: 1000:1 (typ. / static contrast) Brightness Uniformity: ≥ 95% (SUR25) Input: Signal: 1x DisplayPort 1.2 | Communication: RS232 (in and out for Daisy Chain), 1x LAN Supported Frame Rates: 48 to 64 Hz (non-stereo), 120 Hz (active stereo) -
Page 57: Appendix: Technical Specifications
EC-LED-SLIM Series Appendix: Technical Specifications EC-50-LHD-ISE-SLIM Type: EC-50-LHD-ISE-SLIM eyevis Cube 50” with Cluster-LED illumination and native Full HD resolution Description: Digital 50 inch DLP®-rear-projection unit with slim design, stackable and addible, for data and video representation, incl. preparation for wall... -
Page 58: Index
EC-LED-SLIM Series Index ADDRESS (ID) SWITCH OPERATION ADDRESSING OVERVIEW ASSEMBLY PACKAGING CARE PROJECTION UNIT CENTRE FOCUS PROJECTOR CLAIM COSTS LEGAL LIMITATIONS ROTATION SWITCHES PACKING RAISING TRANSPORT SERIAL NUMBER CLEANING SERVICE COMMUNICATION SIDE FOCUS CONTROL MODULE SOFTWARE COSTS INSTALLING STARTING USER INTERFACE STATUS LED DELIVERY CONTENTS STORAGE... - Page 59 Notes:...
- Page 60 GmbH Hundsschleestraße 23 D-72766 Reutlingen Germany Phone: +49 (0)7121-4 33 03-0 Fax: +49 (0)7121-4 33 03-22 Hotline: +49 (0)7121-4 33 03-290 web: www.eyevis.de e-mail: info@eyevis.de service@eyevis.de service: Version: 1.2 | October 2018 Copyright © 2018 eyevis GmbH. All rights reserved.
