Summary of Contents for Raveon RV-Z50

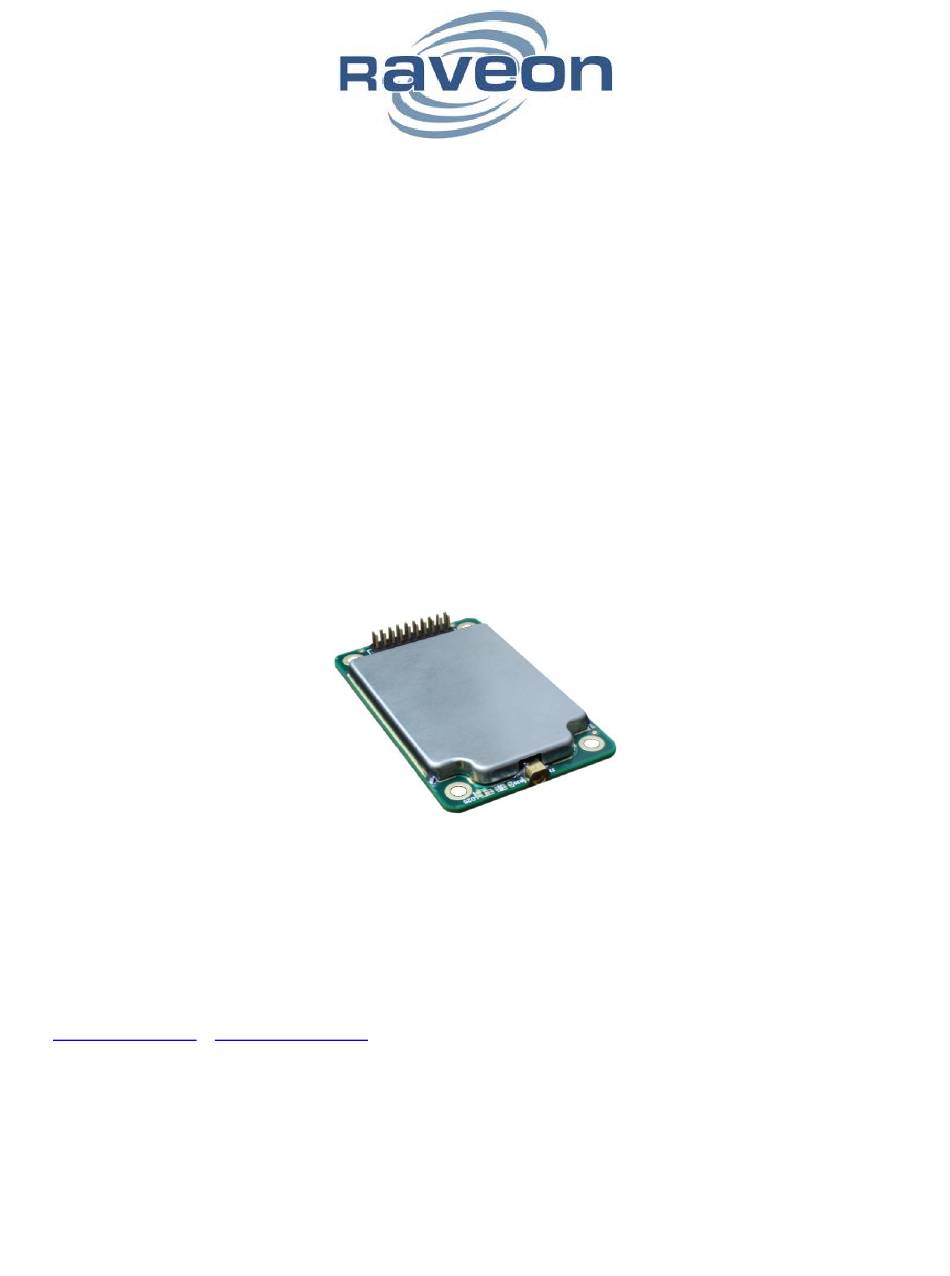

- Page 1 RV-Z50 Miniature 3G Cellular Wireless Modem and GPS Transponder Quick Start Guide Revision B1 (July 6, 2017) Raveon Technologies Corporation www.raveon.com www.ravtrack.com...
-
Page 2: Table Of Contents
RV-Z50-E Quick Start 1 Contents Overview ............................... 4 Evaluation Kit ............................4 Mechanical ............................5 Input and Output ..........................5 5.1.1 LED ............................5 5.1.2 Universal Wireless Radio Connector ..................5 5.1.3 Connecting to Power ......................6 5.1.4 RF Antenna Connection ......................6 5.1.5... - Page 3 RV-Z50-E Quick Start SIM Card ............................14 7.7.1 Acquiring a SIM card ......................14 7.7.2 Static IP vs. Dynamic IP ....................... 14 7.7.3 Installing the SIM ........................ 15 Factory Default Settings ......................16 NOTICE ..............................16 Safety Training information ......................16 Regulatory Agency Compliance Information ................
-
Page 4: Overview
Evaluation Kit An evaluation kit may be used to test the RV-Z50-E. Contact sales@raveon.com to request your evaluation kit. Included in the kit is a serial data cable, power cable, antenna, and adapter board. An... -
Page 5: Mechanical
LED on the module, saving power consumption. 5.1.2 Universal Wireless Radio Connector Raveon utilizes a universal connector configuration on many of its radio modem modules, so the Z50 is interchangeable with dozens of other radio modems. The UWRC connector pin-out is as shown below... -
Page 6: Connecting To Power
RV-Z50-E Quick Start The primary connector is fully pin-for-pin compatible with M8 UHF, VHF, 220MHZ modems, and V50 ISM band radio modems. By default, the serial port is set to 38400 baud, 8 data bits, 1 stop bit, no parity bit. - Page 7 RV-Z50-E Quick Start UMTS Frequency Bands Band Name High (MHz) High Spacing (MHz) 1900 PCS 1805 1880 1850 1910...
-
Page 8: Operational Modes And Configuration
RV-Z50-E Quick Start 6 Operational Modes and Configuration 6.1 Carrier Data Connections Before a Z50 can be used the first time, it must be configured for connection to the carrier’s cellular network. The following commands describe how to configure the Z50’s connectivity to the carrier. -
Page 9: Data Reception
In order to receive data from the Z50, set up a UDP or TCP server and set that server’s hostname and port as the destination in the Z50. Raveon offers data server solutions. For more information, contact Raveon at sales@raveon.com 6.2.2.1 How to Set Up a Test Server... -
Page 10: Idle Transmission Rate
6.6.1 GPS Position and Status When the modem receives a position report and status from another modem, it will send this information out the serial port, formatted in Raveon’s $PRAVE message format. Change the position report output format with the OUTPUT x command. -
Page 11: Local Nmea Data From The Internal Gps
6.8 Pass-Through Mode Pass-Through Mode gives you direct control of the Sierra Wireless HL8548 module. To enter Pass-Through Mode put the RV-Z50 into command mode, refer to section 5.2. Once in command mode send the command ATPT. To exit command mode, send the escape sequence ++++. -
Page 12: Command Mode
Series – AT Commands Interface Guide located at http://source.sierrawireless.com. Note: Changing setting of the Sierra Wireless HL8548 while in Pass-Through Mode may affect the operation of the RV-Z50 in other modes. 7 Command Mode Command Mode is used to program and configure the modem. This mode is separate from data mode and will not transmit received data over-the-air, instead executing commands detailed in this manual. -
Page 13: Exiting Command Mode
To exit command mode and return to data mode, the command EXIT may be used. Alternatively, command mode will timeout after a configurable amount of time, by default 60 seconds. 7.5 Configuration Commands The following commands are standard Raveon commands implemented by the modem. Factory Command... -
Page 14: Data Communication Commands
7.7.1 Acquiring a SIM card A SIM card for the Z50 may be acquired from Raveon when you purchase the Z50, or you may acquire it from the carrier you choose or an MVNO. The Z50 is PTCRB certified and will work with any carrier or MVNO that accepts PTCRB certified devices. -
Page 15: Installing The Sim
RV-Z50-E Quick Start 7.7.3 Installing the SIM To install the SIM card into the Z50: 1. Unlock the SIM card holder by sliding the lock towards the center. 2. Open Hinge of the SIM card holder. 3. Gently slide the SIM card into the hinging portion of the SIM card holder, it will only fit one way. -
Page 16: Factory Default Settings
This warranty applies to the specific product described in the literature wherein this warranty information is included. If within one year from date of purchase, this product fails due to a defect in material or workmanship, Raveon Technologies, Incorporated will repair or replace it, at Raveon's sole discretion. This warranty is... - Page 17 The exclusive remedy for a claim under this warranty shall be limited to the repair or replacement, at Raveon Technologies. This warranty does not apply to: (a) product damage caused by accident, dropping or abuse in handling, or any negligent use;...
