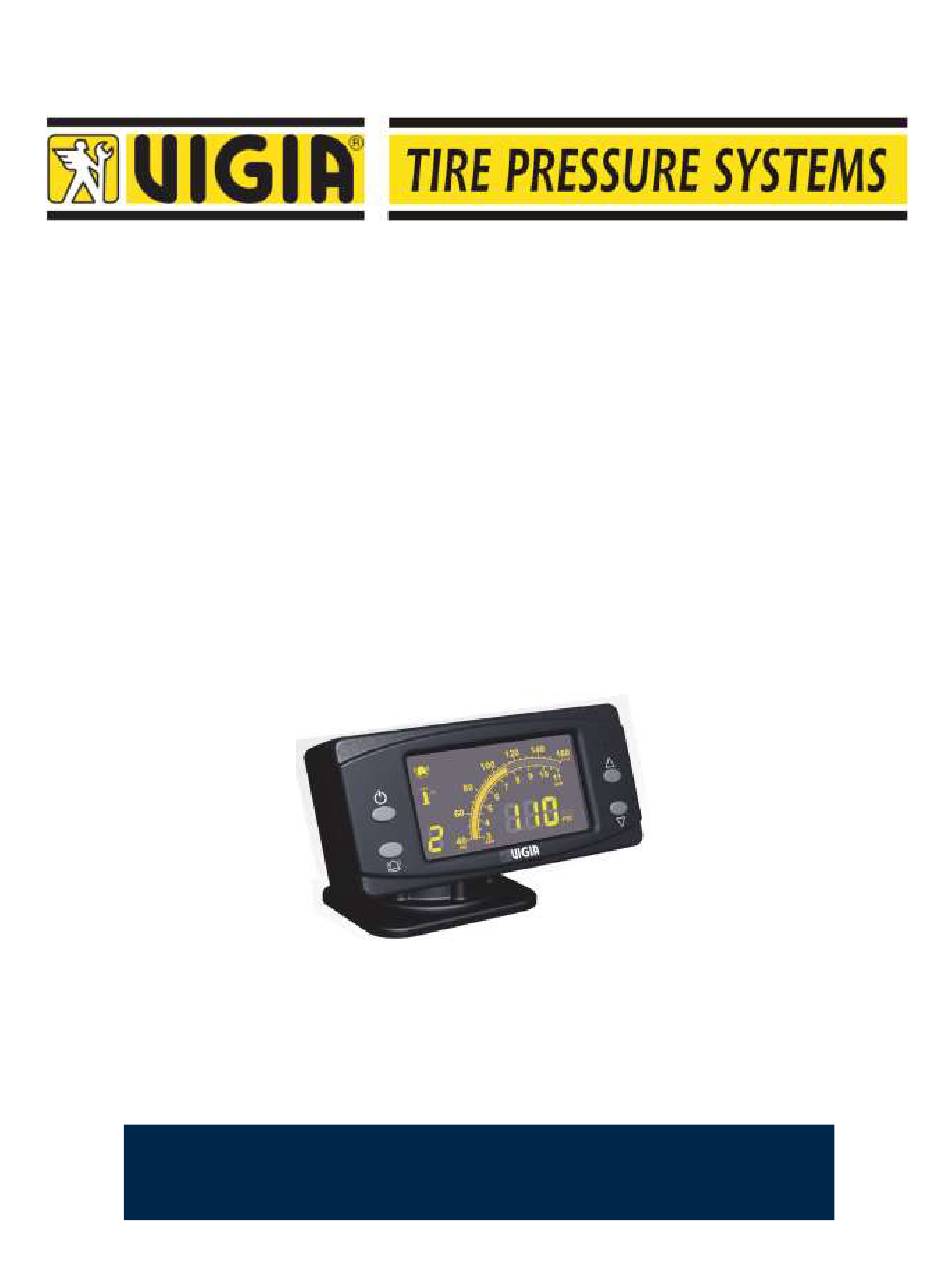

- Page 1 NM343 EXTERNAL SYSTEM FOR TRUCKS AND BUSES INSTALLATION MANUAL VERSION 1-2013 ORDER ON-LINE www.vigia.ca / 1-888 438-8444...
- Page 3 Information contained in this manual is subject to change. Col-Ven S.A. reserves the right, without notice, to make changes in equipment design or components as progress in engineering, manufacturing or technology may warrant. World-wide Patents VIGIA is a trademark of Col-Ven S.A.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1 - VIGIA Automatic Tire Pressure System Features - Operation 2 - System Components 2.1 - Rotor mountings A) Disks B) Stars C) Threaded caps D) Brackets for Steering Wheels 2.2 - Rotor Installation Procedure 2.3 - Tire valves... - Page 5 The VIGIA NM343 display module generates digital information on the status of tire pressures and system that is transmitted via its interface to the existing vehicle’s satellite module and ultimately to the user’s telematics software.
-
Page 6: System Components
VIGIA provides different rotor mountings for different hub types. A) DISKS To install the disks, replace nuts or bolts in the hub with Vigia stud bolts according to the Table in next page (Fig. 1). Vigia stud bolts are available for different thread sizes and lengths. - Page 7 INSTALLATION PROCEDURE Determine the quantity of nuts or bolts in the hub. Assign a number to each one, # 1 corresponding to the one in the highest position, numbering the rest clockwise. The following table shows all possible hub clamp nut or bolt quantities in the first column. With this information, determine the necessary stud bolt quantity (column 2), the nuts or bolts to be replaced (column 3) and the disk lines to be drilled (column 4).
- Page 8 DISK FASTENING EXAMPLE An axle with a 10-nut hub is shown. The fastening nuts are numbered as specified in step 2 (Fig. 3). Figure 3 From Table 1, it is determined that for a 10-nut hub, 3 stud bolts should be used to replace nuts numbers 1, 4 and 8, which must be taken out and replaced with the stud bolts provided with the system (Fig.
-
Page 9: B) Stars
This element can replace the disks in units whose hubs have 3, 6, 9, 12, or 15 fastening nuts or bolts. Three of the nuts or bolts must be replaced by Vigia stud bolts that are provided with the system (Fig. 8). - Page 10 INSTALLATION PROCEDURE Determine the quantity of nuts or bolts in the hub. Assign a number to each one, with # 1 corresponding to the one in the highest position; continue clockwise numbering the rest (Fig. 9). The following table shows all possible hub clamp nut or bolt quantities in the first column.
-
Page 11: C) Threaded Caps
Take the original threaded cap out (in models with oil, first collect the oil in a clean container). Secure the provided VIGIA threaded cap in place. It must be the one specific to the unit. The model with a central hole is for units carrying oil. -
Page 12: D) Brackets For Steering Wheels
Fig. 24 2.3 - TIRE VALVES VIGIA offers different tire valves. All tire valves have a check valve at their brass end preventing air to escape from the tire. a) Hose and Tire valve 50 cm (Fig. 25): for inside tires in dual-tire configurations. -
Page 13: Connecting Valves To Rotor
Screw on the VIGIA valve, lightly tightening it with a wrench. Ensure that the tire pressure is lower than the desired calibrated tire pressure. VIGIA hose and tire valves must not rub against the wheel rims and/or hubs. Important: Remove any tire extensions. Fig. 28 CONNECTING TIRE VALVES TO ROTOR Insert the Nipples for Rotor (Fig. - Page 14 Screw the End Hose Connectors (Fig. 31) to the Nipples for Rotor and torque to approximately 1 Lb./Ft. (Fig. 32). Fig. 31 Fig. 32 Extend tire valve hose to the rotor, making sure that it is not touching the rotor mounting, hub or wheel rim.
-
Page 15: Body Couplings
2.4 - BODY COUPLINGS VIGIA offers three models of body couplings (Fig. 34): a) Double outlet b) Standard c) Quick connect Fig. 34 All models include a spacer that can be placed either inside or outside the body, fender or other mounting part, depending on vehicle characteristics (Fig. -
Page 16: A-Steering Axles
A-STEERING AXLES Align the steering wheels parallel to the truck’s body. Hold a plumb from the fender, so that the string's vertical line crosses the rotor's centre. Mark a point 50 mm (2") from the plumb line, towards the back of the vehicle and as close as possible to the edge of the fender (Fig. -
Page 17: C) Non-Steering Axles Without Fenders
B2. Double axles (Fig. 40) Note: This procedure applies only when the air pressure in tires of both axles will be the same. If that is not the case, refer to the procedure for single axles. Using a plumb, determine the centre line between the axles. On the centre line, define a point at the approximate height of the tires, with respect to floor level. - Page 18 Tighten with a torque of approximately 115 lbs/sqft. (Fig. 47). The body coupling mounting pipe must remain with the VIGIA hose's outlet hole facing down. Fig. 46 Fig. 47 Fig. 48 Install body coupling to the adjustable mounting pipe as indicated in Figure 48.
- Page 19 115 lbs/sqft. The body coupling mounting pipe must remain with the VIGIA hose's outlet hole facing down. Install body coupling to the adjustable mounting pipe as indicated in Figure 48 above. Note that body coupling’s spacer is removed.
- Page 20 Optional Adjustable body coupling mounting pipe with Bolt NF 5/8” x 2 ½” Bored Ø 6.25 mm To be used when the Vigia hose would become strangled should the standard adjustable pipe is employed. Figure 51 shows installation and parts required for this mounting pipe.
-
Page 21: Connection Between Body Couplings And Rotor
CONNECTION BETWEEN BODY COUPLINGS AND ROTOR a) Set Assembly (Fig. 52) Fig. 52... - Page 22 Fully screw the tightening nut to the bend. Insert the plastic washer as shown in the drawing. Screw the bend into the rotor cover until the plastic washer makes contact with the rotor cover’s end. Screw the stainless steel spring to the bend’s open end. The stainless steel spring has a bigger diameter on one end –...
-
Page 23: Hose
Measure the stainless steel pipe length. To that end, position the assembled rotor cover and pipe as shown in the drawings below. Cut stainless steel pipe if necessary. NON STEERING AXLES STEERING AXLES CUT HERE CUT HERE When cutting the stainless steel pipe, use the appro- priate tool to eliminate any sharp edges. - Page 24 10. Pass the hose through the stainless steel pipe and screw STANDARD BODY the spring’s free end to the body coupling. NIPPLE COUPLING 5/16” FOR BODY SPRING 15 x 90 MM. - COUPLING STAINLESS STEEL STAINLESS STEEL PIPE 60 CM. PUSH-LOK HOSEPIPE 11.
- Page 25 13. Screw the end hose connector to the rotor. 14. Insert the hose to the end hose connector. 15. Install the rotor cover and tighten its nut. 16. The rotor cover must remain parallel to the tire. Verify that the stain- less steel pipe is not rubbing against the tire, or that it is not too far from the tire.
-
Page 26: Installation Procedure
2.5 - HOSE INSTALLATION PROCEDURE Given the vast variety of vehicles on the market today, the hose installation will be subjected to the installer's criteria. Nevertheless, the following recommendations will facilitate and optimize the installation: Use only the hose provided with the system. Secure the hose approximately every 40 cm (16"). -
Page 27: General Diagram
A tractor and trailer is shown. NM 343 CONNECTION PROCEDURE The VIGIA system comes with a full range of joints (Fig. 63) to satisfy multiple needs. The coupling between hose and joints is similar in each case, and a fastening nut is always provided to prevent the hose from being disconnected. - Page 28 For this coupling, a connection set is provided (Fig. 65). Installation procedure: Affix the end that has the 5/16" straight chassis joint (A) to the tractor in a location near the brake hose connection. If necessary, use the mounting provided (E). Affix the connection hose mounting with its cap (B) in an easy-to-reach location near the straight joint (A).
-
Page 29: Air Filter
2.6 - AIR FILTER (Fig. 84) Purpose: To filter the air entering the VIGIA system, retaining solid impurities and water condensation, which are returned to the compressed air tank. Location: 1) Select a secondary air tank in the truck or bus operating at the same pressure as the compressor. - Page 30 (Fig. 87). Note: 1) The air filter will prevent problems ONLY VIGIA system; therefore the air tanks should be drained periodically. 2) The air filter must be cleaned at least twice a year to ensure proper operation.
-
Page 31: Control And Display Modules
The digital Display Module NM343 shows tire pressure for each circuit connected to it to a maximum of nine. Each circuit can be monitored sequentially or on demand. Display Module NM343 is for interior use only. LOCATION OF MODULES DISPLAY MODULE... - Page 32 Location of Parts and components 1- Electrical connector (can bus) to the display module and to the electrical power socket. 2- Voltage indicator (12 or 24 V.). 3- Air Intake from air tank. 4- Pressure 1 to tires. 5- Pressure 2 to tires. 6- Pressure 3 to tires.
-
Page 33: Display Module Nm343
Important: Control module must be installed in the position indicated below to avoid water penetrations. DISPLAY MODULE NM343 The digital display shows tire pressure for each circuit connected to it to a maximum of nine. Each circuit can be monitored sequentially or on demand. - Page 34 Operation...
- Page 35 3 - Air Leaks The Vigia System, if activated, will automatically start inflation to a circuit with 3 or more PSI differential between actual and set tire pressure. Depending on the magnitude of the air loss, the system will warn the driver differently: a) 3 PSI drop takes more than 1.5 minutes to generate:...
- Page 36 3 PSI drop takes 30 seconds or less to generate: Automatic inflation, turns on intermittently and two beeps every 5 seconds. 3 PSI drop takes 2 seconds or less to generate: Automatic inflation, turns on permanently and three beeps every 2 seconds. Note: It there are air leaks in two or more circuits, only those circuit pressures will be displayed and in sequential order.
- Page 37 Installation Procedure A - Using support case with base B - Using tapping screws...
- Page 38 C – Using DIN format box To remove box remove first both lateral covers and press inwards the 4 locks.
-
Page 39: Pneumatic And Electrical Connections
3 – PNEUMATIC AND ELECTRICAL CONNECTIONS TO SATELLITE MODULE CONTACT POINT Very Important: Match the guide in the connector plug to that in the IGNITIÓN KEY module socket. Do not force this connection. YELLOW GREEN WHITE-R ORIGINAL FUSE BOX 3 x 0.35 FUSE 3A BLACK CIRCUIT 1... -
Page 40: Tire Pressure Calibration
Connection to Satellite Module The Vigia electrical connection provides the wires that relay the digital information to the existing satellite module in the vehicle (please see diagram above.). Specific connection instructions should be requested to the telematics systems provider. - Page 41 Tire Pressures can be set up to 160 PSI (11 BAR). CALIBRATION CALIBRATION Turn the ignition key to contact. TOOL Insert the Calibration Tool into the control for calibration and press for four seconds until a continuous beep. Display is now in calibration mode. Using select PSI or BAR.
-
Page 42: Final System Testing (In Operation)
5 - FINAL SYSTEM TESTING (in operation) 1- Verify that there are no air leaks in the system by turning off the system. If there are any leaks, the pressure readings will drop. To detect air leaks, use soapy water and monitor all connections and joints. -
Page 43: Recommendations To The Installer
If the display reading falls quickly, the leak is located in the system network between the VIGIA tire valve and the control module. b) If the display reading falls very slowly, the leak is located in the tire (puncture) or a VIGIA tire valve is defective or loosely attached to the tire stem. - Page 44 1-Overheating caused by 1-With “cold” tires reset the 12% from the set calibration – lower calibration than the one VIGIA system to the pressure without alarm or warnings- set by tire manufacturers. indicated by tire after having rolled the unit.
- Page 45 5-Control module damage. 5-Replace control module. Pressure falls and system 1-Calibration altered. 1-Calibratet the VIGIA Display does not recover – Indicator Module again. off. 2-Display module damage. 2-Replace display module. The air continues to leak from 1-Leak in tire valves.
- Page 46 When disconnecting trailer 1-Leak in the fixed connection 1-a) With the system in from truck, turns. on. valve. operation, activate the valve piston. b) Disconnect the system, disconnect the hose and blow on the other end, adding soapy water. c) Replace if necessary. Deflated tire and display 1-Obstructed rotor, body 1-Replace affected element.
- Page 47 INSTALLATION MAUNUAL – VIGIA NM343 REVISION 1-2013 P.O.Box 1352 – 1500 Avenue Road P.O.Box 1352 1500 Avenue Road Toronto, Ontario M5M 0A1 CANADA Ruta 11 Km.814 - Guadalupe Norte Prov. de Santa Fe (S3574XAB) ARGENTINA ORDER ON-LINE www.vigia.ca / 1-888 438-8444...
