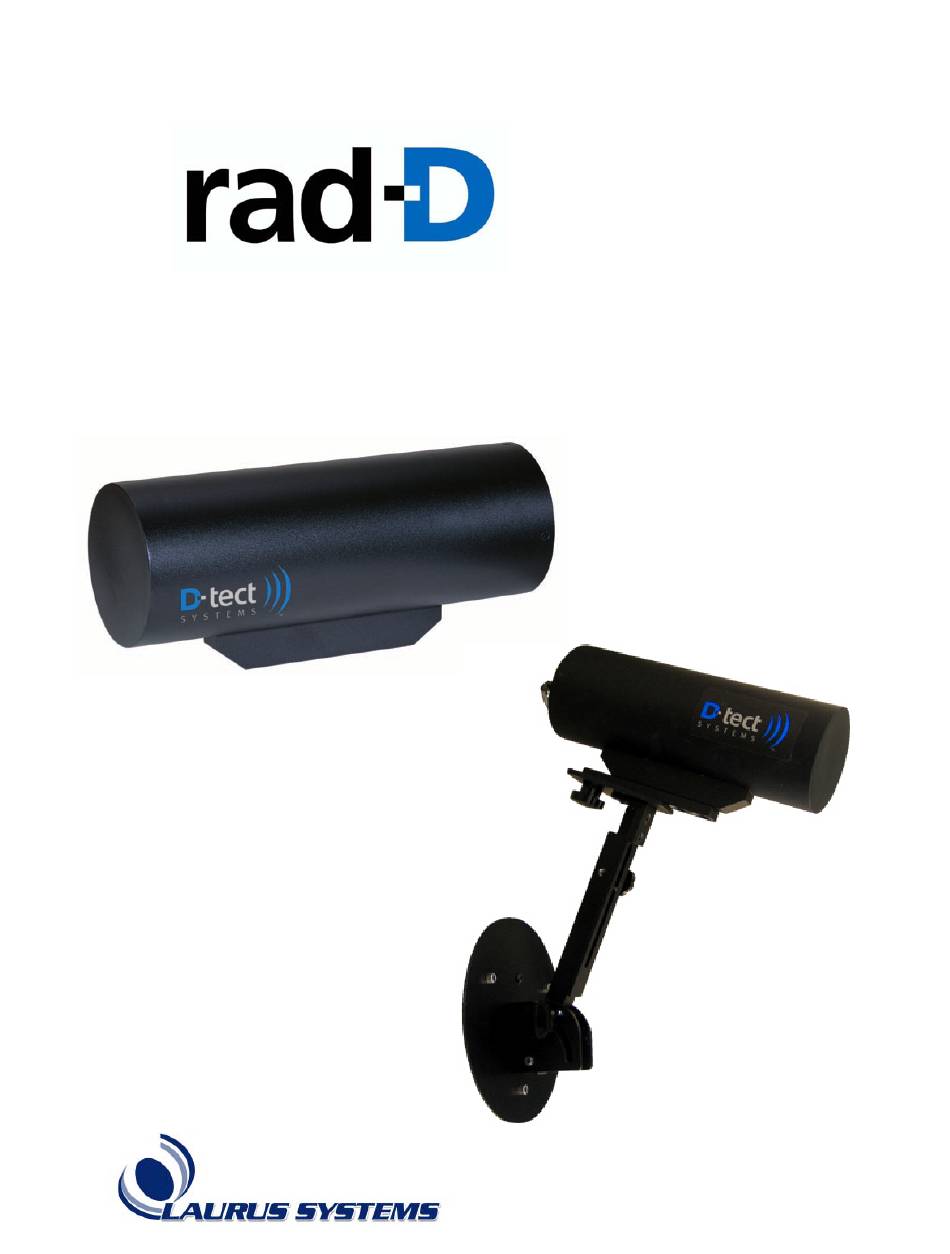

- Page 1 Users Manual LAURUS Systems, Inc. - Ph: 410-465-5558 - Fax: 410-465-5257 - www.LaurusSystems.com...
- Page 2 System Components A rad-D system consists of one to four detectors (Figure 1), an Alarm Display Panel (Figure 2) and optional PRM Mounting Bracket (Figure 3). There are two types of detectors, a gamma detector and a neutron detector.
- Page 3 Alarm Display Panel: Locate the Alarm Display Panel near the operator or where it can be read easily, unless your rad-D is going to be read remotely via PC. The Alarm Display Panel must be within reach of a power plug and within 50 feet of all detectors.
- Page 4 It is also used to adjust the height of the rad-D from the base. The height range is from 14”...
- Page 5 When not alarming, the rad-D information panel displays the measured gamma counts per second and measured neutrons per second for each detector in a repeating display cycle. If your rad-D system consists of four gamma detectors, the display would show the gammas/second from detector #1, indicated by the 1 LED light below the gamma count display being lit.
- Page 6 Problems or Failure Contact Laurus Systems at (410) 465-5558 Warnings Do not open any rad-D component while it is still plugged into a power source. Please use proper care and good practices when lifting heavy rad-D components. Notification This equipment has been tested and found to comply with the limits for a Class B digital device pursuant...
- Page 7 This warranty does not extend to other products, including batteries. D-tect Systems, at its option, will at no charge either repair, replace or refund the purchase price of any Products that do not conform with this warranty. Repair may include the replacement of parts with functionally equivalent reconditioned or new parts.
- Page 8 Patent and Software Provisions D-tect Systems will defend at its own expense, any suit brought against you to the extent that it is based on a claim that the Products infringe a United States patent. D-tect Systems will pay those costs and damages finally awarded against you in any such suit which is attributable to any such claim.
