Summary of Contents for Semacon S-1600 Series

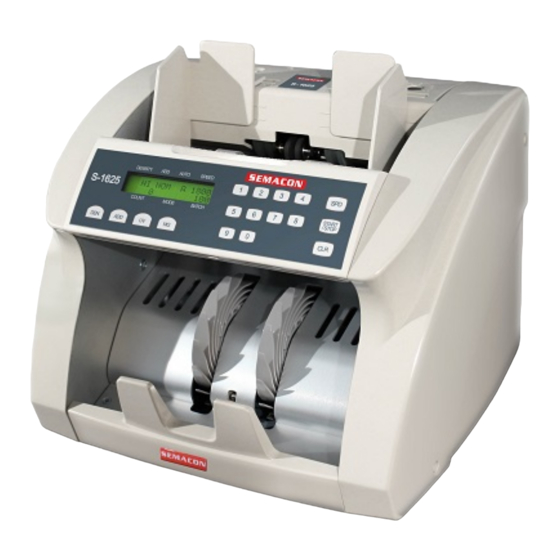

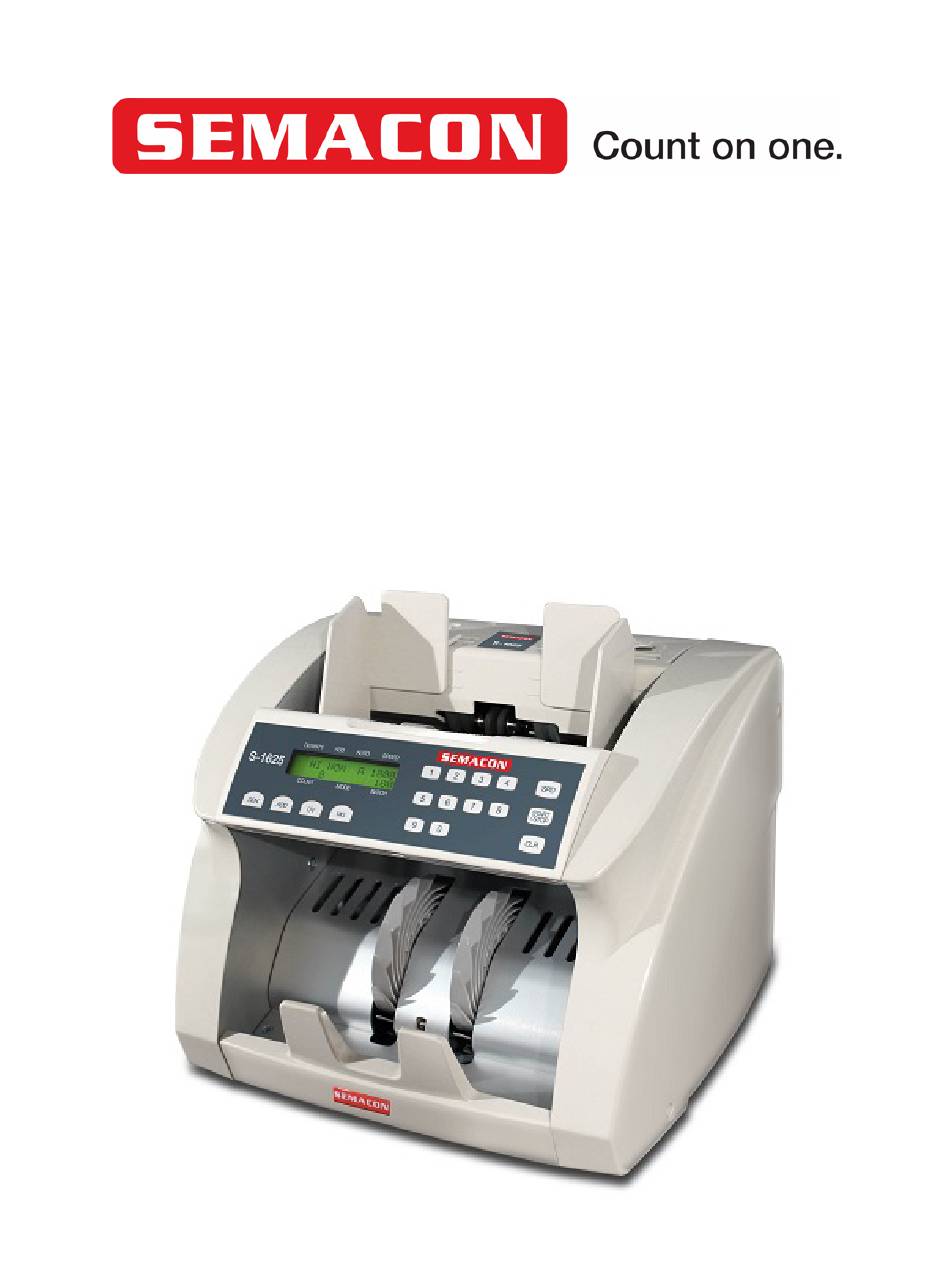

- Page 1 S-1600 Series Currency Counter Operating Manual Models S-1600, S-1615 and S-1625 Including "V" Series...
-
Page 2: Table Of Contents
Feed Tension Adjustment Startup Malfunction Codes Counting Error Codes Technical Specifications Copyright © 2011-2014 Semacon Business Machines, Inc. All Rights Reserved. No part of this document may be copied or reproduced for any reason without prior written permission from Semacon. Revision M09... -
Page 3: Introduction
SEMACON S-1600 SERIES CURRENCY COUNTERS This Operating Manual serves as a general guide for operating your Semacon S-1600 Series Currency Counter. This machine is a heavy-duty, premium bank grade currency counter designed to save time and labor while counting banknotes in bulk. Before starting, please read the manual thoroughly to become familiar with the operation and functions of the machine. -
Page 4: Front View Counter Diagram
S-1600 SERIES CURRENCY COUNTER FRONT VIEW 1) Carrying Handle 2) Sliding Hopper Guides 3) Separation Mechanism 4) LCD Display 5) Left Side Cover 6) Stacker Rack 7) Feed Deck 8) Control Panel 9) Stacker Roller 10) Right Side Cover 11) Feed Tension Adjustment Knob... -
Page 5: Rear View Counter Diagram
S-1600 SERIES CURRENCY COUNTER REAR VIEW 12) Upper Cover 13) Power Switch 14) Power Socket 15) Serial Number Label 16) External Display Connector 17) Rear Cover Figure 2... -
Page 6: Control Panel Overview
CONTROL PANEL OVERVIEW Model S-1600 Model S-1615 with Ultraviolet Counterfeit Detection Model S-1625 with Ultraviolet and Magnetic Counterfeit Detection FUNCTION Starts, restarts or stops the counting process. START/STOP Clears the counting number display. Switches between ADD mode and NORM (or NOM) mode. Changes the counting speed. -
Page 7: Control Panel Functions
CONTROL PANEL FUNCTIONS The START/STOP button is used to restart the counting process after the machine stops during batch counting or after an error occurs. The number buttons are used for selecting the batch stop setting. In this mode, the counter will stop each time the batch stop setting is reached and the operator then removes the batch from the stacker. -
Page 8: Operating Instructions Overview
OPERATING INSTRUCTIONS OVERVIEW Startup 1) Turn on the power switch located on the back of the counter near the power socket. The display will read, SELF TESTING…, indicating that the unit is completing a self-check process and checking each sensor. 2) SELF TEST PASSED will appear below SELF TESTING…... -
Page 9: Modes And Functions
MODES AND FUNCTIONS Add Mode Adding during count mode is performed by pressing the ADD button (NORM will switch to ADD beneath ADD on the display). With this mode turned on, the machine will add the count for each stack of bills to the previous total. NOTE: Add mode can also be used when batching if the operator selects a batch stop setting while the ADD mode is activated. -
Page 10: Value Mode (V Models Only)
VALUE MODE ("V" Models Only) Models S-1600V, S-1615V and S-1625V offer the Value Mode feature. This feature enables the operator to select a denomination on the control panel so the counting results are displayed in dollars. On these models, a VAL button is included on the control panel to the left of the ADD button. -
Page 11: Counterfeit Detection
COUNTERFEIT DETECTION Certain counter models contain a sophisticated counterfeit detection system (models S-1615 and S-1625). While the counterfeit detection features are designed to be as accurate as possible, they are specifically designed to pinpoint suspect banknotes that are believed to have a high probability of being counterfeit. -
Page 12: Maintenance
Depending on your usage level, your counter should be professionally cleaned and serviced periodically by your authorized Semacon distributor or it can be sent to the Semacon Service Center for a general preventative cleaning & maintenance service. Contact your distributor to determine the proper location for service. -
Page 13: Feed Tension Adjustment
-1 or -2. IMPORTANT! The dot on the knob should never be adjusted past -4 or +4. Contact your authorized Semacon service provider if your machine still receives error messages after the feed tension has been adjusted to either of these points. -
Page 14: Startup Malfunction Codes
If this does not correct the problem, your counter should be sent to an authorized Semacon service center for repair. The right count sensor is covered Clean the sensor with a can of... -
Page 15: Counting Error Codes
If you reach +4 and your machine is still HALF RIGHT Half Note Detection Alert receiving errors, please contact your Jam Detection Alert JAM LEFT authorized Semacon service facility for further assistance. JAM RIGHT Jam Detection Alert JAM GAP Jam Detection Alert... -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS 1) Ambient Temperature 32 - 104ºF 0 - 40ºC 2) Ambient Humidity 30 – 90% 3) Banknote Feeding System ™ SmartFeed Friction Roller System 4) Counting Speed 1000/1200/1500/1800 Notes Per Minute 5) Note Size 100 x 50 mm to 193 x 100 mm 6) Hopper Capacity 250 –... - Page 17 6625 Top Gun Street, Suite 107 San Diego, CA 92121 USA Tel: 858-638-0100 Fax: 858-638-0110 www.semacon.com...
