PORTABLE GAS WATER HEATER
Thank you for purchasing our instant gas water heater. Read this manual before
installing and operating, and keep it for future reference.
General Safety................................................. .............................................1
Features......................................................................................................6
Specifications...............................................................................................7
Parts Name and Dimensions...............................................................................8
Installation...................................................................... ...........................20
Operation Method.........................................................................................25
Parts Replacement......................................................................................... ......27
Cleaning.........................................................................................................28
Maintenance.................................................................................................29
Accessories List............................................................................................29
Trouble Shooting..........................................................................................30
Circuit Diagram.............................................................................................31

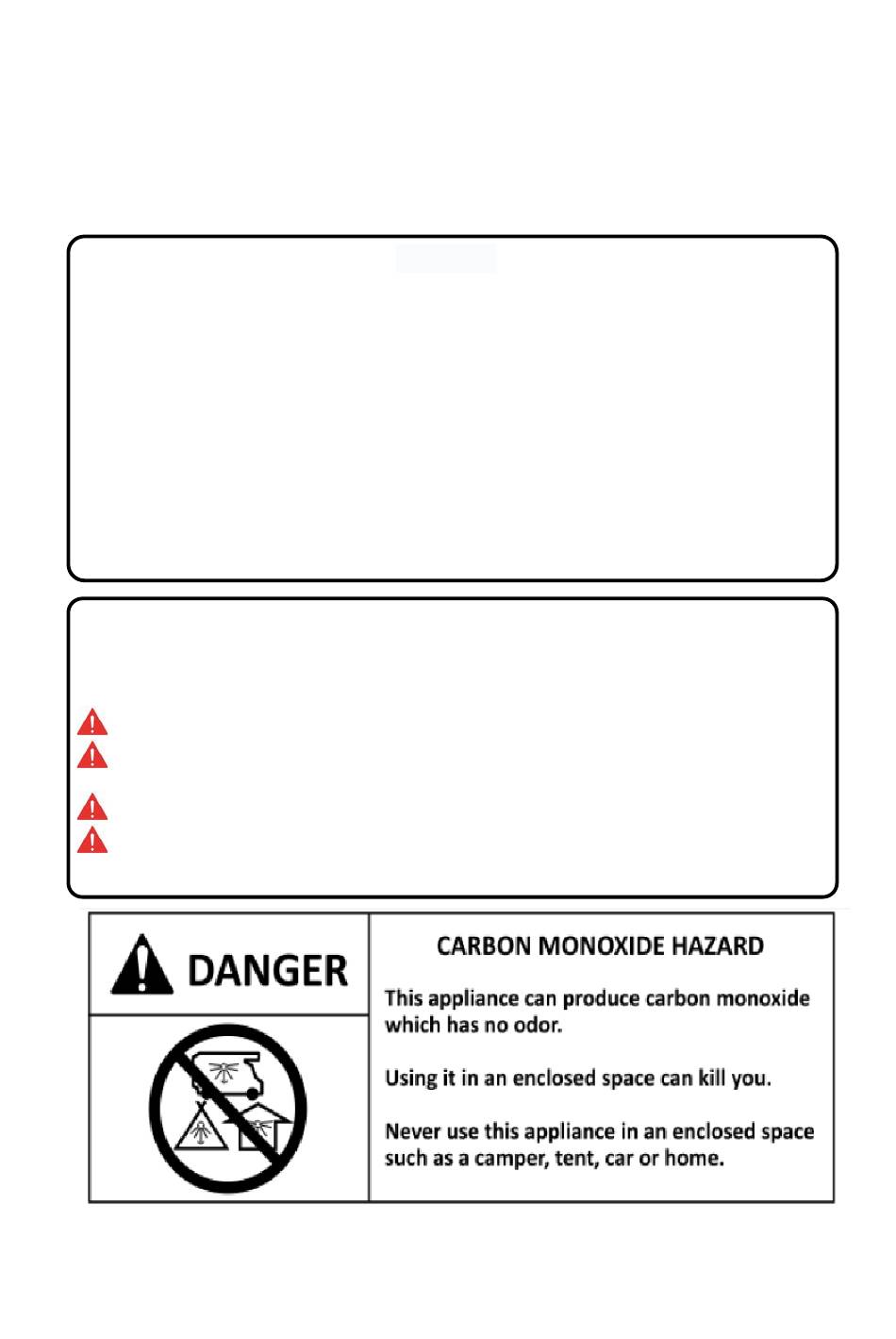

READ THE SAFETY INFORMATION
All safety messages will follow the safety alert symbol and the words: "DANGER","WARNING",
"CAUTION" or "NOTICE".
These words mean:
DANGER - An imminently hazardous situation that will result in death or serious injury.
WARNING - A potentially hazardous situation that could result in death or serious injury and/or
damage to property.
CAUTION - A potentially hazardous situation that may result in minor or moderate injury.
NOTICE: Attention is called to observe a specified procedure or maintain a specific condition.
USER'S MANUAL
CampChamp by EZ Tankless, Inc.
Contents
1
Advertisement
Table of Contents
Related Manuals for EZ TANKLESS CampChamp
Summary of Contents for EZ TANKLESS CampChamp
-
Page 1: Table Of Contents
PORTABLE GAS WATER HEATER USER’S MANUAL CampChamp by EZ Tankless, Inc. Thank you for purchasing our instant gas water heater. Read this manual before installing and operating, and keep it for future reference. Contents General Safety……….………………………………… ……………….…..………..……….1 Features……………………………………………………………..………………..……..…6 Specifications……………………………………………………….….……………..….……7 Parts Name and Dimensions……………………………………….…………………..…..8 Installation………………………………………………………….…... - Page 2 Please noted that the appliance will protect and shut down automatically when outlet water temperature is ≥125℉ （52℃） . Before turning on the appliance, it is suggested to rotate the gas knob to MIN and the water knob to MAX (as the above picture shows).
- Page 4 WARNINGS Do not leave unattended. The exhaust gas and top of the portable gas water heater is HOT! Do not place hands or any foreign object near the top of the heater. Turn off power, gas valve and water valve after use. ...
- Page 5 WARNINGS The gas must be turned off at the LP-gas supply cylinder when the water heater is not in use. When the LP-gas supply cylinder is not disconnected from the water heater , the water heater and cylinder must be stored outdoors, in a well ventilated space, out of the reach of children, and must not be stored in a building, garage or any other enclosed area.
-
Page 6: Features
NOTICE Reduce The Chance of Getting Furred After shower, please turn off the gas valve and drain out the hot water in the water heater until cool water is out. Then turn off the water inlet valve. Freezing Prevention Under the circumstance of low temperature, please drain the water remaining in the heater completely after each use. -
Page 7: Specifications
Specifications Name Gas Instantaneous Water Heater Model CampChamp by EZ Tankless, Inc. Rated Heat Input 37500BTU Capacity 1.45GPM Gas Type Propane Rated Gas Pressure 11”W.C. Applicable water pressure 20-120PSI Power Supply Waste Air Exhaust Direct discharge Ignition Water Control Automatic Ignition 1.Flame out protection... -
Page 8: Parts Name And Dimensions
Parts Name and Dimensions CampChamp by EZ Tankless, Inc. All dimensions are for reference only. Specifications are subject to the final product. -
Page 9: Installation
Installation During using, please keep the heater vertically. Otherwise, it will affect the safety use of the heater or even cause damage. Fig.3 Installation Requirements The heater should be installed outdoors. Fig.4 Do not install the water heater in bedroom, basement, bathroom, or rooms with bad ventilation condition. - Page 10 Installation Method Installation Way 1: ⑴ Drill three Φ6mm holes in the wall according to Fig.9 then put three expansion bolts in the corresponding holes. Put a self-tapping screw into the upper hole and drill it into the wall and keep 3mm away from the wall. ⑵...
- Page 11 Fig.11 The illustration is based on model with display and only for reference. Gas Inlet installation ⑴ Attach gas regulator with hose to the gas cylinder. Use hand pressure only on the plastic connector, then, Attach gas regulator with hose to the portable gas water heater.
- Page 12 Hot Water Outlet ⑴ It’s suggested to use the providing hose and shower. ⑵ Connect water outlet connector and water outlet hose as below (Fig.12) Fig.12 (3) Remove water outlet hose as below (Fig. 13): Fig.13 Connection of water outlet tube and shower head (Fig. 14) Fig.14...
- Page 13 Installation of shower base (Fig. 15) Fig. 15 Battery Installation Put 2 pieces of 1.5V size battery into the battery box. Make sure the polarity is correct. Close the battery cover. (Fig.16) Fig.16...
-
Page 14: Operation Method
Operation Method Preparation before Ignition Make sure the gas type used complies with what stipulated in the label. Turn on the gas inlet valve. Turn on the water valve (make sure there is water flowing out of the shower), and then the water heater with “clicking”... - Page 15 knob to “min” position in order to make the ignition more smoothly. After working, increasing the water flow in order to get the suitable water temperature. Turn off the gas valve after each shower. In cold winter times, the water heater must be drained after each shower as follows: ⑴...
-
Page 16: Parts Replacement
Parts Replacement WARNING: For your safety, DO NOT attempt to disassemble, repair, or replace any portion of this unit. Refer all repairs, service, and or adjustments to qualified service personnel. Please call customer support at: (219)369-4781 or e-mail us at: support@eztankless.com (The illustration is based on model with display and only for reference. -
Page 17: Cleaning
Cleaning WARNING: All cleaning to and around the water heater should only be performed with the water heater turned off . Surface Cleaning: Water Filter Cleaning: Notice: If you need to clean the injectors, please contact service center for professional technician... -
Page 18: Maintenance
Maintenance Check the gas tube/pipe regularly for any defect. Contact service center for any doubt. Clean the water filter regularly. Check the water leakage regularly. Keep the water heater area clean and free from combustible materials, gasoline and other flammable vapors and liquids. -
Page 19: Trouble Shooting
Trouble Shooting Troubles Solutions Reasons Water inlet pipe and Properly connect the water in ● water outlet pipe is on the let pipe and water outlet pipe wrong position ● ● Gas valve not open Turn on the main valve The On/Off switch should be ON/OFF switch is not ●... -
Page 20: Circuit Diagram
Circuit diagram CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.
