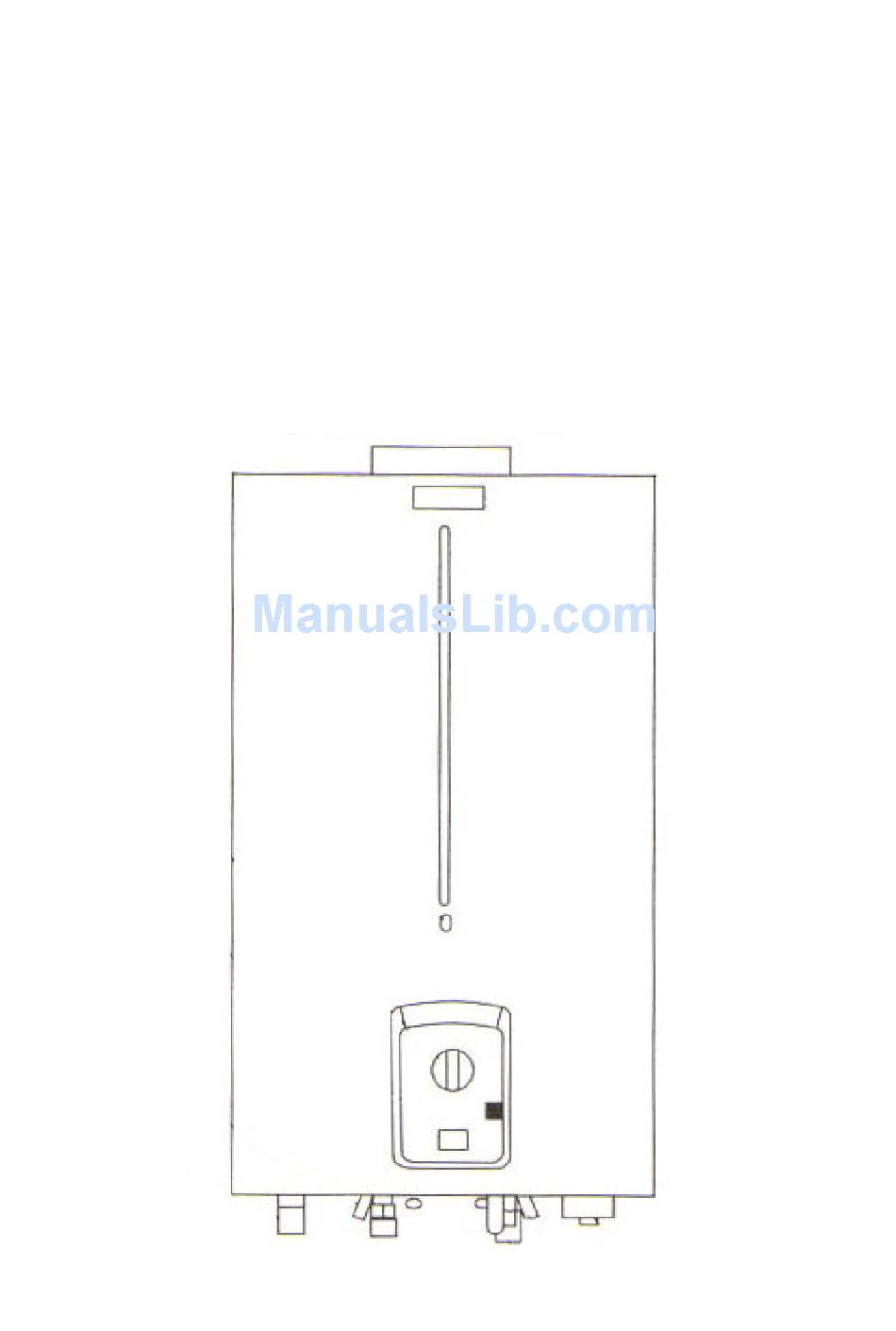

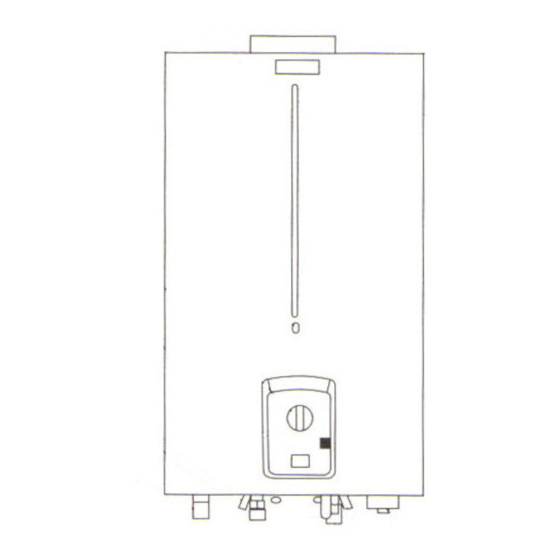

- Page 1 ISO 9001-Certified Large Capacity Automatic Gas Water Heater USER'S MANUAL EZTANKLESS MODEL 202...
-
Page 2: Table Of Contents
This gas water heater is ISO9001 certified. Thank you for purchasing our large capacity automatic gas water heater. Please thoroughly read this Manual before installing and operating and keep for future reference. Contents Sp eci al Ad vic e … ……… ………… ……………… ………… … .2 Features &... -
Page 3: Special Advice
Special Advice The combustion of the gas will consume a large amount of air and produce Carbon Monoxide while the heater is working. NOTICE: if humans or animals breathe too much Carbon Monoxide, it will cause danger, injury, or even death. Therefore, the users are requested to install and use this heater strictly according to this manual to avoid Carbon Monoxide toxicosis. -
Page 4: Specifications
Specifications Description Instant Gas Water Heater Model EZ202LP EZ202NG Gas Type L.P.G Natural Gas 2800Pa 2000Pa Rated Gas Pressure 0.406 PSI 0.29 PSI 11.24 WC inch. 8.03 WC inch. Hot-water Out-point Multi-point Hot-water Outlet Flue Duct 110mm diameter pipe Combustion product exhaust (4.33 inches) Ignition Water Controlled Automatic Ignition... -
Page 5: Parts Name
Parts Name... - Page 6 Installation Before installation, contact the qualified technicians at your local dealer management department to do the installation. Any random or improper installation will affect the safe use of the machine or even endanger the users’ life. If the water heater installation is in a room with other ventilation devices, it is strictly prohibited to operate additional ventilation...
-
Page 7: Installation Method
the floor. Fig.4), and always kept well away from inflammable liquids and materials. (Fig. 5). No electric cables or equipment shall be placed above the water heater. The heater shall be kept at least 400mm (16 inches) away from all electronics on sides and bottom. Do not install the water heater where strong winds blow, or it can cause flameout or incomplete combustion. - Page 8 Hot Water Outlet Remove the drain valve first avoid breaking anti-frost screw. If connecting the hot water outlet directly to the shower, you can use tubing or rigid pipe. When installing the control valve or tap to the hot water outlet, or installing the shower with control tap, do not use pipes made...
-
Page 9: Operation Method
Operation Method 1. Preparation before Ignition Make sure the type of gas used complies with that stipulated on the label. Natural gas or Propane (LPG) Turn on the gas inlet valve. Turn on the water valve (make sure there is water flowing out, the green indicator light will turn on with a "clicking"... -
Page 10: Cautions For Safety
3) Remove the drain cock. (The drain cock is a bolt connected to the valve. Take it off by turning it counter-clockwise to drain the water completely). Cautions For Safety ■ Gas Leak Prevention It's best to install a gas leakage-warning and carbon monoxide detection device. - Page 11 Do not place inflammable materials, explosives volatile materials near the heater. (Fig.14) For L.P.G users, do not place the tank tilted or inverted, otherwise the liquid in the gas cylinder may flow into the heater, and cause a fire or explosion accident.
-
Page 12: Maintenance
● In case of abnormal burning (e.g. flame back, flameout, yellow flame or black smoke, etc.), an unusual smell, noise or other abnormal matters, keep calm and turn off the gas valve and contact EZTANKLESS. ■ Preventing Scalding ● After repeated use, or when the water temperature control knob is still at “high”... -
Page 13: Trouble Shooting
Accessories (contents of box) Item Names QUANTITY Water Heater Mounting Screws Manual Gas Connection (with washer) Gas Inlet Connection (with rubber seal gasket) Expansion Bolts (M6) Trouble Shooting Symptoms Remedies Reasons Turn on main valve or Gas valve not open replace the gas Gas valve half open Turn on the main valve... - Page 14 required Power shortage Replace the batteries Contact the service Burner clogged center Contact the service Heat exchanger clogged center Contact the service Water control unit failure center Ignition needle Contact the service movement center Re-ignite by turning the Continuous 20 minutes water valve off and then operation back on...
