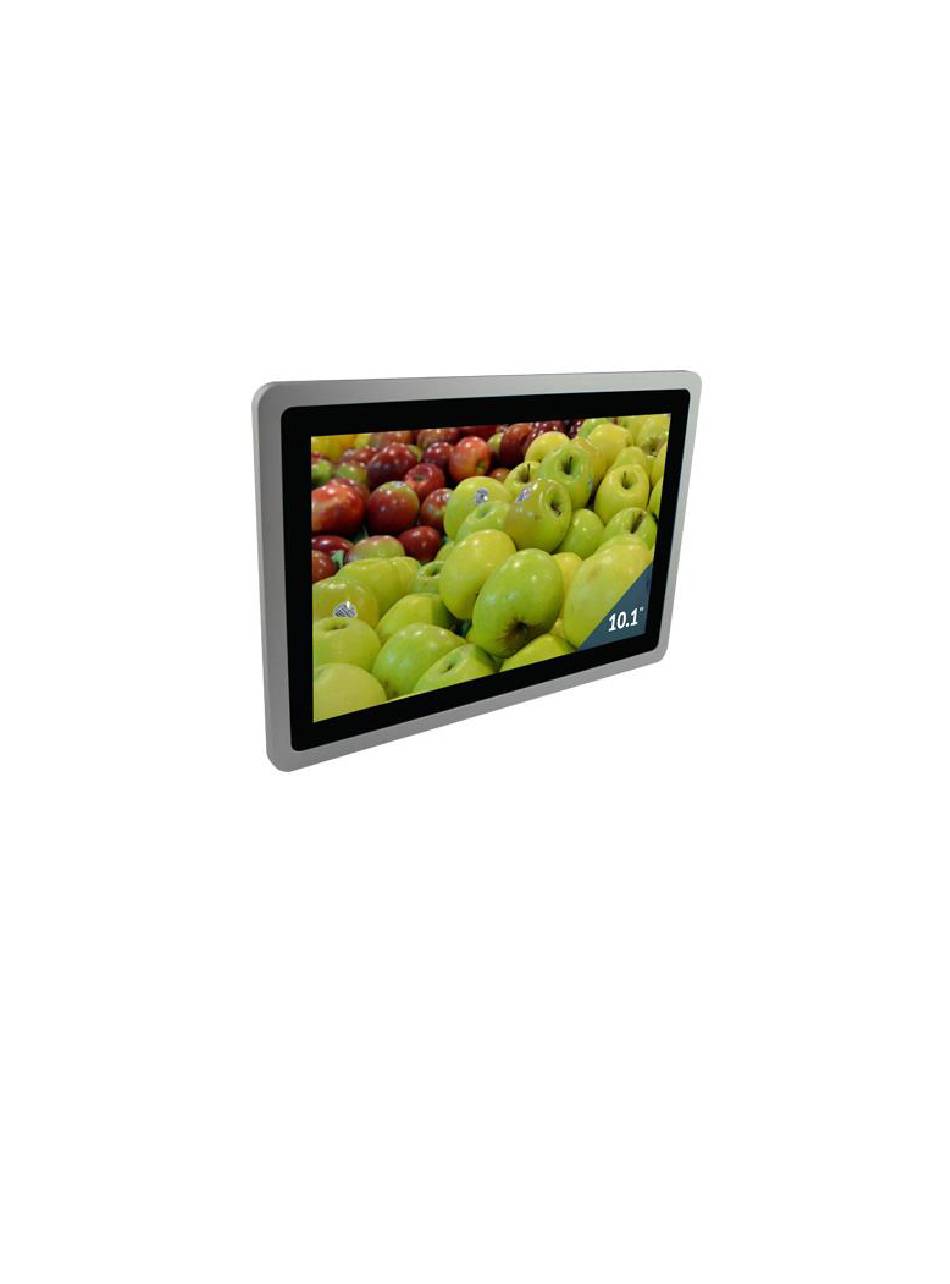

- Page 1 TEP-1010-IMX6 MODULAR HMI PRODUCT MANUAL (TEP-1010-IMX6) VER. 1.00 August 21, 2018...
- Page 2 TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 REVISION HISTORY Revision Date Originator Notes 1.00 August 21, 2018 TechNexion First public release Page 2 of 34...
-
Page 3: Table Of Contents
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 TABLE OF CONTENTS 1. Introduction ............................... 5 1.1. General Care and Maintenance ......................5 2. TEP-1010-IMX6 Product Overview ......................6 2.1. Functional Block Diagram ........................6 2.2. Dimensions ............................7 2.3. - Page 4 TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 4.3. M.2 KEY-B Slots ..........................26 4.4. SW2 Default Boot Mode Switch ....................... 26 4.5. SWITCH1 Boot Mode DIP Switch ....................26 4.6. RTC Battery Connector ........................26 4.7. Internal Stereo Speaker Connectors ....................27 5.
-
Page 5: Introduction
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 1. Introduction 1.1. General Care and Maintenance Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you. •... -
Page 6: Tep-1010-Imx6 Product Overview
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 2. TEP-1010-IMX6 Product Overview 2.1. Functional Block Diagram Page 6 of 34... -
Page 7: Dimensions
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 2.2. Dimensions The following figure shows the TEP-1010-IMX6 dimensions (unit: mm): Page 7 of 34... -
Page 8: Device Cut-Out Dimensions For Mounting Though A Panel
2.3. Device Cut-out Dimensions For Mounting Though a Panel The TEP-1010-IMX6 can be mounted on the front or the back of the panel. In order to mount it from the front, a nominal rectangular cutout must be made in the panel. The following drawing shows the... -
Page 9: External Connectors
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 2.4. External Connectors The TEP-1010-IMX6 has a number of external connectors. Bottom view: 11 12 13 14 15 External Connectors: Description Description LED Light indicator 3.5mm jack Line in Micro-SIM cardslot 3.5mm jack Mic in... -
Page 10: Internal Board Connectors
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 2.5. Internal Board Connectors The TEP-1010-IMX6 has several connectors, switches and internal expansion options. 2.5.1. Galvanic Isolated (TEP1010-IMX6x-Rxx-Exx-Lxxx-XG20-xxx-xxxx) Rear view (opened device) with the galvanic isolated I/0 Expansion module: I/O Expansion Module... -
Page 11: Non-Galvanic Isolated (Tep1010-Imx6X-Rxx-Exx-Lxxx-Xs20-Xxx-Xxxx)
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 2.5.2. Non-Galvanic Isolated (TEP1010-IMX6x-Rxx-Exx-Lxxx-XS20-xxx-xxxx) Rear view (opened device) with the non-galvanic isolated I/0 Expansion module: I/O Expansion Module Internal Connectors and Switches: Description Description mini-PCIe connector (PCIe + USB) Mini-SIM cardslot mini-PCIe connector (USB) M.2 KEY-B slot (SATA + USB) -
Page 12: Board View Without The I/O Expansion Module
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 2.5.3. Board View Without the I/O Expansion Module Rear view (opened device) without the I/O Expansion module: I* J* Internal Connectors and Switches: Description Description mini-PCIe connector (PCIe + USB) M.2 KEY-B slot (SATA + USB) -
Page 13: External Connectors
No mini-PCIe 3G/4G LTE module is included in this device (must be purchased separately, not sold by TechNexion). 3.3. MicroSD Connector The TEP-1010-IMX6 features a standard microSD cardslot which is connected to the NXP i.MX6 integrated “Ultra Secured Digital Host Controller” (uSDHC). The following main features are supported by uSDHC: •... -
Page 14: Usb Otg (Type-C) Connector
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 3.4. USB OTG (Type-C) Connector The TEP-1010-IMX6 has one USB Type-C connector (USB 2.0 signals only) that can be used to connect a host computer to the unit for programming and update purposes. -
Page 15: Audio Connectors
Microphone input 3.9. S1 Button The TEP-1010-IMX6 by default boots the unit from internal flash storage (eMMC). By pressing the “S1” button before applying power to the unit and keeping the button pressed for 10 seconds, the unit will boot from an alternative boot media, such as a microSD card. -
Page 16: Gigabit Ethernet Interface
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 3.12. Gigabit Ethernet Interface The TEP-1010-IMX6 by default comes with a single Gigabit Ethernet RJ45 connector. This connector can support 802.3at Power over Ethernet functionality if configured with the PoE power option (TEP1010- IMX6x-Rxx-Exx-LPOE-Xxxx-xxx-xxxx) by connecting it to an 802.3at compliant PoE switch or power... -
Page 17: Galvanic Isolated Connectors (Tep1010-Imx6X-Rxx-Exx-Lxxx-Xg20-Xxx-Xxxx) (Optional)
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 3.14. Galvanic Isolated Connectors (TEP1010-IMX6x-Rxx-Exx-Lxxx-XG20-xxx-xxxx) (optional) This product is available with four optional connectors: GPIO1, GPIO2, RS-XXX and CAN Bus that can be ordered in either galvanic isolated or non-galvanic isolated versions. The TEP1010-IMX6x-Rxx-Exx- Lxxx-XG20-xxx-xxxx has four optional galvanic isolated connectors: GPIO1, GPIO2, RS-XXX and CAN Bus. - Page 18 TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 GPIO2: Signal Description Voltage Current GPIO GPIO Max. Kernel Bank/IO Min. Typ. Max. GPIO2A DIG_IN1 GPIO2B DIG_IN2 GND_DIO Ground for digital I/O Common Ground GPIO2C DIG_OUT5 1.7A GPIO2D DIG_OUT6 1.7A...
-
Page 19: Galvanic Isolated Serial Port (Rs-Xxx) (Optional)
RS-232. The secondary port can be configured either as RS-232, or RS-422 or RS-485. This serial port is set by default as RS-232. Setting the TEP-1010-IMX6 in other mode will require to open the device and adjust the internal SW1 DIP and SW3 Terminator Resistor DIP switch settings on the TEP I/O Expansion board. - Page 20 TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 RS-232 + RS-422: Pin # Signal Description Device SERIAL1A Identical as above ttymxc0 Ground SERIAL1B_TXD+ RS-422 Transmit positive data signal (output) ttymxc1 SERIAL1B_RXD- RS-422 Receive negative data signal (input) ttymxc1...
-
Page 21: Galvanic Isolated Can Bus Connector (Canbus) (Optional)
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 3.14.3. Galvanic Isolated CAN Bus Connector (CANBus) (optional) The galvanic isolated CAN Bus interfaces can be configured as follows: enabling or disabling of CAN Bus terminator resistor will require to open the device and adjust the internal SW2 Terminator Resistor DIP switch settings on the TEP I/O Expansion board. -
Page 22: Non-Galvanic Isolated Connectors (Tep1010-Imx6X-Rxx-Exx-Lxxx-Xs20-Xxx-Xxxx) (Optional)
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 3.15. Non-Galvanic Isolated Connectors (TEP1010-IMX6x-Rxx-Exx-Lxxx-XS20-xxx- xxxx) (optional) This product is available with four optional connectors: GPIO1, GPIO2, RS-XXX and CAN Bus that can be ordered in either galvanic isolated or non-galvanic isolated versions. The TEP1010-IMX6x-Rxx-Exx- Lxxx-XS20-xxx-xxxx has four optional non-galvanic isolated connectors: GPIO1, GPIO2, RS-XXX and CAN Bus. -
Page 23: Non-Galvanic Isolated Serial Port (Rs-Xxx) (Optional)
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 GPIO2: Signal Description Voltage Current GPIO GPIO Max. Kernel Bank/IO Min. Typ. Max. GPIO2A DIG_IN1/OUT1 1.65V 3.3V 3.6V 0.33mA GPIO2B DIG_IN2/OUT2 1.65V 3.3V 3.6V 0.33mA Common Ground GPIO2C DIG_IN5/OUT5 1.65V 3.3V... -
Page 24: Non-Galvanic Isolated Can Bus Connector (Canbus) (Optional)
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 3.15.3. Non-Galvanic Isolated CAN Bus Connector (CANBus) (optional) The non-galvanic isolated CAN Bus interfaces can be configured as follows: enabling or disabling of CAN Bus terminator resistor will require to open the device and adjust the internal SW1 Terminator Resistor DIP switch settings on the TEP I/O Expansion board. -
Page 25: Internal Connectors And Expansion Options
NOTE: Items marked with * are accessible only after removing the I/O Expansion module. 4.1. Mini-PCIe Connectors The TEP-1010-IMX6 has two internal mini-PCIe connectors for full or half size cards: MPCIE1 and MPCIE2 (Marked A and B respectively). MPCIE1 connector supports PCIe and USB signals. On the other hand, MPCIE2 connector supports USB signals only. -
Page 26: Key-B Slots
The TEP-1010-IMX6 has an internal SW2 Default Boot Mode switch (Marked C). Pin # eMMC (default) microSD SATA 4.5. SWITCH1 Boot Mode DIP Switch The TEP-1010-IMX6 has an internal SWITCH1 Default Boot Mode DIP switch for S1 boot select button (Marked I). Pin # eMMC microSD (default) SATA*... -
Page 27: Internal Stereo Speaker Connectors
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 4.7. Internal Stereo Speaker Connectors The TEP-1010-IMX6 has two internal stereo speaker connectors to connect to two optional LEFT and RIGHT speakers (Marked K and J respectively). The signal is pre-amplified with a 2W Texas Instruments TPA2012D2 Class-D stereo audio amplifier. -
Page 28: Mounting
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 5. Mounting This section describes the mounting procedures for the TEP-1010-IMX6. The material in area of the mounting must provide sufficient strength for safe mounting of this device. 5.1. VESA Mounting The TEP-1010-IMX6 is compatible with the VESA MIS-D Standard 100*100mm hole pattern. -
Page 29: Rear Mounting And Mounting Clips Installation
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 5.2. Rear Mounting and Mounting Clips Installation There are 7 mounting clips required for rear mounting. Please follow the steps below to secure the clips. Prepare mounting hook, post and screw (M3) (Step 1). -
Page 30: Surface Mounting And O-Ring Installation
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 5.3. Surface Mounting and O-ring Installation There are 10 mounting holes (M4) on the rear side of the device required for surface mounting. M4 screws with at least 6mm head-to-tip length are required to secure this device. -
Page 31: Ordering Information
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 6. Ordering Information The TEP-1010-IMX6 is available in several configurations. Please contact your TechNexion sales contact window or distributor for options and availability details. 6.1. Custom Part Number Rule The TEP-1010-IMX6 can be ordered in custom tailored configuration to meet special application requirements and conditions according to the following custom part number creation rules. -
Page 32: Standard Package Contents
TEP-1010-IMX6 HARDWARE MANUAL – VER 1.00 – AUG 21 2018 6.2. Standard Package Contents Item Partnumber Description TEP-1010-IMX6 10 inch PoE HMI PCAP touch system with NXP i.MX6 Accessoires 7x mounting hooks 7x long screws (M3) 7x mounting posts 2x hexagonal bolt... -
Page 33: Important Notice
Information published by TechNexion regarding third-party products or services does not constitute a license from TechNexion to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TechNexion under the patents or other intellectual property of TechNexion. -
Page 34: Disclaimer
To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by TechNexion Ltd., its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
