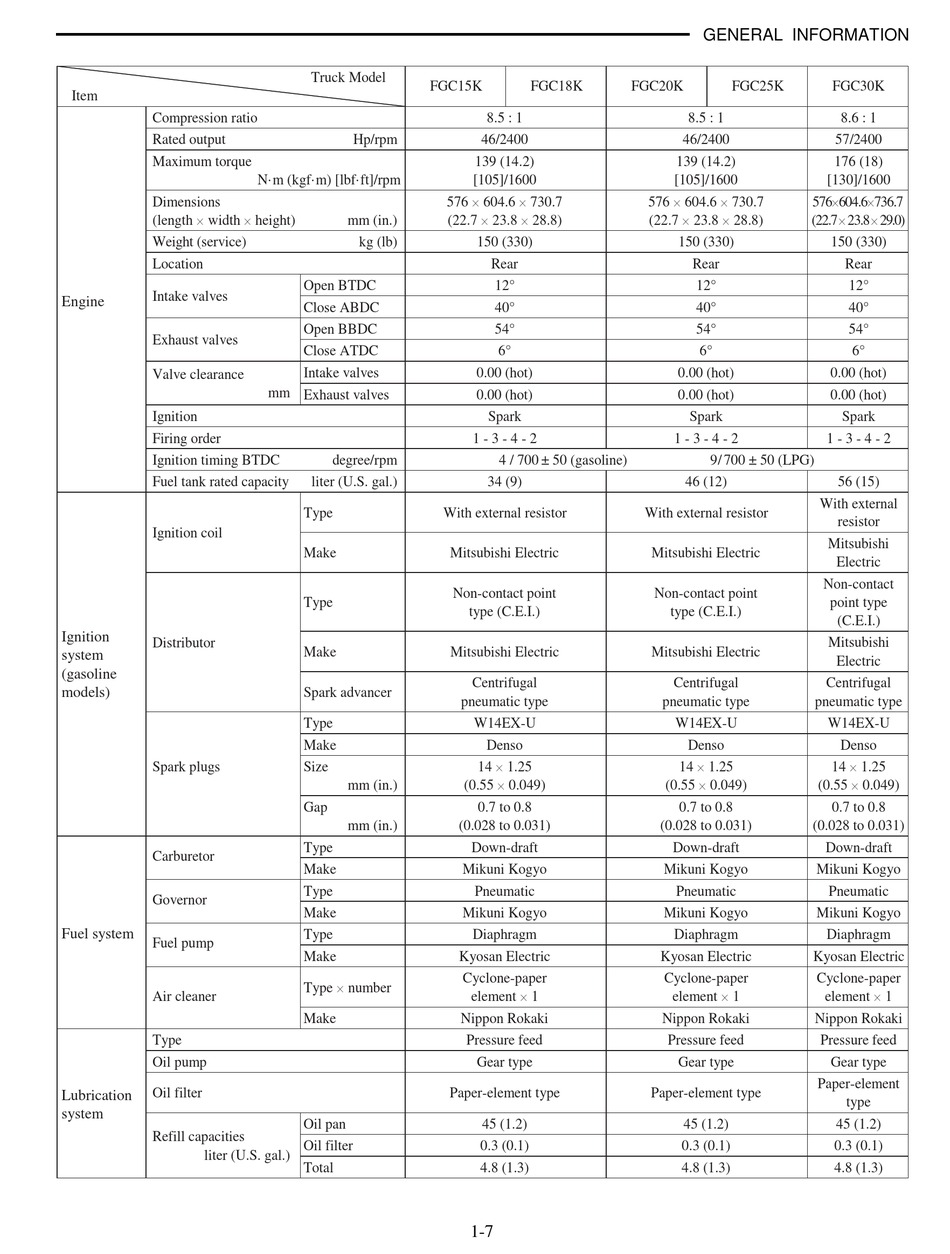

Mitsubishi FGC18K Service Manual page 15

Item
Compression ratio
Rated output
Maximum torque
Dimensions
(length  width  height)
Weight (service)
Location
Intake valves
Engine
Exhaust valves
Valve clearance
Ignition
Firing order
Ignition timing BTDC
Fuel tank rated capacity
Ignition coil
Ignition
Distributor
system
(gasoline
models)
Spark plugs
Carburetor
Governor
Fuel system
Fuel pump
Air cleaner
Type
Oil pump
Oil filter
Lubrication
system
Refill capacities
liter (U.S. gal.)
Truck Model
FGC15K
Hp/rpm
N·m (kgf·m) [lbf·ft]/rpm
mm (in.)
kg (lb)
Open BTDC
Close ABDC
Open BBDC
Close ATDC
Intake valves
mm
Exhaust valves
degree/rpm
liter (U.S. gal.)
Type
Make
Type
Make
Spark advancer
Type
Make
Size
mm (in.)
Gap
mm (in.)
Type
Make
Type
Make
Type
Make
Type  number
Make
Oil pan
Oil filter
Total
FGC18K
8.5 : 1
46/2400
139 (14.2)
[105]/1600
576  604.6  730.7
(22.7  23.8  28.8)
150 (330)
Rear
12°
40°
54°
6°
0.00 (hot)
0.00 (hot)
Spark
1 - 3 - 4 - 2
4 / 700 ± 50 (gasoline)
34 (9)
With external resistor
Mitsubishi Electric
Non-contact point
type (C.E.I.)
Mitsubishi Electric
Centrifugal
pneumatic type
W14EX-U
Denso
14  1.25
(0.55  0.049)
0.7 to 0.8
(0.028 to 0.031)
Down-draft
Mikuni Kogyo
Pneumatic
Mikuni Kogyo
Diaphragm
Kyosan Electric
Cyclone-paper
element  1
Nippon Rokaki
Pressure feed
Gear type
Paper-element type
45 (1.2)
0.3 (0.1)
4.8 (1.3)
1-7
GENERAL INFORMATION
FGC20K FGC25K
8.5 : 1
46/2400
139 (14.2)
[105]/1600
576  604.6  730.7
(22.7  23.8  28.8)
150 (330)
Rear
12°
40°
54°
6°
0.00 (hot)
0.00 (hot)
Spark
1 - 3 - 4 - 2
9/ 700 ± 50 (LPG)
46 (12)
With external resistor
Mitsubishi Electric
Non-contact point
type (C.E.I.)
Mitsubishi Electric
Centrifugal
pneumatic type
W14EX-U
Denso
14  1.25
(0.55  0.049)
0.7 to 0.8
(0.028 to 0.031)
Down-draft
Mikuni Kogyo
Pneumatic
Mikuni Kogyo
Diaphragm
Kyosan Electric
Cyclone-paper
element  1
Nippon Rokaki
Pressure feed
Gear type
Paper-element type
45 (1.2)
0.3 (0.1)
4.8 (1.3)
FGC30K
8.6 : 1
57/2400
176 (18)
[130]/1600
576604.6736.7
(22.7  23.8  29.0)
150 (330)
Rear
12°
40°
54°
6°
0.00 (hot)
0.00 (hot)
Spark
1 - 3 - 4 - 2
56 (15)
With external
resistor
Mitsubishi
Electric
Non-contact
point type
(C.E.I.)
Mitsubishi
Electric
Centrifugal
pneumatic type
W14EX-U
Denso
14  1.25
(0.55  0.049)
0.7 to 0.8
(0.028 to 0.031)
Down-draft
Mikuni Kogyo
Pneumatic
Mikuni Kogyo
Diaphragm
Kyosan Electric
Cyclone-paper
element  1
Nippon Rokaki
Pressure feed
Gear type
Paper-element
type
45 (1.2)
0.3 (0.1)
4.8 (1.3)
