SAFETY INSTRUCTION


ARTICLE NO:
RECEIVER
TRANSMITTER T00007-14







IM-PN-CE001-A04-EN

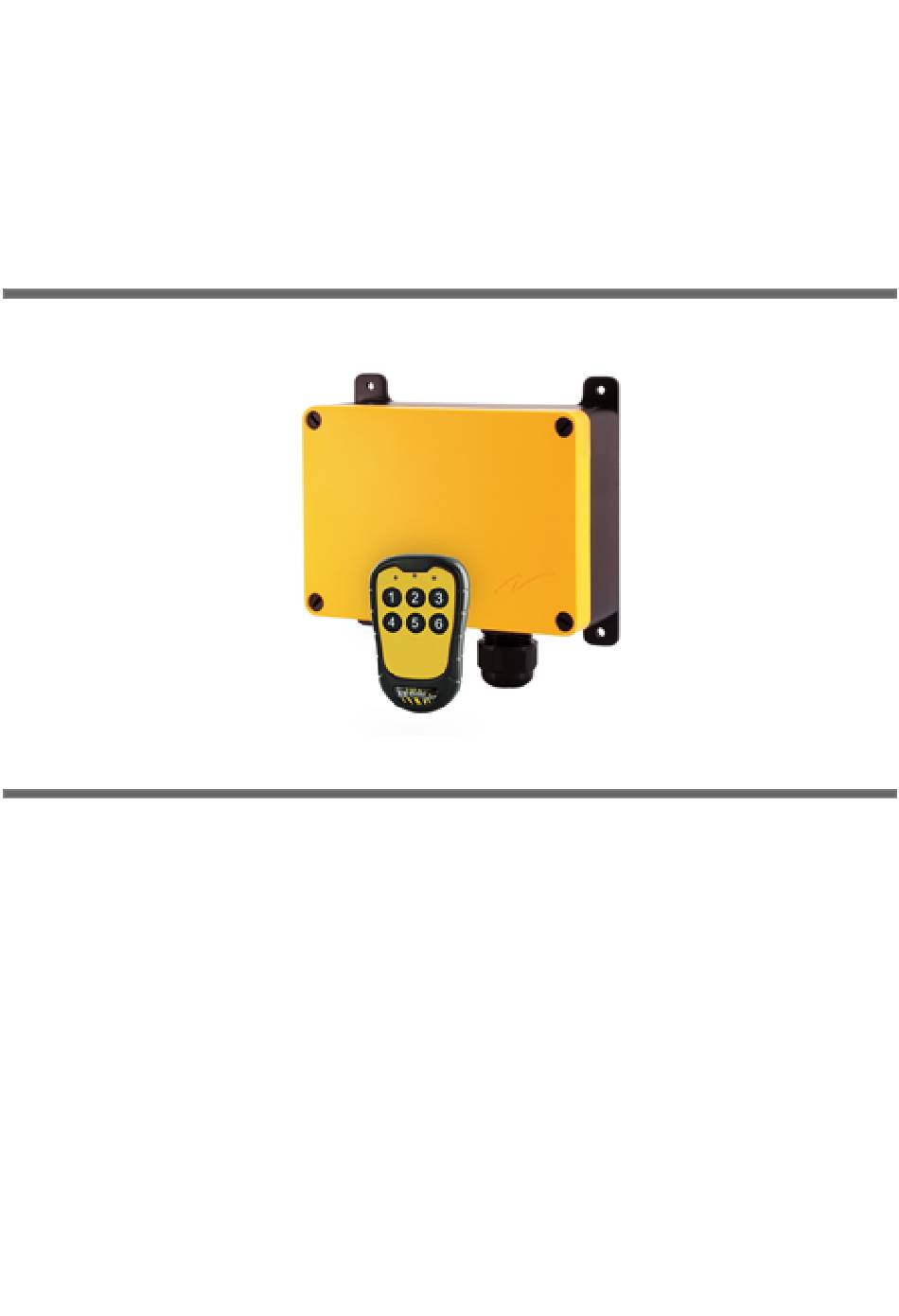

Tele Radio Panther
LANGUAGE: ENGLISH (ORIGINAL)
R00008-07




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panther and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tele Radio Panther

  • Page 1 Tele Radio Panther SAFETY INSTRUCTION   LANGUAGE: ENGLISH (ORIGINAL)   ARTICLE NO: RECEIVER R00008-07 TRANSMITTER T00007-14                     IM-PN-CE001-A04-EN  ...
  • Page 2 During the guarantee/ warranty period, Tele Radio AB may replace the product or faulty parts with new. Work under guarantee/ warranty must be carried out by Tele Radio AB or by an authorized service center specified by Tele Radio AB. Contact your Tele Radio AB representative if you need support or service.
  • Page 3: Warnings & Restrictions

    WARNINGS & RESTRICTIONS     INSTALLING, CONNECTING AND MOUNTING   Allow only licensed or qualified personnel to install the product.   Switch the power supply off to the receiver before connecting the equipment.   Check that you have connected the power supply to the correct connection ter- minal.
  • Page 4: Install, Operate And Make Settings

    IMPORTANT! The transmitter must be registered in the receiver before it is possible to start a radio session. For safety reasons only qualified personnel should be able to install, register and make settings to the Panther system.   Installation instructions as well as end user instructions are available for download at: www.tele-radio.com...
  • Page 5 WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   IMPORTANT! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 6 Receiver R00008-07     Expansion board:   10. Relay LEDs (red) 14. Function button (Cancel) 11.LEDs representing the function relays on  15.Programming connector the base board 12. Function relays 10-19 16. Power LED (yellow) 13. Select button (OK) 17. Terminal block for digital inputs...
  • Page 7 Receiver R00008-07   TERMINAL BLOCK FOR INPUT POWER          TERMINAL BLOCK FOR DIGITAL INPUTS   Base board:     33. GND 38.Digital input 5 34. Digital input 1 39.Digital input 6 35. Digital input 2 40.Digital input 7 36. Digital input 3 41.Digital input 8 37. Digital input 4 42. GND  ...
  • Page 8: Current Consumption

    Receiver R00008-07   TERMINAL BLOCK FOR DIGITAL INPUTS   Expansion board:     81. GND 87. Digital input 11 82.GND 88. Digital input 12 83. GND 89. Digital input 13 84. GND 90. Digital input 14 85.Digital input 9 91. Digital input 15 86. Digital input 10 92. Digital input 16       CURRENT CONSUMPTION    Input power Min.* Max.** 12V AC 0.02A 0.6A 24V AC 0.02A 0.3A 48V AC 0.008A 0.2A 115V AC 0.004A 0.07A 230V AC...
  • Page 9 Receiver R00008-07   LEDS ON THE EXPANSION BOARD REPRESENTING THE  FUNCTION RELAYS ON THE BASE BOARD   LED 1= function relay 1 LED 2= function relay 2 LED 3= function relay 3 LED 4= function relay 4 LED 5= function relay 5 LED 6= function relay 6 LED 7= function relay 7 LED 8= function relay 8 LED 9= function relay 9...
  • Page 10: Technical Data

    Receiver R00008-07   TECHNICAL DATA     Number of function relays 19 (potential free*, 8A) Digital inputs Duplex/ simplex communication Simplex Operating frequency 2405-2480 MHz.  Number of channels 16 (channel 11-26) IP class Size 176 x 126 x 75 mm./ 6.9 x 5 x 2.9 in. Weight 800 g./ 1.8 lbs. Antenna 1 external BNC antenna 12-24 VDC. Max. 1A Rated voltage 12-24/48-230 VAC, 50-60 Hz. Max. 1A   * potential free means that you have to supply voltage to get voltage out of a relay - 10...
  • Page 11 Transmitter T00007-14 TRANSMITTER T00007-14             1. LED 1 (red) 3. LED 2 (red) 2 Top LED   ( green/red) 4. 1-step push buttons 1-8...
  • Page 12: On/Off Switch

    Transmitter T00007-14   TECHNICAL DATA   No. of buttons 8 x 1-step buttons On/off switch Size 83  x  52  x 31 mm./3.3  x  2  x  1.2 in. (incl. clip) Weight 70 g./ 0.15 lbs. (incl. batteries) No. of channels 16 (channel 11-26) Operating frequency 2405-2480 MHz.  Battery type 2 x 1.5V AAA alkaline     ON/OFF SWITCH   The   t ransmitter has an on/off switch on the  backside. The on/off switch has 2 positions:  1= on 0= off The on/off switch breaks the power supply  from the battery.  - 12...
  • Page 13: Start The Transmitter

    Transmitter T00007-14   START THE TRANSMITTER      1. Press button 7 (the ON button) for at least 1 second.  2. Release button 7 (the ON button) when the top LED turns green.  3. The transmitter is started.       TURN THE TRANSMITTER OFF  ...
  • Page 14: Relay Functionality

    Transmitter T00007-14   RELAY FUNCTIONALITY   Button 1 activates relay 1, 8, 15 Button 2 activates relay 2, 9, 16 Button 3 activates relay 3, 10, 17 Button 4 activates relay 4, 11, 18 Button 5 activates relay 5, 12, 19 Button 6 activates relay 6, 13 Button 7 activates relay 7, 14 Button 8 is the OFF button         CHANGE THE BATTERIES   WARNING! Do not recharge the batteries. Attempts to recharge may cause rupture or the leaking of hazardous liquids, which will corrode the equipment.  ...
  • Page 15: Fcc/ Ic Label

    FCC/ IC label FCC/ IC LABEL         FCC STATEMENT   Statement for warning:   Caution: The user is cautioned that changes or modifications not expressly approved by the  party responsible for compliance could void the user's authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s) and Part 15 of  the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause  undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils  radio exempts de licence et la partie 15 des Règles FCC. L'exploitation est autorisée aux  deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le  brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with FCC and IC radiation exposure limits set forth for an  uncontrolled environment. End user must follow the specific operating instructions for  satisfying RF exposure compliance. This transmitter must not be co-located or operating in  conjunction with any other antenna or transmitter.
  • Page 16 FCC statement Cet appareil est conforme aux limites d’exposition au rayonnement RF stipulées par la FCC  et l’IC pour une utilisation dans un environnement non contrôlé. L'utilisateur final doit suivre  les instructions de fonctionnement spécifiques pour le respect d'exposition aux RF.  Lesémetteurs ne doivent pas être placées près d’autres antennes ou émetteurs ou  fonctionner avec ceux-ci. Note: this equipment has been tested and found to comply with the limits for a class b digital  device, pursuant to part 15 of the FCC rules. These limits are designed to provide  reasonable protection against harmful interference in a residential installation. This  equipment generates, uses and can radiate radio frequency energy and, if not installed and  used in accordance with the instructions, may cause harmful interference to radio  communications. However, there is no guarantee that interference will not occur in a  particular installation. If this equipment does cause harmful interference to radio or television  reception, which can be determined by turning the equipment off and on, the user is  encouraged to try to correct the interference by one or more of the following measures: —reorient or relocate the receiving antenna. —increase the separation between the equipment and receiver. —connect the equipment into an outlet on a circuit different from that to which the receiver is  connected. —consult the dealer or an experienced radio/TV technician for help. - 16...
  • Page 17: Battery Precautions

    (WEEE), Tele Radio AB strives to minimize the use of hazardous materials, promotes reuse and recycling, and reduces emissions to air, soil and water. When a commercially viable alternative is available, Tele Radio AB strives to restrict or eliminate substances and materials that pose an environmental, health or safety risk.
  • Page 18: Guarantee And Maintenance

    The Tele Radio products are covered by a guarantee/warranty against material, construction and manufacturing faults. During the guarantee/warranty period, Tele Radio may replace the product or faulty parts. Work under guarantee/warranty must be carried out by Tele Radio or by an authorized service center specified by Tele Radio.
