STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502)
Purpose
This document describes the removal and replacement of the Kwikee® Revolution Series step motor.
Note: This information was obtained from Kwikee manual #82-ST0502 Rev 0B dated July 2013.
Required Resources
•
Standard automotive style jack
or jack stand
5/16
•
" hex driver
5/16
•
" torque wrench
5/16
•
" socket with ratchet
Instructions
Steps MUSt be supported with the proper automotive style jack or jack stand that is in good working
order. If the step is not supported when the motor is removed, the step will open. Failure to properly
support the steps may result in death, serious personal injury or severe product damage.
Read and understand all of the following instructions before beginning this procedure.
Note: This procedure must be completed with the steps either in the full retracted position or completely
removed from the coach.
1.

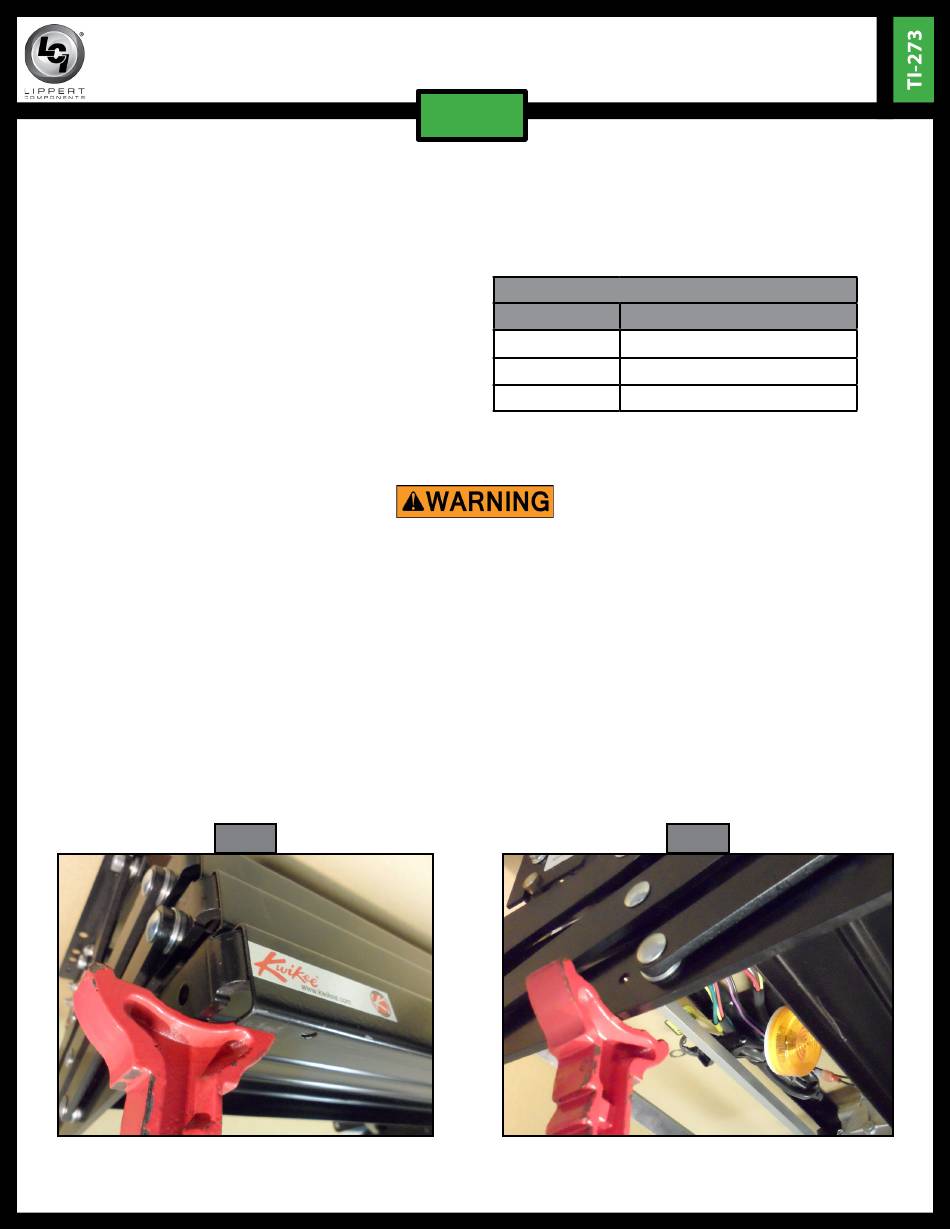

Using a standard automotive type jack or jack stand, brace the steps in the completely retracted
position (Fig. 1). This will prevent the steps from opening when the motor is removed from the step.
2.
Position the standard automotive type jack or jack stand to the rear of the steps. Leave some space
between the step frame and the jack or jack stand to allow for later adjustment when installing the
motor (Fig. 2).
Rev: 10.04.18
KWIKEE
®
Fig. 1
REVOLUTION SERIES
STEPS
Replacement Kit #380073
Part #
369340
369091
360212
Page 1
Description
Motor for TT Revolution
5/16"
Hex Bolt,
x 2"
Plastic Spacer
Fig. 2
CCD-0002267
Advertisement
Table of Contents
Related Manuals for Lippert Components KWIKEE REVOLUTION SERIES
Summary of Contents for Lippert Components KWIKEE REVOLUTION SERIES
- Page 1 KWIKEE REVOLUTION SERIES ® STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502) STEPS Purpose This document describes the removal and replacement of the Kwikee® Revolution Series step motor. Note: This information was obtained from Kwikee manual #82-ST0502 Rev 0B dated July 2013. Required Resources Replacement Kit #380073 •...
- Page 2 KWIKEE REVOLUTION SERIES ® STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502) STEPS Moving parts can pinch, crush or cut. Keep clear and use caution. Removing the Motor 5/16 The motor is attached to the step frame using three " hex bolts. On the bottom side of the motor, each bolt goes through a plastic motor spacer (Fig.
- Page 3 KWIKEE REVOLUTION SERIES ® STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502) STEPS Installing the New Motor 5/16" Insert three hex bolts (Part #369091 of Kit #380073) into the motor mounting holes. Place one plastic spacer (Part #360212 of Kit #380073) on each hex bolt on the backside of the motor. Each spacer has a groove on one side that must be aligned with the bolt hole (Fig.
- Page 4 KWIKEE REVOLUTION SERIES ® STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502) STEPS Verify that the motor gear is properly engaged with the drive gear mechanism (Fig. 7). If the motor pin and the hex bolts do not line up properly, loosen—but do not remove—the hex bolts (Fig.
- Page 5 KWIKEE REVOLUTION SERIES ® STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502) STEPS Support Documentation Document # Description Kwikee #1422279 / Kwikee 888 Electric Step Owner's Manual LCI #369410 82-ST0500 Kwikee IMGL Step Control Testing Procedure 82-ST0501 QR-034, Kwikee Step Identification and Replacement Parts Guide Kwikee #3010002262 / Kwikee Revolution Step Series Owner's Manual LCI #375656...
