VoidMate
T R A C K V O I D M O N I T O R
Sensor
Plug
Socket
Sensor
Socket
Sensor
Clamp
Sensor
Sensor
Plug
End Clamp
Gaiter
Foot
1. VoidMate Glossary.
3. Ensure the VoidMate base plate is flush under the rail.
The shoulder should sit on the foot of the rail as shown.
5. Tighten the bolts on the end clamp repeatedly and
alternately using the M10 Allen key until secure.
www.datum-group.com/about-datum-group/customer-support
Solar Panel
On / O Switch
Shoulder
Base Plate
24/7 Customer Support:
2. Create a small void in the ballast between sleepers and slide
the VoidMate under the rail.
4. Slide end clamp over the foot of the rail.
20cm
6. Once the unit has been secured to rail, remove an area of
approx 20cm x 20cm in the ballast below the VoidMate box.
0161 765 3447
Systems
20cm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Datum VoidMate
Summary of Contents for Datum VoidMate

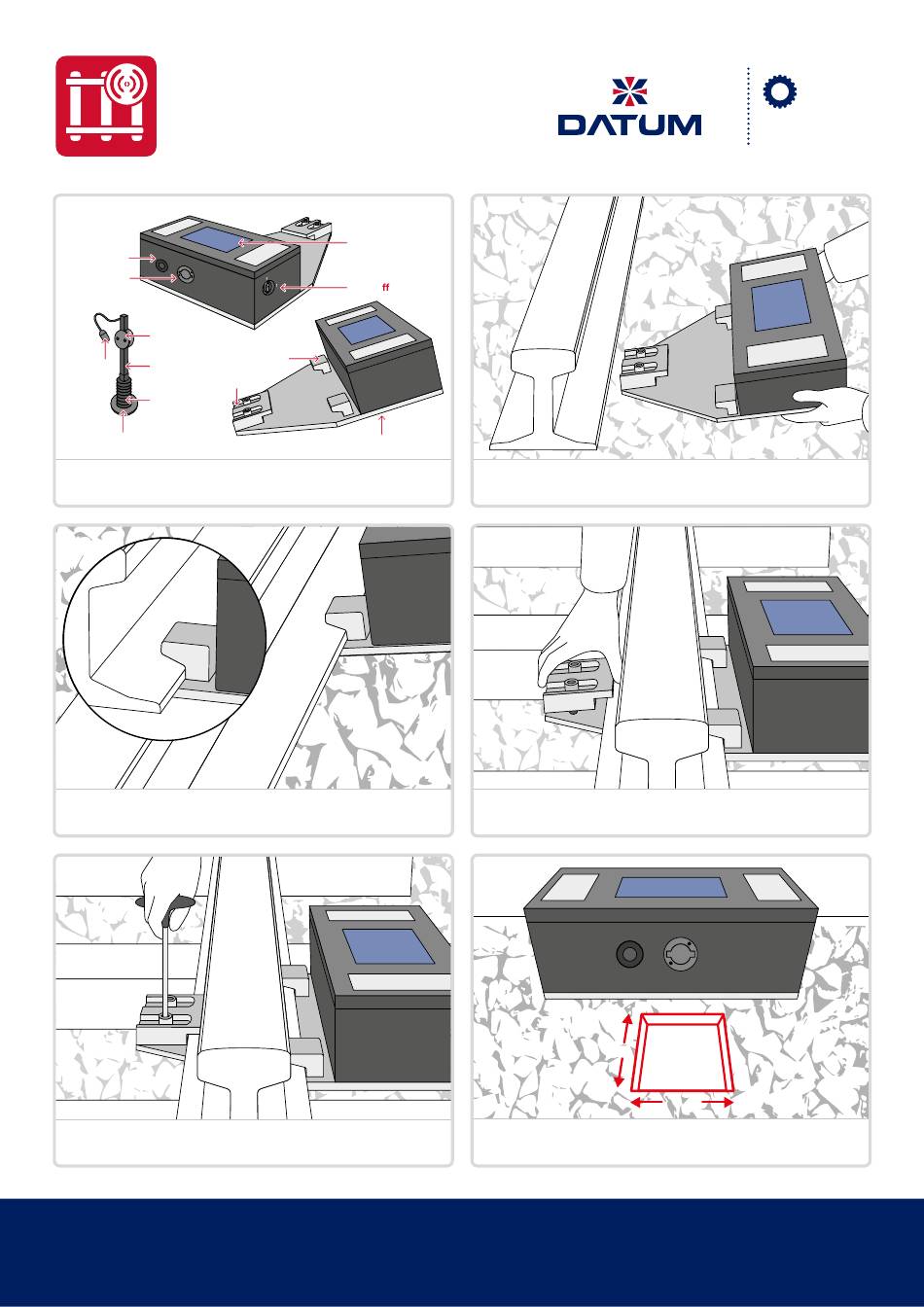

- Page 1 2. Create a small void in the ballast between sleepers and slide the VoidMate under the rail. 3. Ensure the VoidMate base plate is flush under the rail. 4. Slide end clamp over the foot of the rail. The shoulder should sit on the foot of the rail as shown.
- Page 2 9. Once fitted, check sensor is moving freely with no ballast around it. To turn the unit on, turn on/off switch clockwise so 10. Call Datum 24/7 Customer Support to ensure device is the arrow points to ‘1’. connected. Provide them with the information listed.
