Q-MATIC Queue Management Systems
Wireless solutions
Information in this document is subject to change without notice and does not represent a commitment on
the part of Q-MATIC Sweden AB.
All efforts have been made to ensure the accuracy of the Manual, but Q-MATIC Sweden cannot assume any
responsibility for any errors or their consequences. Should you detect any errors, we should very much
appreciate, if you would inform us accordingly.
Wireless solutions manual, accompanying software and documentation are copyrighted and all rights are
reserved.
Reproduction of any part of this Manual, in any form, is not allowed, unless written permission is given by
Q-MATIC SWEDEN AB.
COPYRIGHT © Q-MATIC Sweden AB, 2003-2004
All other company and product names are trademarks or registered trademarks of their respective owners.
057.01C
Q-MATIC INTERNATIONAL
1
Advertisement
Table of Contents
Summary of Contents for Q-Matic MI2280
- Page 1 Q-MATIC Sweden AB. All efforts have been made to ensure the accuracy of the Manual, but Q-MATIC Sweden cannot assume any responsibility for any errors or their consequences. Should you detect any errors, we should very much appreciate, if you would inform us accordingly.
- Page 2 Q-MATIC Queue Management Systems Wireless solutions Q-MATIC INTERNATIONAL 057.01C...
-
Page 3: Table Of Contents
ID Code ............................. 8 Input ..............................10 Output ............................. 10 Radio Receiver ..........................10 Technical specifications, MI2280 Multi Interface with radio .............. 10 Wireless terminals ..........................11 To change battery ..........................13 Technical specifications, Wireless Terminal ..................13 3. Placement ............................17 Placement of the components ...................... - Page 4 Q-MATIC Queue Management Systems Wireless solutions Table of contents Q-MATIC INTERNATIONAL 057.01C...
-
Page 5: Introduction
Q-MATIC Queue Management Systems Wireless solutions 1. Introduction Introduction Topics in this chapter What is a wireless solution........6 The advantages with wireless solutions....6 Where can you use wireless solutions ......6 057.01C Q-MATIC INTERNATIONAL... -
Page 6: What Is A Wireless Solution
Q-MATIC Queue Management Systems Wireless solutions Introduction What is a wireless solution What is a wireless solution? A wireless solution is a system in which some or all wires are replaced by other techniques. Wires have two purposes: power supply and signal transmission. Usually it is easier to replace the signal transmission than the power supply. -
Page 7: Products
Multi interface with radio ............8 ID Code................. 8 Input ................... 10 Output ................10 Radio Receiver ..............10 Technical specifications, MI2280 Multi Interface with radio.. 10 Wireless terminals..............11 To change battery ............... 13 Technical specifications, Wireless Terminal......13 057.01C... -
Page 8: Multi Interface With Radio

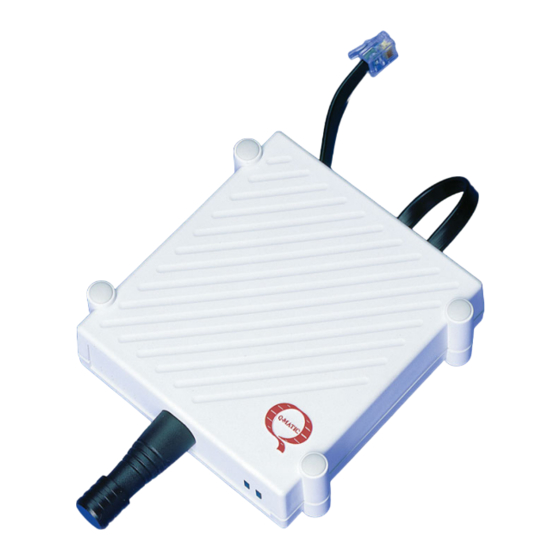

Wireless solutions Products Multi interface with radio The MI2280 multi interface with radio is the radio receiver in the wireless solution. The combination of a radio receiver and a multi interface makes it a very powerful device. ID Code The ID Code and the Sub ID Codes identify the multi interfaces. Use the dip-switches inside the interface to select the ID Code and the Sub ID Code. - Page 9 Q-MATIC Queue Management Systems Wireless solutions Products Use the following tables to get the correct ID Codes. Dip-switches 1 and 2 are not used. x = does not matter - = off Table 1: ID Code Dip 1 Dip 2...
-
Page 10: Input
The maximum output current on a single output is also 200 mA. The outputs are protected from high currents. Radio Receiver The multi interface MI2280 Radio has a 433.92 MHz or a 315.00 MHz radio receiver. It is used together with the wireless terminals. Technical specifications, MI2280 Multi Interface with radio Article Number 433.92 MHz: 10112044... -
Page 11: Wireless Terminals
Q-MATIC Queue Management Systems Wireless solutions Products Table 3: Technical Data Width 102 mm Length 141 mm Height 52 mm Weight 145 g Power Supply 24 V Power Consumption, Stand by 20 mA Power Consumption, Maximum 220 mA Maximal total output current... - Page 12 Q-MATIC Queue Management Systems Wireless solutions Products Each wireless terminal has three buttons. The buttons have no default functions; you must write a script program for each button. Two of the buttons are large and easy to press. These buttons should be used for functions that are frequently used, for example to call the next customer.
-
Page 13: To Change Battery
Incorrect inserted batteries may damage the terminal. Make sure that they are correctly inserted. Technical specifications, Wireless Terminal Article Number 433.92 MHz - Europe: 10320201 433.92 MHz - USA: 10320210 315.00 MHz - USA: 10320205 Used with MI2280 Multi Interface with radio Q-NOVA Q-DIRECT Table 4: General Technical Data Diameter 70 mm Thickness... - Page 14 Q-MATIC Queue Management Systems Wireless solutions Products Table 4: General Technical Data Operating Temperature 10 - 32 °C Storage Temperature -10 - 40 °C Operating Humidity 15 - 85 % Rel. humidity Storage Humidity 10 - 90 % Rel. humidity Table 5: 433.92 MHz Europe...
- Page 15 Q-MATIC Queue Management Systems Wireless solutions Products Table 7: 315.00 MHz Maximum output power 1 mW Frequency Minimum 314.60 MHz Typical 315.00 MHz Maximum 315.39 MHz Range 20 - 60 m Complies to the following standard FCC15.231 FCC ID:RT2-10320205 This device complies with Part 15 of the FCC Rules. Operation is subject...
- Page 16 Q-MATIC Queue Management Systems Wireless solutions Products Q-MATIC INTERNATIONAL 057.01C...
-
Page 17: Placement
Q-MATIC Queue Management Systems Wireless solutions 3. Placement Placement Topics in this chapter Placement of the components .......18 057.01C Q-MATIC INTERNATIONAL... -
Page 18: Placement Of The Components
Q-MATIC Queue Management Systems Wireless solutions Placement Placement of the components The Wireless Solution uses radio signals for communication. The wireless terminals uses very low output power (10 mW for 433.92 MHz) and the result is that the range for the terminals is 80 m or less. Obstacles, interference from other radio sources, etc. - Page 19 Q-MATIC Queue Management Systems Wireless solutions Placement Workstation Workstation Interface Workstation All workstation must be able to call customers. There are no walls or other obstacles between any workstation and the interface. Interface Workstation Workstation Workstation All workstations are placed close together. The interface is placed close to the workstations.
- Page 20 Q-MATIC Queue Management Systems Wireless solutions Placement It is possible to have more than one multi interface with radio in the same system. This can be necessary when you want to cover a large area or more than one room. Two multi interfaces must never be placed closer than two meters from each other.
-
Page 21: Q-Win 55.01P And Q
Q-MATIC Queue Management Systems Wireless solutions 4. Q-WIN 55.01p and q Q-WIN 55.01p and q Topics in this chapter Settings ..............22 057.01C Q-MATIC INTERNATIONAL... -
Page 22: Settings
Q-MATIC Queue Management Systems Wireless solutions Q-WIN 55.01p and q Settings It is possible to use the multi interface with radio and the wireless terminal together with Q-WIN version 55.01p and 55.01q. Both Q-WIN versions have settings for the multi interface with radio. - Page 23 Q-MATIC Queue Management Systems Wireless solutions Index Article Number 10, 13 Dip-switches 9 ID Code 8 inputs 10 MI2280 8 multi interface with radio 8 outputs 10 placement 18 Q-WIN 55.01p 22 Q-WIN 55.01q 22 radio signatures 22 settings 22...
