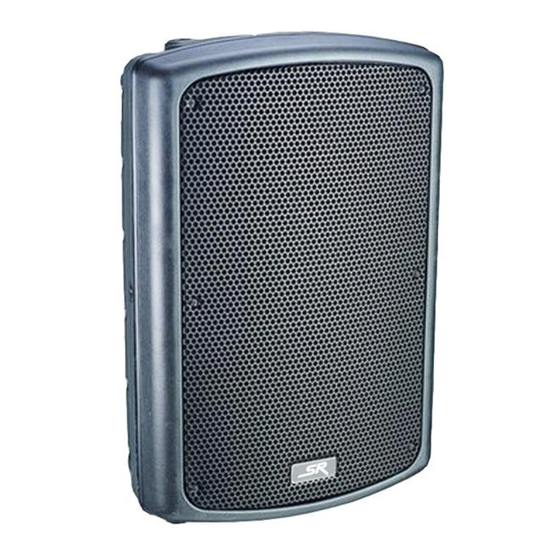

- Page 1 SR10 800-watt, 10-inch Passive PA Speaker (604410) SR12 1000-watt, 12-inch Passive PA Speaker (604412) SR15 1000-watt, 15-inch Passive PA Speaker (604415) SR12A 760-Watt 12-inch Bi-Amplified Powered PA Speaker (604512) SR15A 760-Watt 15-inch Bi-Amplified Powered PA Speaker (604515) User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This speaker is intended for indoor use only. ... -
Page 3: Customer Service
Disconnect the speaker from the power source when replacing the fuse. Replace the fuse only with the same type (active models only). Unplug this speaker from the power source when not in use (active models only). Take care to prevent damage to the power cord. Do not allow it to become crimped, pinched, walked on, or become tangled with other cords. -
Page 4: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x PA Speaker 1x User's Manual PRODUCT OVERVIEW Passive Models 1. - Page 5 Active Models 1. LIMIT: The LED illuminates whenever the system limiter is active. 2. POWER: The LED illuminates when power is applied. 3. MASTER: This knob controls the overall (master) volume level. 4. HIGH: This knob controls the high frequency (treble) output level (±12dB @ 10kHz).
- Page 6 WIRING The following diagram provides wiring details for the various connector types used by these PA speakers.
-
Page 7: Installation Notes
INSTALLATION NOTES For best results installing and using these speakers, please consider the following guidelines. The speakers should be placed in a position that allows for unobstructed sound projection. In many cases, it is beneficial to use elevated tripod stands to achieve maximum sound dispersion and reach, such as the Monoprice PA Speaker Stands (P/N 602350). -
Page 8: Technical Support
Check the website for support times and links. SPECIFICATIONS Passive Models Model Name SR10 SR12 SR15 Model Number 604410 604412... - Page 9 Sensitivity 94dB 96dB 97dB Sound Pressure 123dB 126dB 127dB Level Dispersion 90° x 40° 90° x 40° 90° x 40° Crossover 2.5kHz 2.2kHz 2.0kHz Frequency Input Connections 2x NL4, 2x 1/4" 2x NL4, 2x 1/4" 2x NL4, 2x 1/4" Hanging Points 4x M10 on top 4x M10 on top 4x M10 on top...
- Page 10 High Frequency Amplifier 30 watts 30 watts Power Output (RMS) High Frequency Amplifier 120 watts 120 watts Power Output (peak) Frequency Response (-10dB) 55Hz ~ 20kHz 50Hz ~ 20kHz Nominal Impedance 8 ohms 8 ohms Sound Pressure Level 121dB 122dB Dispersion 90°...
