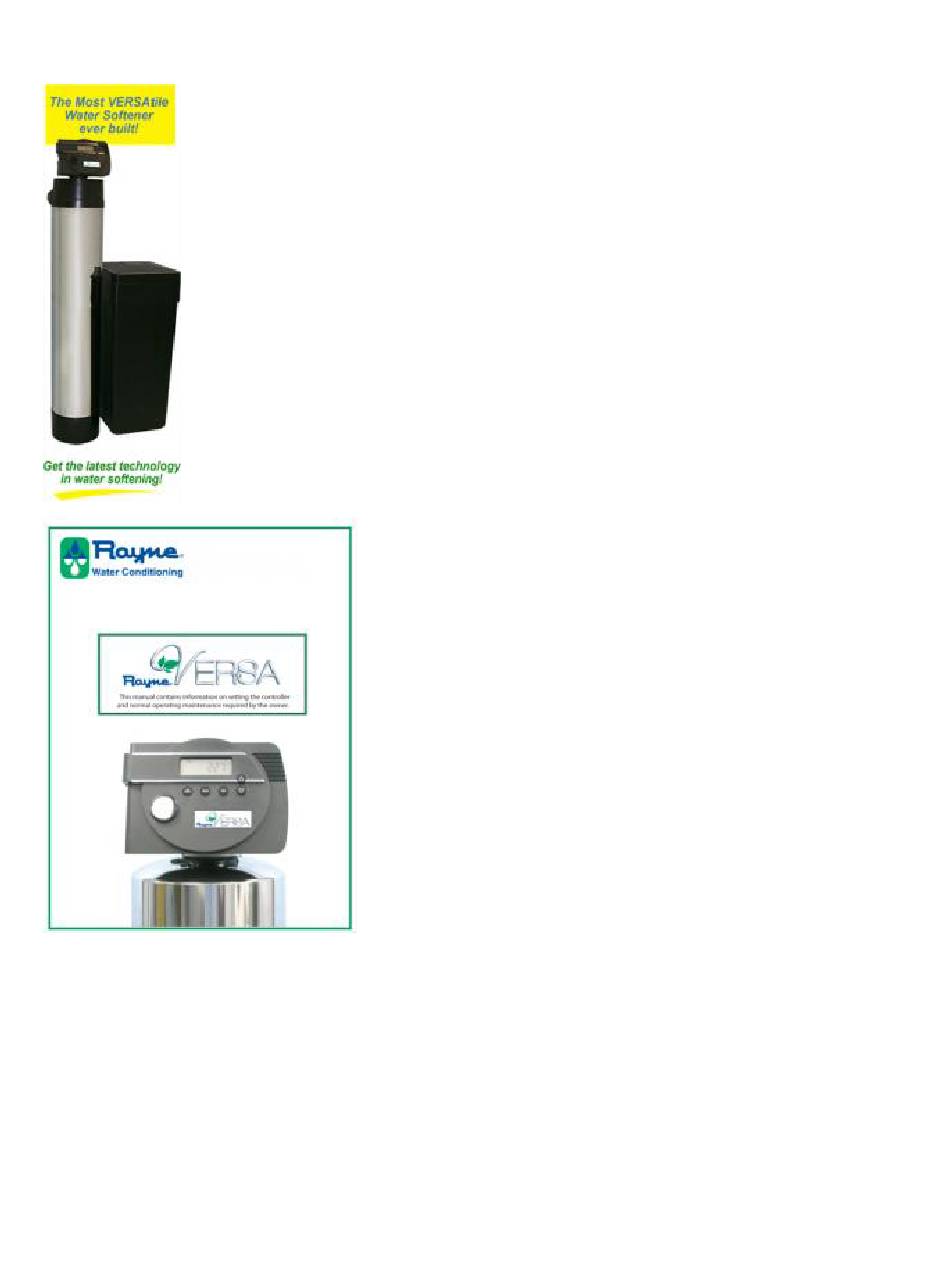

Rayne Versa Service Manual
Water Conditioning
This manual contains information on setting the controller
and normal operating maintenance required by the owner.
This valve can be used on any tank but comes standard on the Rayne Versa Softeners listed on the
following page
Rayne Versa Service Manual
MODEL NUMBERS
DESCRIPTION
COMMENTS
Advertisement
Table of Contents
Related Manuals for Rayne Versa
Summary of Contents for Rayne Versa
- Page 1 This manual contains information on setting the controller and normal operating maintenance required by the owner. This valve can be used on any tank but comes standard on the Rayne Versa Softeners listed on the following page Rayne Versa Service Manual...
- Page 2 Msuffix is for adding the mixing valve to allow settings with some hardness “bleed by” RVD- 1500 RVD-1500M 1.5 cubic feet of resin RVD-2000 RVD-2000-M 2 cubic feet of resin Valve only Rayne Versa Upflow Valve Valve only Rayne Versa Downflow Valve Valve only Rayne Versa DM Valve...
- Page 3 V3381-01ES WS 1ER FRONT COVER ASSEMBLY BLACK/SILVER V3107-01 WS1 MOTOR V3106-01 WS1 DRIVE BRACKET & SPRING CLIP V3491ER-01BOARD WS1 THRU 2L ER PC BOARD REPLACE V3110 WS1 DRIVE REDUCING GEAR 12X36 V3109 WS DRIVE GEAR COVER V3186 WS AC ADAPTER 11OV-12V V186EU WS AC ADAPTER 220..240V-12V EU Shown Not...
- Page 4 for proper mounting location dimensions on the backplate. Wiring For Correct On/Off Operation PC Board Relay Relay Terminal Block RLY1 Coil – Coil + AC Adapter U.S. International Supply Voltage 120 VAC 230VAC Supply Frequency 60 Hz 50 HZ Output Voltage 12VAC 12VAC Output Current 500 mA...
- Page 5 When in operation normal user displays such as time of day, gallons remaining before regeneration, days remaining before regeneration or lbs. salt remaining before regeneration are shown. When stepping through a procedure, if no buttons are pressed within five minutes, the display returns to a normal user display.
- Page 6 simultaneously for 3 seconds and release. Then press NEXT and V simultaneously for 3 seconds and release. Step 20S – Use ^ or V to select 1.0 for 1″ valve, 1.25 for 1.25″ valve, 1.5 for 1.5″ valve, 2.OL for 2L valve or 2,0 for 2″...
- Page 7 The upfiow cycle may not be used on the WS 1.25, WS 1.5, WS2 or WS21, control valves, because the V3407 and V3725 pistons are designed for downflow use only. Versa Compatible fittings and accessories: 1″ PVC Male NPT Elbow Assembly; 3/4″ x 1″ PVC Solvent Elbow Assembly;1″ Brass Sweat Assembly LF...
- Page 8 Order No. V360702LF 1.25″ Plastic Male NOT Assembly Order No. V3007.07 • Order V4007-091- Order No. V3007.12 1″ SharkBite® Assembly 3/4″ John Guest QC ElboW Assembly Order No. V30071 Order No.:V3OO715 Order No. V3007-031F 1.25″ & 1.5″ PVC Solvent Assi Order No.
