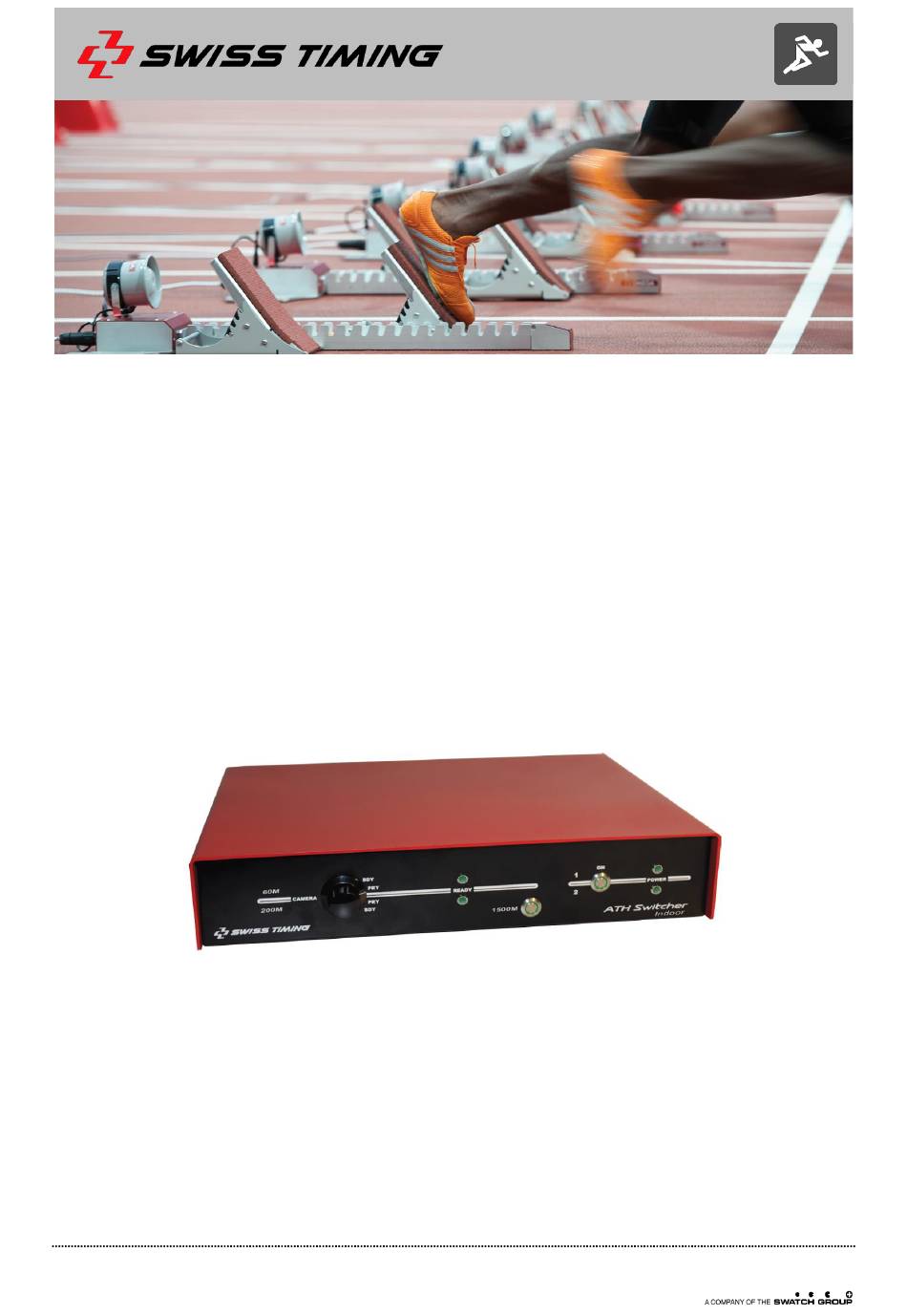

- Page 1 ATHLETICS SWITCHER - INDOOR USER’S MANUAL 3373.502.02 l Version 1.0 l Swiss Timing LTD Phone +41 32 488 36 11 P.O. Box 138, Rue de l’Envers 1 info@swisstiming.com CH-2606 Corgémont - Switzerland www.swisstiming.com...
- Page 2 Caution and safety precautions Never use any other charger than the supplied or a type approved by Swiss Timing. This could destroy the battery, cause damage to unit, and possible cause personal injury due to fire or/and electrical shock.
-
Page 3: Table Of Contents
ASI / Athletics Switcher Indoor TABLE OF CONTENTS INTRODUCTION ........................1 CONNECTIONS ........................2 Connections overview ....................... 2 Front view ......................... 2 Rear View .......................... 2 Distribution of RS422 data ....................3 Distribution of START & FINISH contacts ................3 CABLING .......................... - Page 4 Install drivers ........................11 CONNECTORS DESCRIPTION ....................13 TECHNICAL SPECIFICATIONS ....................14 Mechanical characteristics ....................14 Electrical characteristics ....................14 APPENDICE........................15 Index figures ........................15 Version history ........................ 15 Page 4 3373.502.02 Version 1.0...
-
Page 7: Introduction
ASI / Athletics Switcher Indoor 1 INTRODUCTION The Athletics Switcher Indoor (ASI) is a device for advanced competition level distributing input and output data of athletics devices and accessories. 110-240 VAC/15VDC. It allows to connect and switch 2 photofinish (Primary & Secondary) cameras and laptops in the control room for 60m sprint and 2 photofinish (Primary &... -
Page 8: Connections
2 CONNECTIONS 2.1 Connections overview Only one Start (StartTime) or False start (ASC) can be connected on the track. All unused start systems must be disconnected. You may only reconnect start system if necessary. 2.2 Front view 2.3 Rear View Page 2 3373.502.02 Version 1.0... -
Page 9: Distribution Of Rs422 Data
ASI / Athletics Switcher Indoor 2.4 Distribution of RS422 data ASC3 False start Scoreboard 2.5 Distribution of START & FINISH contacts START FINISH Version 1.0 3373.502.02 Page 3... -
Page 10: Cabling
3 CABLING There are several possible cabling solutions and you will find some examples below. 3.1 Timing Room connections Single power supply Double power supply 3.1.1 3.1.2 Single power supply and external Double external batteries 3.1.3 3.1.4 battery Page 4 3373.502.02 Version 1.0... -
Page 11: Cameras Connections
ASI / Athletics Switcher Indoor 3.2 Cameras connections All cameras can be positioned in the timing room or 2 in timing room & 2 on the track : The selection of the PRY-200M and SDY-200M switch is valid for Track and Timing room cameras. -
Page 12: Cameras Pry-60M, Sdy-60M, Pry-200M-Track, Sdy-200M-Track
Cameras PRY-60M, SDY-60M, PRY-200M-Track, SDY-200M-Track 3.2.2 Cameras PRY-60M, SDY-60M, PRY-200M-Track, SDY-200M-TimingRoom 3.2.3 An additional timer can be connected to the START and FINISH contacts trough the 200M PRY or SDY camera connector. A specific cable is needed according to the timer model. In this configuration, select the INFIELD switch in position CELL. -
Page 13: Cameras Pry-60M, Sdy-60M, Pry-200M-Track, Sdy-200M-Track, Timer
ASI / Athletics Switcher Indoor Cameras PRY-60M, SDY-60M, PRY-200M-Track, SDY-200M-Track, Timer 3.2.4 Version 1.0 3373.502.02 Page 7... -
Page 14: Rear Panel Description
3.3 Rear panel description Power 10-30VDC 3.3.1 There are 2 DC power inputs, the second one is used as Backup. You can connect: 1 external power supply or 1 external battery 12VDC (POWER 1 or POWER 2) 2 external power supplies (POWER 1 and POWER 2) 1 external power supply and 1 external battery 12VDC (POWER 1 and POWER 2) 2 external batteries 12VDC (POWER 1 and POWER 2) If only power supplies are connected to the ASO, add an Uninterruptable Power Supply... -
Page 15: Track
ASI / Athletics Switcher Indoor Track 3.3.3 Connect the ASO to the track with the cable 1920.010. Galactica 3.3.4 +Connect the Galactica computer (INT131) with the cable 1871.xxx (xxx= cable length in meters / 010, 025). Only the running time is transferred (same information as track scoreboards). -
Page 16: Operating
4 OPERATING 4.1 Power on When cabling is done as specified in previous chapters, switch on the unit by pressing the ON button. The POWER leds will light up if power is connected. Power 1 led ON button Power 2 led 4.2 Primary &... -
Page 17: Usb Connection
ASI / Athletics Switcher Indoor USB CONNECTION 5.1 Install drivers 1. Power on your computer and boot to Windows. 2. Put the driver CD in the CD-ROM then run the PL-2303 driver (See Fig.1 and 2) Fig. 1 Fig. 2 3. - Page 18 5. After driver installation, please follow the below process to verify whether the device was properly installed. Click Start – Setting -- Control panel -- double click system icon – Hardware Device Manager -- Double click on ports (COM&LPT) (See Fig. 4). Fig.
-
Page 19: Connectors Description
ASI / Athletics Switcher Indoor 6 CONNECTORS DESCRIPTION Version 1.0 3373.502.02 Page 13... -
Page 20: Technical Specifications
7 TECHNICAL SPECIFICATIONS 7.1 Mechanical characteristics Dimensions: 440 x 300 x 55 mm Dimensions: Abmessungen: Weight: 4.5 kg Poids: Gewicht: Protection: IP42 (indoor use) Protection: Schutzklasse: Working temperature: 0°C to 50° C Température de fonctionnement: Betriebstemperatur: Temperature range storage: -30 to 85°C Température de stockage: Lagertemperatur: 7.2 Electrical characteristics... -
Page 21: Appendice
ASI / Athletics Switcher Indoor 8 APPENDICE 8.1 Index figures No table of figures entries found. 8.2 Version history Version Modifications since last version Initial version Version 1.0 3373.502.02 Page 15... - Page 22 NOTES Page 16 3373.502.02 Version 1.0...
- Page 23 Swiss Timing LTD Phone +41 32 488 36 11 P.O. Box 138, Rue de l’Envers 1 info@swisstiming.com CH-2606 Corgémont - Switzerland www.swisstiming.com...
