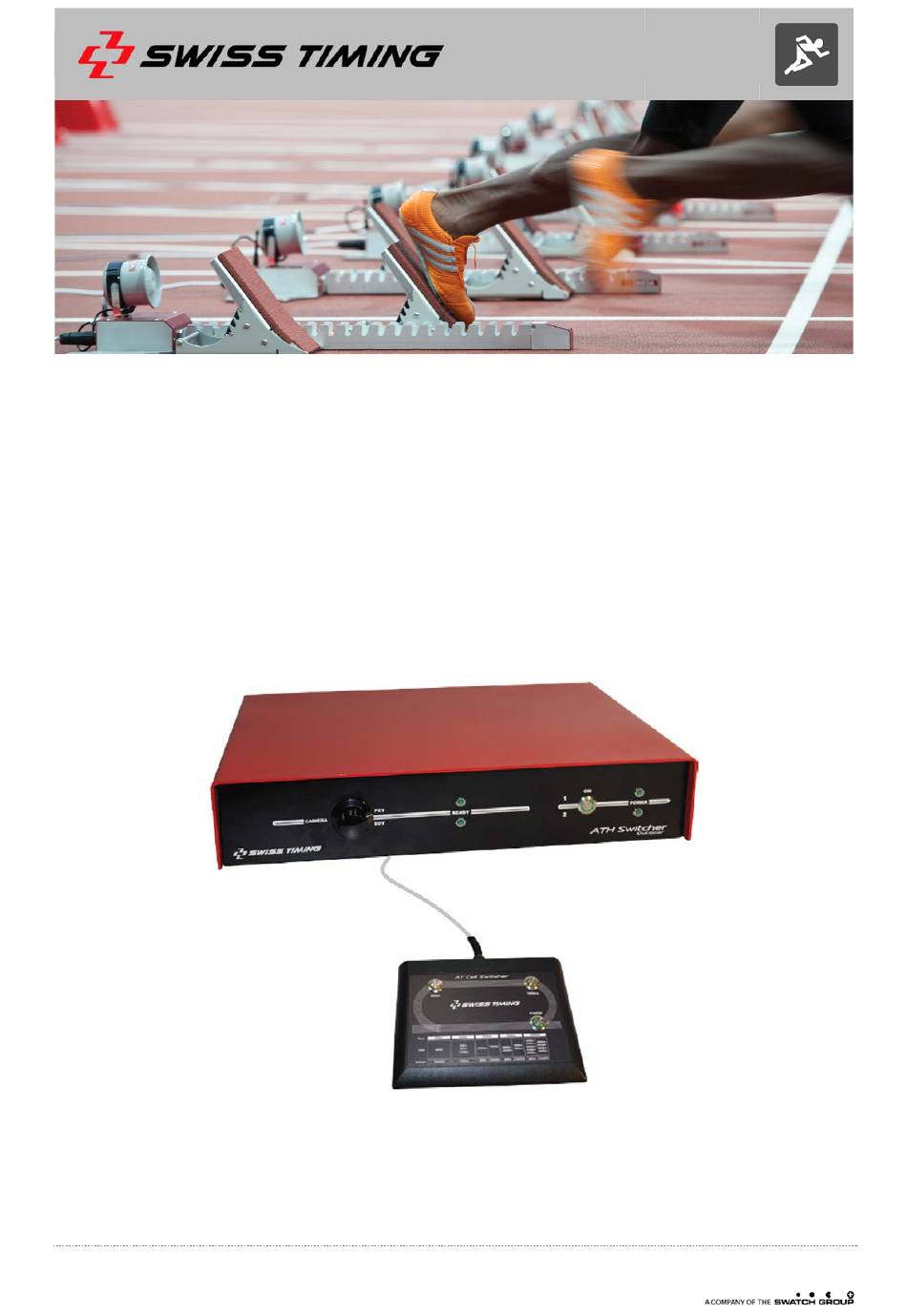

- Page 1 ATHLETICS SWITCHER ‐ OUTDOOR USER’S MANUAL 3373.501.02 l Version 1.0 l Swiss Timing LTD Phone +41 32 488 36 11 P.O. Box 138, Rue de l’Envers 1 info@swisstiming.com CH‐2606 Corgémont ‐ Switzerland www.swisstiming.com ...
- Page 2 Caution and safety precautions Never use any other charger than the supplied or a type approved by Swiss Timing. This could destroy the battery, cause damage to unit, and possible cause personal injury due to fire or/and electrical shock. Never bypass a power cord ground lead by breaking off the ground pin, or by using inappropriate extension cords or adapters. Never plug a power cord into the AC power source until you have made sure that all installation, cabling and power levels, are proper, and that the applicable procedures in this manual have been followed. Protect the equipment against splashing, rain and excessive sun rays. Never use the device if it is damaged or insecure. Verify the selection of the power distribution. Verify that the voltage quoted on the rating plate is the same as your voltage. Connect the appliance only to power sockets with protective earth. The use of incorrect connection voids warranty. This program may be modified at any time without prior notification. Do not open the case; there is nothing that needs servicing inside it. Nevertheless, if the case must be opened, you must call for some qualified personnel. The power supply cable must be disconnected before opening the case. During the transport of all Swiss Timing equipment delivered with a reusable carry case, the said case should be used at all times. This is imperative to limit the damage, such as shocks or vibration that can be caused to the units during transport. The same cases should also be used when returning equipment to Swiss Timing for repair. Swiss Timing reserves the right to refuse all guarantees if this condition is not fulfilled. If the installation includes a horn, be sure to maintain a sufficient security distance from the public. ...
-
Page 3: Table Of Contents
ASO / Athletics Switcher Outdoor TABLE OF CONTENTS INTRODUCTION ........................ 1 CONNECTIONS ........................ 2 Connections overview ....................... 2 Front view ......................... 2 Rear View .......................... 2 Distribution of RS422 data .................... 3 Distribution of START & FINISH contacts ................ 3 CABLING .......................... 4 ... - Page 4 USB CONNECTION ....................... 1 0 Install drivers ........................ 1 0 CONNECTORS DESCRIPTION .................... 12 TECHNICAL SPECIFICATIONS .................... 13 Mechanical characteristics .................... 1 3 Electrical characteristics .................... 1 3 APPENDICE .......................... 14 Index figures ........................ 1 4 ...
- Page 6 ...
-
Page 7: Introduction
ASO / Athletics Switcher Outdoor 1 INTRODUCTION The Athletics Switcher Outdoor (ASO) is a device for advanced competition level distributing input and output data of athletics devices and accessories. It allows to connect and switch 2 photofinish (Primary & Secondary) cameras and laptops with false start system, timing scoreboards, wind gauge (sprint), finish photocells, headset, and additional RS422 output. Connection of additional photofinish camera infield (start & finish) is also available. Optional keyboard for intermediate photocells at 200m and 1500m. Power supply: 10‐30VDC, external PSU 110‐240 VAC/15VDC. Dedicated keyboard for photocell activation Possibility to connect 3 OSV cameras ... -
Page 8: Connections
2 CONNECTIONS 2.1 Connections overview Only one Start (StartTime) or False start (ASC) can be connected on the track. All unused start systems must be disconnected. You may only reconnect start system if necessary. 2.2 Front view 2.3 Rear View Page 2 3373.501.02 Version 1.0 ... -
Page 9: Distribution Of Rs422 Data
ASO / Athletics Switcher Outdoor 2.4 Distribution of RS422 data ASC3 False start Windgauge Scoreboard 2.5 Distribution of START & FINISH contacts START FINISH Version 1.0 3373.501.02 Page 3 ... -
Page 10: Cabling
3 CABLING There are several possible cabling solutions and you will find some examples below. 3.1 Timing Room connections Single power supply Double power supply 3.1.1 3.1.2 Single power supply and external Double external batteries 3.1.3 3.1.4 battery Page 4 3373.501.02 Version 1.0 ... -
Page 11: Cameras Connections
ASO / Athletics Switcher Outdoor 3.2 Cameras connections Cameras Primary & Secondary Cameras Primary & Infield (Track) as 3.2.1 3.2.2 Secondary Cameras Primary & Secondary & Infield (Track) 3.2.3 Version 1.0 3373.501.02 Page 5 ... -
Page 12: Cameras Primary & Secondary & Infield (Track & Shadow)
Cameras Primary & Secondary & Infield (Track & Shadow) 3.2.4 The selection of the INFIELD switch is valid for Infield Track and Shadow cameras. If CELL is selected, both cameras will record when Finish photocell is activated. If MAN is selected, both cameras will record ... -
Page 13: Rear Panel Description
ASO / Athletics Switcher Outdoor 3.3 Rear panel description Power 10‐30VDC 3.3.1 There are 2 DC power inputs, the second one is used as Backup. You can connect: ‐ 1 external power supply or 1 external battery 12VDC (POWER 1 or POWER 2) ‐ 2 external power supplies (POWER 1 and POWER 2) ‐ 1 external power supply and 1 external battery 12VDC (POWER 1 and POWER 2) ‐ 2 external batteries 12VDC (POWER 1 and POWER 2) ‐ If only power supplies are connected to the ASO, add an Uninterruptable Power Supply (UPS). Cameras 3.3.2 3 cameras can be connected to the ASO unit. Primary and Secondary cameras are positioned in the timing room and Infield could be installed in the track or in the control room as Shadow. ... -
Page 14: Track
Track 3.3.4 Connect the ASO to the track with the cable 1920.010. Galactica 3.3.5 Connect the Galactica computer (INT131) with the cable 1871.xxx (xxx= cable length in meters / 010, 025). Only the running time is transferred (same information as track scoreboards). Telephone 3.3.6 Connect the telephone unit to the track with the cable 1878.xxx (xxx= cable length in meters / 010, 050,100). ... -
Page 15: Operating
ASO / Athletics Switcher Outdoor 4 OPERATING 4.1 Power on When cabling is done as specified in previous chapters, switch on the unit by pressing the ON button. The POWER leds will light up if power is connected. Power 1 led ON button Power 2 led 4.2 Primary & Secondary Selection Before the first race, select the switch in position Primary (PRY). When a problem appears during the event, select the switch in position secondary (SDY). Data will be immediately switched. ... -
Page 16: Usb Connection
USB CONNECTION 5.1 Install drivers 1. Power on your computer and boot to Windows. 2. Put the driver CD in the CD‐ROM then run the PL‐2303 driver (See Fig.1 and 2) Fig. 1 Fig. 2 3. Connect Athletics Switcher PRY or SDY with your computer by USB cable. 4. Windows will auto detect four "new USB devices" and start InstallShield Wizard (See Fig.3) Fig. 3 Page 10 3373.501.02 Version 1.0 ... - Page 17 ASO / Athletics Switcher Outdoor 5. After driver installation, please follow the below process to verify whether the device was properly installed. Click Start – Setting ‐‐ Control panel ‐‐ double click system icon – Hardware Device Manager ‐‐ Double click on ports (COM&LPT) (See Fig. 4). Fig. 4 ...
-
Page 18: Connectors Description
6 CONNECTORS DESCRIPTION Page 12 3373.501.02 Version 1.0 ... -
Page 19: Technical Specifications
ASO / Athletics Switcher Outdoor 7 TECHNICAL SPECIFICATIONS 7.1 Mechanical characteristics Athletics Switcher Photocells Switcher Dimensions: 440 x 300 x 55 mm 200 x 150 x 60 mm Dimensions: Abmessungen: Weight: 3.7 kg 0.6 kg Poids: Gewicht: Protection: IP42 (indoor use) Protection: Schutzklasse: Working temperature: 0°C to 50° C Température de fonctionnement: Betriebstemperatur: Temperature range storage: ‐30 to 85°C Température de stockage: Lagertemperatur: 7.2 Electrical characteristics External power supply : 110 ‐ 240 VAC / 15VDC Power supply: Alimentation: Speisung: ... -
Page 20: Appendice
8 APPENDICE 8.1 Index figures No table of figures entries found. 8.2 Version history Version Modifications since last version 1.0 Initial version Page 14 3373.501.02 Version 1.0 ... - Page 21 ASO / Athletics Switcher Outdoor NOTES Version 1.0 3373.501.02 Page 15 ...
- Page 23 Swiss Timing LTD Phone +41 32 488 36 11 P.O. Box 138, Rue de l’Envers 1 info@swisstiming.com CH‐2606 Corgémont ‐ Switzerland www.swisstiming.com ...
