OWNER & OPERATOR
INSTRUCTION MANUAL

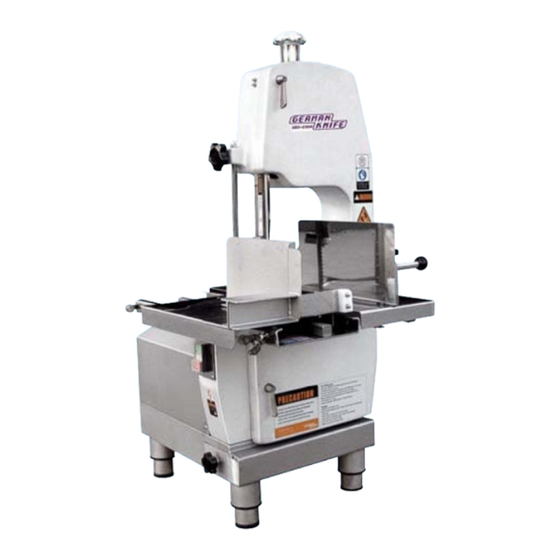

Model No.
GBS-230A
GBS-270S
IMPORTANT SAFETY NOTICE
To ensure safe and trouble free performance of you new
German knife slicer, we suggest that all personnel who will
use and maintain the slicer read and understand the manual
before operating the equipment. Should there be any
questions or if we can be of further assistance, please call us
toll free at (800) 500-3519.
www.turboairinc.com
For service contact:
German Knife Inc.
1-800-500-3519
www.turboairinc.com
Advertisement
Table of Contents
Related Manuals for German Knife GBS-230A
Summary of Contents for German Knife GBS-230A
- Page 1 IMPORTANT SAFETY NOTICE To ensure safe and trouble free performance of you new German knife slicer, we suggest that all personnel who will use and maintain the slicer read and understand the manual before operating the equipment. Should there be any questions or if we can be of further assistance, please call us toll free at (800) 500-3519.
-
Page 2: Table Of Contents
Outer Dimension Specification, Motor Wiring Adjustments Start, When the Machine Operation is Blacked Due to Overloads Cleaning, Changing Saw Blade Parts Description GBS-230A Parts Description GBS-270S Upper Saw Wheel Parts Lower Saw Wheel Parts Saw Guide Parts Meat Gauge Parts... -
Page 3: Operating And Service Manual
12. Always disconnect power supply before removing shrouds, removable guards, covers, doors, fences, panels for servicing, cleaning or any other reason. 13. Use only GERMAN KNIFE parts and accessories properly installed, contact you nearest service agency or The GERMAN KNIFE CORP. for authorized referral assistance. -
Page 4: Outer Dimension
OUTER DIMENSION GBS-230A GBS-270S... - Page 5 SPECIFICATION MODEL GBS-230A GBS-270S Dimension 19.8"x28"x37.5" 27.1"x44.6"x65.5" Motor AC120Vx1Phasex3/4HP AC120Vx1Phasex1.5HP Weight 88lbs 275lbs Stationary 7.6"x19.7" 11"x30" Table Carriage 13.8"x22.4" 9.5"x13" Loading 14" 22.2" Length of Saw Blade 65.5"(1665mm) 92.9"(2360mm) MOTOR WIRING 1. Interchange of current is made in motor outlet box. Changing instructions are on motor plate or motor outlet box.
-
Page 6: Adjustments
(1)Turn the handle of the upper part of the machine clockwise to adjust tension. -GBS-230A : Turn until the sound with a bang occurs twice to three times. (2)Adjust part A while rotating it little by little in order to accurately position Saw Blade. - Page 7 START This machine has a magnetic safety switch installed to prevent running with the door open to break the electrical connection. ㆍClose the door and latch top and bottom. Insert electrical plug into outlet. ㆍPress the green "ON" button. ㆍUse the red "STOP" button (Located below the start button) when finished. WHEN THE MATHINE'S OPERATION IS BLOCKED DUE TO OVERLOAD The motor has an overload switch in...
- Page 8 CLEANING Clean the machine often and thoroughly at least once a day : ㆍRemove the saw blade, upper wheel door and rolling table from the machine. ㆍClean the machine with a soft brush or cloth and water. Avoid water contact with electrical parts and motor area. ㆍReplace all remove parts when finished.
- Page 9 GBS-230A Tension Assembly Upper Wheel Assembly Door Assembly Safety Saw Guard Set Meat Gauge Assembly Meat Carriage Assembly Lower Wheel Assembly Motor Cover Bearing Case Assembly Base & Scrap...
- Page 10 GBS-270S Tension Assembly Upper Wheel Assembly Upper Door Assembly Safety Saw Guard Set Meat Carriage Assembly Meat Gauge Assembly Channel Assembly Lower Door Assembly Scrap Box Bearing Case Assembly Lower Wheel Assembly...
-
Page 11: Upper Saw Wheel Parts
UPPER SAW WHEEL PARTS 270S-053 270S-013 270S-036 270S-034 270S-050 270S-040 270S-026 270S-028 MS501 WN516 HB1412 LW14 270S-035 270S-027 HN516 HB51635 ITEM NO DESCRIPTION ITEM NO DESCRIPTION 270S-050 Upper Saw Wheel Assy 270S-028 Upper Wheel Cleaner Bracket 270S-040 Bearing Cover 270S-035 Upper Wheel Hinge 270S-053 Tension Handle... -
Page 12: Lower Saw Wheel Parts
LOWER SAW WHEEL PARTS HB1415 HB38 HN14 FW38 270S-046 270S-051 270S-049 CN20 270S-028 270S-027 270S-024 270S-026 WN516 270S-038 ITEM DESCRIPTION ITEM DESCRIPTION 270S-051 Lower Saw Wheel 270S-024 Scrap Box 270S-049 Saw Guide Bracket 270S-046 Saw Guide 270S-026 Wheel Cleaner Pin 270S-027 Wheel Cleaner 270S-028... -
Page 13: Saw Guide Parts
SAW GUIDE PARTS 270S-04501 270S-030 KN51615 270S-047 270S-049 279S-048 270S-046 WN51610 FW516 HB1415 HN14 HB51612 FW516 ITEM DESCRIPTION ITEM DESCRIPTION 270S-04501 Saw Guide Bar Gib 270S-030 Saw Guide Bar Spacer 270S-047 Safety Saw Guard 270S-049 Saw Guide Bracket 270S-046 Saw Guide 270S-048 Saw Guide Bar KN51615... -
Page 14: Meat Gauge Parts
MEAT GAUGE PARTS FW14 270S-023 HN14 270S-033 270S-02301 270S-020 FW14 LW14 HB1420 HN38 CN38 270S-019 270S-018 270S-020 KN51625 WN38 ITEM DESCRIPTION ITEM DESCRIPTION 270S-033 Meat Gauge Arm 270S-023 Meat Gauge Plate 270S-02301 Meat Gauge Rollor 270S-019 Meat Gauge Bracket 270S-020 Meat Gauge Fixed Bar 270S-020 Meat Gauge Fixed Bar... -
Page 15: Channel Parts
CHANNEL PARTS 270S-016 270S-057 270S-057 HB3830 LW38 FW38 270S-021 270S-025 270S-005 270S-011 270S-016 FW14 HB1420 ITEM DESCRIPTION ITEM DESCRIPTION 270S-016 Stopper 270S-057 Table Saw Guide Rear 270S-057 Table Saw Guide Front 270S-021 Table Saw Guide Bracket 270S-025 Carriage Guide Rial 270S-005 Channel 270S-011... -
Page 16: Meat Carriage Parts
MEAT CARRIAGE PARTS 270S-014 FW14 LW14 270S-032 HN14 BG608 BG608 FW14 LW14 HN14 270S-006 270S-016 270S-007 270S-011 ITEM DESCRIPTION ITEM DESCRIPTION 270S-014 Rollor Bearing Pin 270S-032 Guide Bearing Pin 270S-006 Meat Carriage 270S-007 Meat Carriage Guide 270S-011 Stop Bracket 270S-016 Stopper FW14 Flat Washer 1/4... -
Page 17: Drive Parts
DRIVE PARTS HB51630 270S-041 SW10 CN516 HN516 270S-038 VB42 SW01 270S-042 270S-029 270S-012 HB51625 LW516 HB3850 F120 MS501 FW516 270S-043 270S-039 270S-039 BG6204 BG6204 OSSB OSVB 270S-038 ITEM DESCRIPTION ITEM DESCRIPTION 270S-041 Bearing Case Pulley 270S-038 Bearing Case 270S-042 Motor Pulley 270S-012 Motor Base 270S-029... -
Page 18: Electronic Circuit
ELECTRONIC CIRCUIT MODEL : GBS-230A MODEL : GBS-270S... -
Page 19: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION 1. Electrical cord is unplugged. 1. Plug in electrical code. Meat Saw does not start. 2. Door is open. 2. Close door. 3. Motor overload has 3. Reset motor overload. tripped. 1. Do not over tighten 1. -
Page 20: Limited Warranty
All warranty claims must be authorized by German Knife or Radiance prior to the purchase of parts or labor. Failure to comply with these warranty policies will result in the voiding of warranty claims.
