Colormetrics P1000 User Manual

Hide thumbs Also See for P1000:

Advertisement

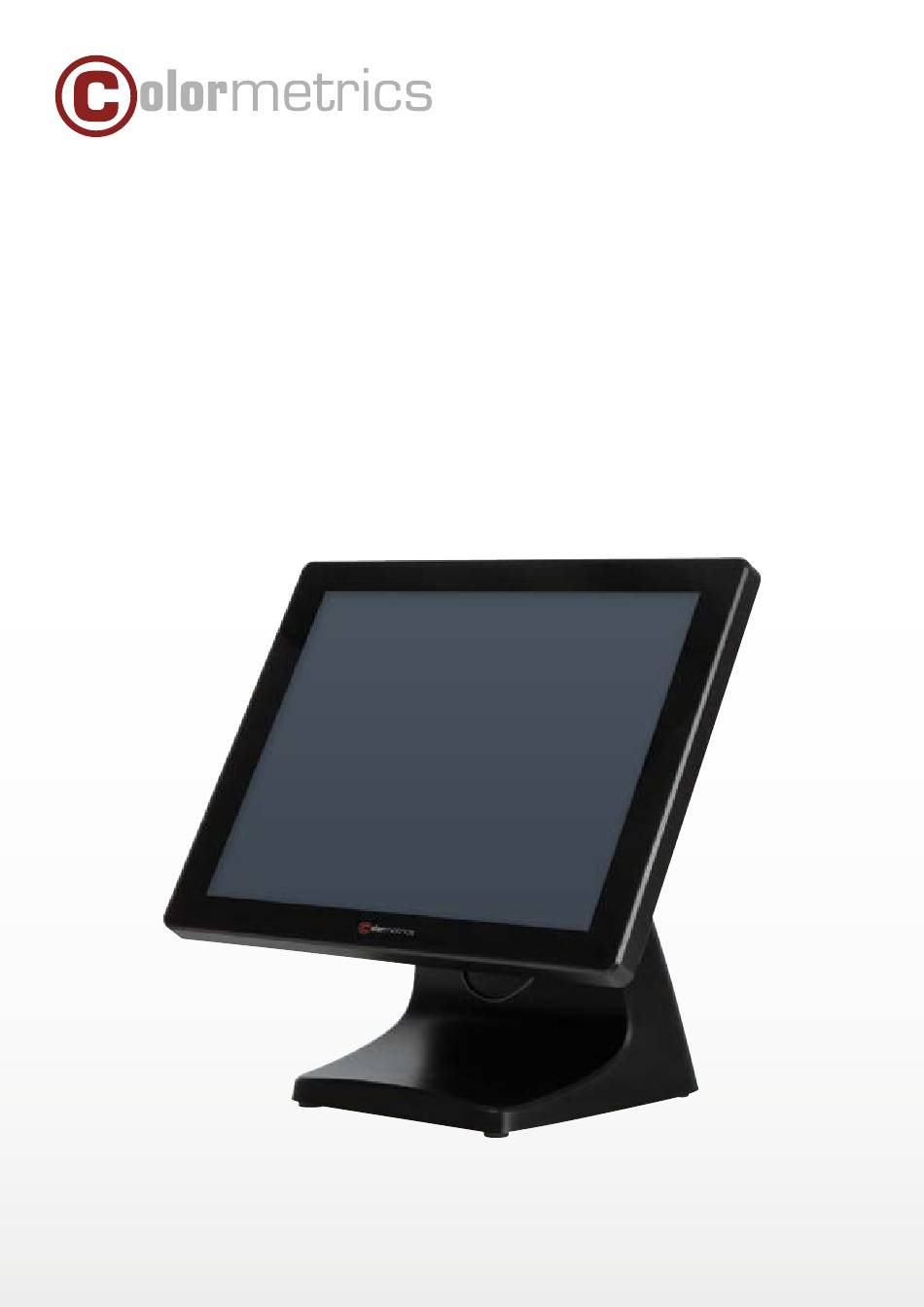

P1000
User Manual
Version 1.0
Errors excepted; subject to change
www.colormetrics.info
1
www.colormetrics.info
Colormetrics P1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Colormetrics P1000

  • Page 1 P1000 User Manual Version 1.0 Errors excepted; subject to change www.colormetrics.info www.colormetrics.info Colormetrics P1000...
  • Page 2 COPYRIGHT Copyright 2018 Colormetrics All Rights Reserved. This manual, software and firmware described in it are copyrighted by their respective owners and protected under the laws of the Universal Copyright Convention. You may not reproduce, transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, biological, molecular,m manual, or otherwise, any part of this publication without the express written permission of the publisher.
  • Page 3 Dispose used batteries according to the manufacture’s instructions. 2. Do not remove the cover, and ensure no user serviceable components are inside. Take the unit to the service center for service and repair. www.colormetrics.info Colormetrics P1000...
  • Page 4 European Union. This label is applied to various products to indicate that the product is not to be thrown away, but rather reclaimed upon end of life per this Directive. Colormetrics P1000 www.colormetrics.info...
  • Page 5: Table Of Contents

    6-2 Install framework 4.0 6-3 Configuration Utility of VFD 7. BIOS/Utility Setup 7-1 Advanced 7-1-1 Boot Configuration 7-1-2 Audio Configuration 7-1-3 Video Configuration 7-1-4 SATA Configuration 7-2 Security 7-3 Power 7-4 Boot 7-5 Exit 8. LCD Surface Cleaning www.colormetrics.info Colormetrics P1000...
  • Page 6: Packing List

    The 2 Display (8”/10”/12”) Optional Accessories Optional Accessories d. Plate for stand extend a. Single MSR a. Single MSR b. VFD 2nd Display (8",10") b. VFD c. The 2nd Display i-button c. The 2nd Display (8”/10”) (8”/10”) Colormetrics P1000 www.colormetrics.info...
  • Page 7: System View

    Please make sure the 19V DC is plugged in the right direction before plugging in DC jack. ☆ Please make sure 19V DC plug in the right direction before plugging in DC jack. 2-2 Back View 2-2 Back View VFD Cover / 2nd Monitor (optional) USB Port/MSR/I-Button HDD Bracket (optional) www.colormetrics.info Colormetrics P1000...
  • Page 8: Specification

    5-wire Resistive Type / Projected Capacitive Type Dimension (W x H x D) mm 364 x 339 x 229 Certifications CE / FCC / LVD Note: Protection IP64 on front bezel Intel® Celeron J1900 CPU does not support POSReady 2009 Colormetrics P1000 www.colormetrics.info...
  • Page 9: Internal Layout

    2-4 Internal Layout M/B PCBA Panel Back light LVDS SATA II MSR/i-Button 19V DC OUT Touch DDR3L Socket POWER BUTTON POWER LED DC IN 19V RJ45 RJ11 USB2.0 USB2.0&3.0 LINE OUT www.colormetrics.info Colormetrics P1000...
  • Page 10: Pin Definition

    Definition Definition 6-bit/8-bit selection DATA3+ DATA3- CLK+ CLK- DATA2+ DATA2- DATA1+ DATA1- DATA0+ DATA0- +3.3V +3.3V 2. DC Jack Pin Definition Definition +19V Ground +19V 3. COM connector Pin Definition Definition DCD# DTR# DSR# RTS# CTS# +5V/+12V/Ring Colormetrics P1000 www.colormetrics.info...
  • Page 11 7. Power On/Off connector Pin Definition 7. Power On/Off connector Pin Definition Definition Definition +5V Standby +5V Standby +5V Status +5V Status Power On# Power On# 8. 1D/2D scanner connector Pin Definition 8. 1D/2D scanner connector Pin Definition Definition Definition www.colormetrics.info Colormetrics P1000...
  • Page 12 9. Projected capacitive touch connector Pin Definition Definition USB D- USB D+ 10. Resistive touch connector Pin Definition Definition 11. COM3 connector Pin Definition Definition DCD# DTR# DSR# RTS# CTS# +5V/+12V/Ring 12. Sideward MSR connector Pin Definition Colormetrics P1000 www.colormetrics.info...
  • Page 13 12. Sideward MSR connector Pin Definition Definition USB D- USB D+ USB D- USB D+ 13. RJ11 (Cash Drawer) connector Pin Definition Definition C/D_OPEN# C/D Status +24V 14. VFD connector Pin Definition Definition RTS# DSR# CTS# DTR# USB D- USB D+ www.colormetrics.info Colormetrics P1000...
  • Page 14: Rear I/O Interface

    1. 2-Layer USB2.0 connector Pin Definition Definition Definition 2. 2-Layer USB3.0+2.0 connector Pin Definition Definition Definition 3. LAN: RJ45 Pin Definition Definition MDI0A+ MDI0A- MDI1A+ MDI1A- MDI2A+ MDI2A- MDI3A+ MDI3A- 4. LINE-OUT JACK Pin Definition Definition GND_AUD GND_AUD LINE_OUTR2 LINE_OUTL2 LINE2-JD Colormetrics P1000 www.colormetrics.info...
  • Page 15: System Assembly & Disassembly

    1. Dis-fasten 2 screws. 2. Pull out the hard drive case in an outward direction to remove it from the system. 3. Install the hard drive in the hard drive case and fasten 4 hard drive case screws. www.colormetrics.info Colormetrics P1000...
  • Page 16: Memory

    5-2. Memory Dis-fasten 11 screws and remove the back cover. Insert the RAM into the RAM slot. Colormetrics P1000 www.colormetrics.info...
  • Page 17: Msr / I-Button

    1. The MSR/iButton easily install on the side of the LCD Touch Screen’s USB 2.0 connector. 2. Insert the USB connector on the MSR/iButton into the side USB port 3. Secure the module with the two screws onto the system. www.colormetrics.info Colormetrics P1000...
  • Page 18: Nd Display

    2. Either plug the VFD cable into the VFD connector or plug the 8” or 10” 2 display cable into the display’s connector (note: display connector can only be connected to one device at a time). 3. Install VFD with 2 screws / Install 8”or 10”2nd display with 2 screws. Colormetrics P1000 www.colormetrics.info...
  • Page 19: Device Driver Installation

    For second level device the Indirect command signal should be selected (see block3 & 4). There are two command/response windows can be used (see block1 & 2). For second level device the Indirect command signal should be selected (see block3 & 4). Press www.colormetrics.info Colormetrics P1000...
  • Page 20 “Get Configuration Word”: Get current setting in the device connected. “Set Configuartion Word”: Set current setting on the screen to the device connected. 16 parameter areas(see below) are used for four functions, each function related area should be Colormetrics P1000 www.colormetrics.info...
  • Page 21 16 parameter areas(see below) are used for four functions, each function related area should be setup correctly and press Set Configure Word button before operation. MSR function areas: 1,2,5,6,9,11,12,13 iButton function areas: 2,3,5,7,10,11,14 RFID function areas: 2,4,5,8,11,15 Chip card function areas: 16 www.colormetrics.info Colormetrics P1000...
  • Page 22 If enabled, the beeper will activate to indicate the operation result. Beep Enable: If enabled, the beeper will activate to Area 6 Track 1 (JIS II) Request: If selected, the reader will response track Colormetrics P1000 www.colormetrics.info data only if track1 read correctly.
  • Page 23 Define Track 3 Start sentinel byte, default is “+”. Tracks End Sentinel: Define all Tracks End sentinel byte, default is “?”. Tracks Separator: Define the insertion byte between each track data returned. Tracks Terminator: Define the appending byte after the last track data returned. www.colormetrics.info Colormetrics P1000...
  • Page 24 Select RFID ID response port right after tag attached or removed. Head/Tail Message: Message prefix and suffix to tag data returned. Each Head/Tail accepts10 bytes max. long. Invisible code: Enter keyboard control code. Area 16 ICC Response Port: Select chip card auto. ATR response port, Colormetrics P1000 www.colormetrics.info...
  • Page 25: Install Framework

    6-2. Install framework 4.0 1. Double-click to install. 2. Select “I have read and accept the license terms. And click Install.. www.colormetrics.info Colormetrics P1000...
  • Page 26 3. Click Finish. Colormetrics P1000 www.colormetrics.info...
  • Page 27: Configuration Utility Of Vfd

    6-3. VFD 1. Power on VFD and waiting test page of EEPROM test, Baud rate and Command page. Set up the customer display by " VFDset.exe” 2. Setup VFDset.exe software. www.colormetrics.info Colormetrics P1000...
  • Page 28 VFD module (Note: You may check it when power on VFD module), then click “Open COM” button. 4. “Get Setting from VFD” button to get all the settings from Colormetrics and it’ll refresh the “VFDset.exe” software. 5. Select “Character Type”/ “Command Mode”/ “Baud Rate Select”/ “pass thru Mode”.
  • Page 29 Hex mode Hex mode can define the character from 0x20h to0xFFh,the range 0x80~0XFF which Hex mode can define the character from 0x20h to0xFFh,the range 0x80~0XFF which depends on the code page table. depends on the code page table. www.colormetrics.info Colormetrics P1000...
  • Page 30 “Download O.K! Please restart!” message popped up. Please restart display for enable new setting 9. Click “Save” button To save user’s setting in file; for example, below picture to save file name as “GOODLUCK” file set for Welcome Message. Colormetrics P1000 www.colormetrics.info...
  • Page 31 10. Click “Load” button After saving, you must restart the utility here. Then load your setting rename-GOODLUCK.vfd. www.colormetrics.info Colormetrics P1000...
  • Page 32: Bios/Utility Setup

    1. Press <DEL > key to enter SETUP CMOS UTILITY when system boot up. 2. Press <ENTER >over SCU button to enter the utility. 2. Press <ENTER >over SCU button to enter the utility. 2. Press <ENTER >over SCU button to enter the utility. Colormetrics P1000 www.colormetrics.info...
  • Page 33 Setting the wrong values in the sections below may cause the system to malfunction. Make sure Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware. that the settings made are compatible with the hardware. www.colormetrics.info Colormetrics P1000...
  • Page 34: Advanced

    7-1. Advanced Use the Advanced menu to configure the system for basic operation through the following sub-menus: Colormetrics P1000 www.colormetrics.info...
  • Page 35: Boot Configuration

    7-1-1. Boot Configuration Use the Boot Configuration menu to select power-on state for Numlock. www.colormetrics.info Colormetrics P1000...
  • Page 36: Audio Configuration

    7-1-2. Audio Configuration Use the Audio Configuration menu to read Audio configuration information and configure the Audio settings Colormetrics P1000 www.colormetrics.info...
  • Page 37: Video Configuration

    Use the Video Configuration menu to read Video configuration information and configure the Video string. This character simulates the end of character for track1, track2 or track3. This default is ‚?‘ Use the Video Configuration menu to read Video configuration information and configure the Video settings settings www.colormetrics.info Colormetrics P1000...
  • Page 38: Sata Configuration

    7-1-4. SATA Configuration Use the SATA Configuration menu to read SATA configuration information and configure the SATA settings Colormetrics P1000 www.colormetrics.info...
  • Page 39: Security

    7-2. Security Use the Security menu to install or change the password www.colormetrics.info Colormetrics P1000...
  • Page 40: Power

    Enable or disable system power on automatically after AC power restored Wake on LAN Enable or disable system wake by onboard LAN chip LVDS Firmware update This item allows you to enable or disable LVDS Firmware update Colormetrics P1000 www.colormetrics.info...
  • Page 41: Boot

    7-4. Boot Use the Boot menu to select type to Dual type, Legacy type or UEFI type. www.colormetrics.info Colormetrics P1000...
  • Page 42: Exit

    7-5. Exit Use the Save & Exit menu to load default BIOS values, optimal failsafe values or to save configuration changes. Colormetrics P1000 www.colormetrics.info...
  • Page 43: Lcd Surface Cleaning

    3. What types of cleaners are acceptable? Water ☆ Vinegar (mixed with water) ☆ Isopropyl Alcohol ☆ NOTICE: The following cleaners are unacceptable: ☆ Acetone ☆ Ethyl alcohol ☆ Ethyl acid ☆ Ammonia ☆ Methyl chloride www.colormetrics.info Colormetrics P1000...
