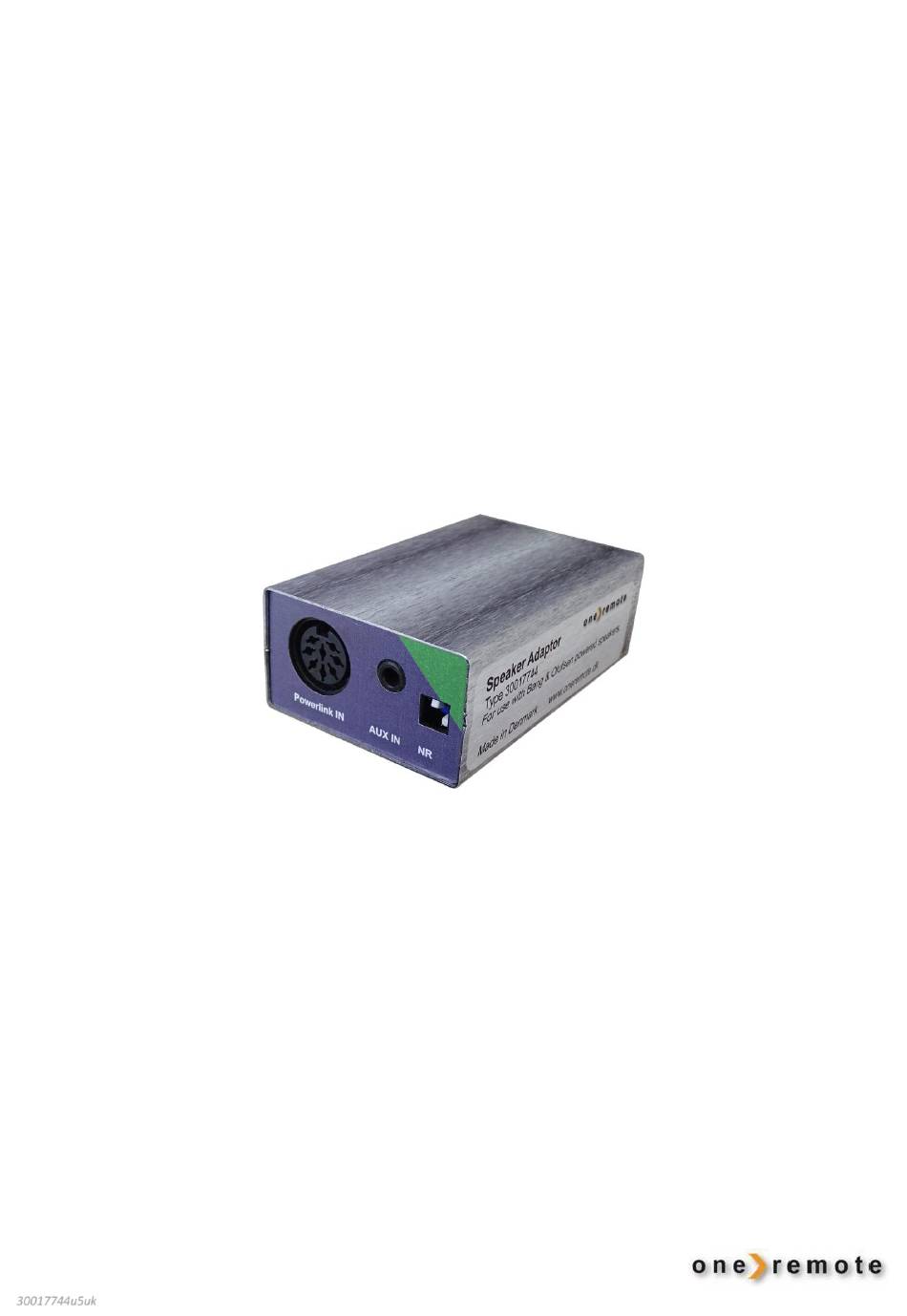

- Page 1 PowerLink Speaker Adaptor OneRemote Type 30017744 User Manual 30017744u5uk...
-
Page 2: Table Of Contents
Lossless PowerLink Audio Pass ....................5 DataLink Pass ..........................5 Installation ............................6 Cable Quality ..........................6 AUX Source Noise Reduction ....................6 AUX Sound Level ........................6 Technical Specifications ........................7 Connections ..........................7 PowerLink Speaker Adaptor – Application Examples ................8 www.oneremote.dk... -
Page 3: Powerlink Speaker Adaptor
POWERLINK SPEAKER ADAPTOR The OneRemote Powerlink Speaker Adaptor enables two different sound sources to share ONE set of Bang & Olufsen PowerLink speakers. Input Sources: • Any Bang & Olufsen radio or TV sound source. • Any level controlled analog audio source like a TV, a Sonos system, an Apple Airport, a Bluetooth receiver, a DAB receiver or similar. -
Page 4: Plug & Play Operation
When the Speaker Adaptor is powered up the LED turns green, and when sound is flowing it turns red, now and then blinking with sound pulsation. The PowerLink source always has priority PowerLink PowerLink Out over the AUX source. -
Page 5: Features
• The analog ground signal is switched with a mechanical relay. • Digital data signal flow via a galvanic isolating optocoupler. LOSSLESS POWERLINK AUDIO PASS The PowerLink audio signals pass without any modification; the output of the adaptor is the same as the input. DATALINK PASS When the PowerLink source is active, any DataLink signals herein are passed directly to the output. -
Page 6: Installation
Connect the mains adaptor. CABLE QUALITY Be sure to use good quality PowerLink cables, preferably the double-shielded type, especially if long cables are used. DO NOT use un-shielded cables for any connection. PowerLink Cable MKII with 4-wire connections is not recommended. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Dimensions 25 x 45 x 74 mm Included accessories Power Adaptor 12VDC @ 400mA Euro CONNECTIONS Sockets: PowerLink in DIN 8-pin PowerLink AUX in 3.5 mm stereo jack DIN 8-pin PowerLink Power 12V DC 300mA www.oneremote.dk... -
Page 8: Powerlink Speaker Adaptor - Application Examples
If a Beo4 is modified with a OneRemote RMB4 converter, it can operate both the TV and the radio. A complete Bang & Olufsen system with a PowerLink Add music to any Bang & Olufsen system wirelessly using Apple Airplay or...
