Summary of Contents for Foxtech FH310-TIR MINI

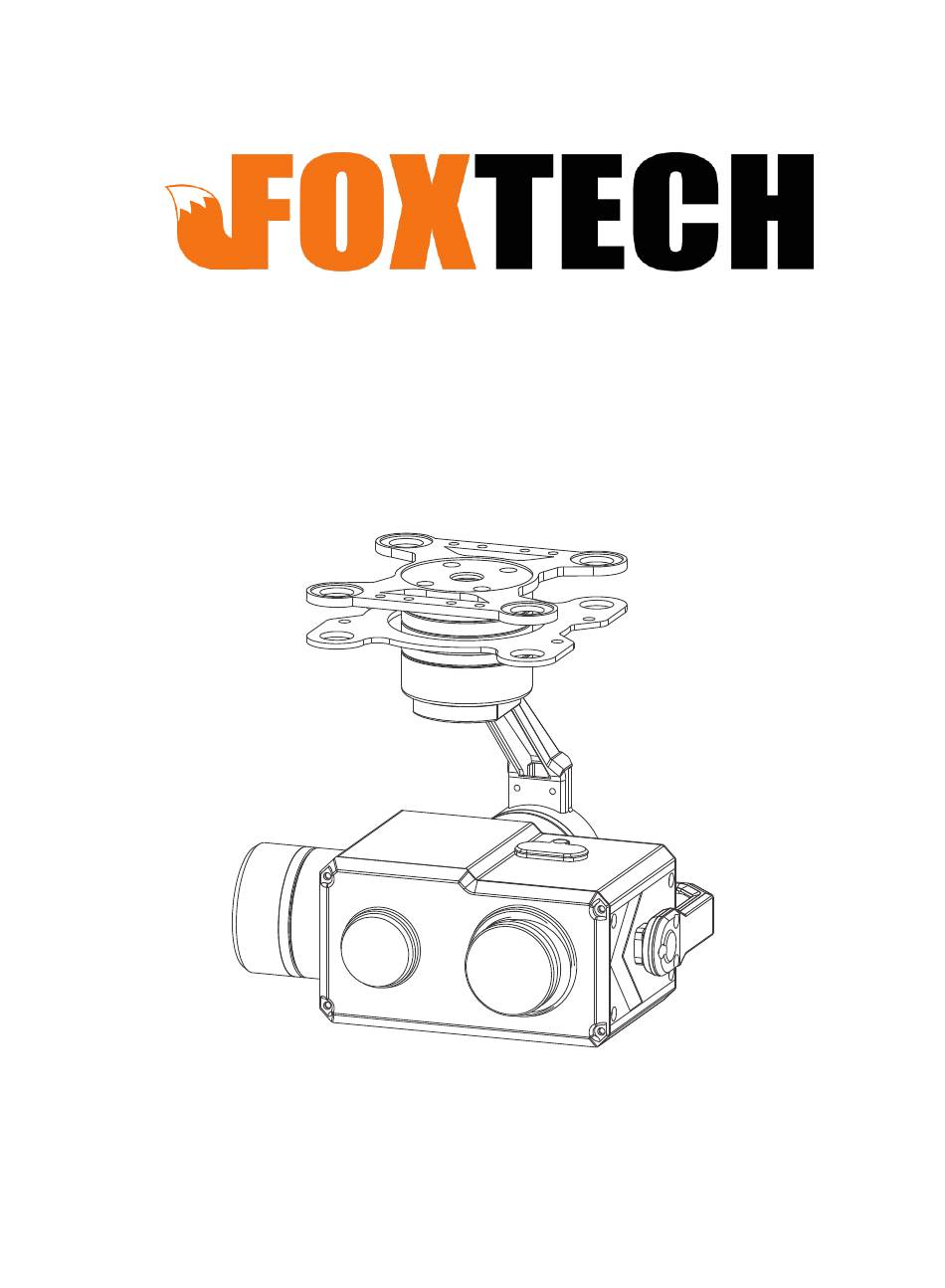

- Page 1 FH310-TIR MINI 10X Optical Zoom Camera with 3-axis Gimbal *10X Optical Zoom 4.08 MP HD CAmera *19mm 640*480 Thermal Camera *Target Tracking *490g *Size: 118mm*109mm*116.5mm *Max 128G SD Card Storage...
-
Page 2: Table Of Contents
Content 3-Axis Gimbal 、Gimbal Brief Introduction ……………………………… ……………… …2 Target Tracking ………… ………………………………………………………2 2、 3、Gimbal Description……………………………………………………………3 4、Packing List……………………………………………………………………………4 5、Loading Board Drawing…………………………………………………………4 6、Install………………………………………………………………………………………5 7、 Mechanical@electronic Characteristics… … … … … … … … … … …5 8、Working Characteristics…………………………………………………………5 9、Gimbal Signal Wire Connection Diagram………………………………6 640 19mm Thermal Camera 1、640 19mm Thermal Camera……………………………………………………10 10X White Light Camera... -
Page 3: Gimbal Brief Introduction
The gimbal supports PWM,S.BUS control and serial command control. Target Tracking Function FH310-TIR MINI also has the target tracking function, with which you will never lose the object. Just zoom in and put the object you want to track in the screen, move the cursor to the object and lock it via controller, and then the camera will track it automatically. -
Page 4: 3、Gimbal Description
G i m b a l D e s c r i p t i o n [1]Upper Damper Board [5]Pitch axis motor [2]Lower Damper Board 10X mini HD Camera [3]Yaw axis motor 19mm640 Thermal Camera [4]Roll axis motor Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: 4、Packing List
Packing List Gimbal*1 Screw pack*1 M3*5mm half round inner six angle screw*4 Damper*4 Copper pillar*4 Loading Board Drawing Unit：mm... -
Page 6: 6、Install
Install M e c h a n i c a l @ e l e c t r o n i c Characteristics voltage IDDQ 450mA@12V IDDT 550mA@12V 3S~4S 502g Environment -10℃~+60℃ Weight Temperature -30℃~+80℃ Size *H116.5mm 118mm Working Characteristics Pitch：-90°~+90°... -
Page 7: 9、Gimbal Signal Wire Connection Diagram
Gimbal Signal Wire Connection Diagram HDMI : micro HDMI OUTPUT 1080P 60fps default SD card: max 128G ,class10 FAT32 or exFAT format HDMI : HDMI 输出，micro HDMI 接口 高清输出 1080P 60fps SD card: 最大支持128G 卡，class10 高速卡 格式化为FAT32 or exFAT 格式 PWM in 5V output USER BOARD... - Page 8 S.bus/Rx:connect to Rx2 for track function. ( S.bus/Rx 用 户 不 可 用 ， 默 认 出厂与RX2连接，用做跟踪功能） Roll/ Tx:connect to Tx2 for track function. ( Roll/ Tx 用户不可用，默认出厂 与TX2连接，用做跟踪功能） Pitch:PWM in, pitch control ( 俯仰控制，PWM 输入） 1 pitch up 俯仰向上 2 pitch stop 俯仰停止...
- Page 9 Mode:change the speed / home position (调整云台控制速度/一键回中） Position 1 lowest speed for pitch and yaw. 云台低速） Position 2: middle speed for pitch and yaw.(云台中速） Position 3: highest speed for pitch and yaw. the speed is continuously quickly from 1 to 3. (云台高速 ）...
- Page 10 Pic/Rec picture / start record stop record （拍照 ， ， 开始录像 ， 停止录像） Switch 2 to 1 start record / stop record.( 2 从 切到 ,开始录像，再切一次， 停 止录像） start record, the OSD display rec hh:mm:ss ; (录像开始后，会显 示录像时间） stop record, the OSD display STBY. (录像停止后，显示STBY) Switch 2 to 3: take a picture .
-
Page 11: 640 19Mm Thermal Camera
640 19mm Thermal Camera -10-... -
Page 12: 10X White Light Camera
10X White Light Camera 10X Z o o m C a m e r a S p e c i f i c a t i o n Sensor 1/3 Progressive CMOS sensor Effective Pixels 4.08 MP 1080p/60, 1080p/50, 1080p/30, Video Output（HD) 1080p/25 0.5 lx 1/30sec, F1.8, 50%...
