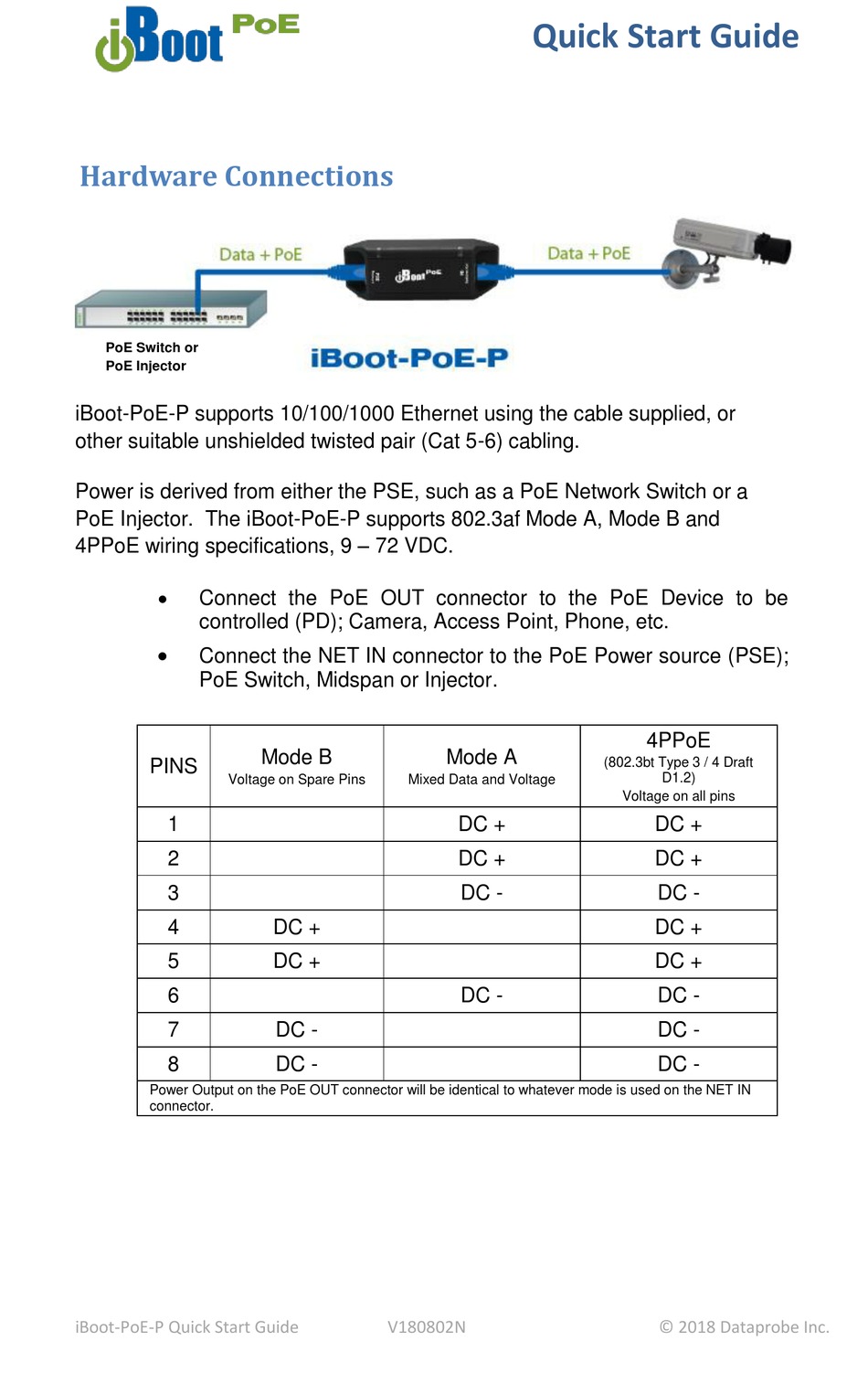

Hardware Connections
PoE Switch or
PoE Injector
iBoot-PoE-P supports 10/100/1000 Ethernet using the cable supplied, or
other suitable unshielded twisted pair (Cat 5-6) cabling.
Power is derived from either the PSE, such as a PoE Network Switch or a
PoE Injector. The iBoot-PoE-P supports 802.3af Mode A, Mode B and
4PPoE wiring specifications, 9 – 72 VDC.
Connect the PoE OUT connector to the PoE Device to be
controlled (PD); Camera, Access Point, Phone, etc.
Connect the NET IN connector to the PoE Power source (PSE);
PoE Switch, Midspan or Injector.
PINS
Voltage on Spare Pins
1
2
3
4
5
6
7
8
Power Output on the PoE OUT connector will be identical to whatever mode is used on the NET IN
connector.
iBoot-PoE-P Quick Start Guide
Mode B
Mixed Data and Voltage
DC +
DC +
DC -
DC -
V180802N
Quick Start Guide
Mode A
(802.3bt Type 3 / 4 Draft
DC +
DC +
DC -
DC -
4PPoE
D1.2)
Voltage on all pins
DC +
DC +
DC -
DC +
DC +
DC -
DC -
DC -
© 2018 Dataprobe Inc.
Advertisement
Table of Contents
Related Manuals for Dataprobe iBoot-PoE-P
Summary of Contents for Dataprobe iBoot-PoE-P
-
Page 1: Quick Start Guide
(Cat 5-6) cabling. Power is derived from either the PSE, such as a PoE Network Switch or a PoE Injector. The iBoot-PoE-P supports 802.3af Mode A, Mode B and 4PPoE wiring specifications, 9 – 72 VDC. -
Page 2: Led Displays
If your network supports DHCP, the IP address of the iBoot will be automatically assigned. Find the IP Address of the iBoot using either from the DHCP Router/Server or use the Dataprobe Device Management Utility (DMU), available at dataprobe.com/support-iboot-poe See Page 3 for more in the DMU. - Page 3 Changing the IP Address Device Management Utility Obtain the Device Management Utility (DMU) from Dataprobe’s website at dataprobe.com/support-iboot-poe Open the DMU on a PC on the same physical network as the iBoot and select Device > Discover to display the current IP Address of the iBoot.
