Summary of Contents for kincrome KP8001

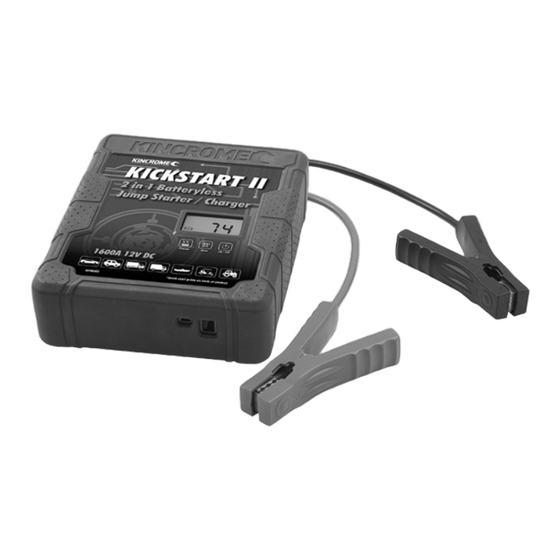

- Page 1 2 IN 1 BATTERYLESS JUMP STARTER / CHARGER KP8001 - 800A 12V DC KP8001, KP8002 KP8002 - 1600A 12V DC ED1/August 17...
- Page 2 Quick Start Information* *On rear of product 12V DC Charger Adaptor Power Adaptor Battery Terminal Wrench Specifications Part No KP8001 KP8002 Cranking Current 12V DC - 400A 12V DC - 800A Peak Current 12V DC - 800A 12V DC - 1600A...
-
Page 3: General Safety Warnings
BATTERYLESS JUMP STARTER General Safety Warnings Save all warnings and instructions for future reference. WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Electrical Safety Charger plugs must match the outlet. - Page 4 BATTERYLESS JUMP STARTER General Safety Warnings (Cont.) Chargers Use your Power Adaptor (11) only to charge the battery in the Batteryless Jump Starter with which it was supplied. Using a power adaptor not designed for the battery it was intended for could cause battery failure, potentially leading to personal injury and damage.
- Page 5 BATTERYLESS JUMP STARTER Description of Control Panel Display Description LED Screen Colour Fig 1. Vehicle battery voltage. BLUE Fig 2. Capacitor state of charge. BLUE Fig 3. Ignition symbol, it’s ready BLUE to start. Fig 4. GLOW PLUG mode is BLUE activated.
- Page 6 Seek further advice from an automotive repairer to identify the cause (Any such costs associated with seeking advice from an automotive repairer is not covered by Kincrome). WARNING! Disconnect the Batteryless Jump Starter immediately after the vehicles’ engine has started.
-
Page 7: Standard Operation
BATTERYLESS JUMP STARTER Petrol Diesel Model Cranking Warm Engine Cold Engine Warm Engine Cold Engine Cold Engine Current (No Battery Fitted) KP8001 400A 5.0 L 4.5 L 3.0 L 3.0 L 1.6 L KP8002 800A 8.0 L 6.0 L 5.0 L 4.0 L... - Page 8 Kincrome). • Or recharge your vehicles battery using the KP8001 / KP8002 Battery Charging Function or a battery charger compatible with your batteries ratings. Refer to the battery chargers output rating details to ensure it is suitable for use on your battery.
-
Page 9: Frequently Asked Questions
BATTERYLESS JUMP STARTER 4. GLOW PLUG Mode (Use on Diesel Engine Vehicles) Generally, a diesel engine vehicle requires the glow plugs to be first energized to heat up the engine chamber before the engine starts, as indicated by the GLOW PLUG icon on the dashboard of the diesel vehicle. - Page 10 BATTERYLESS JUMP STARTER What is Bypass mode? The ECU of some cars doesn’t allow the engine to start if the batteries voltage is lower than 8V. In this situation, the positive battery lead needs to be disconnected from the car battery and connected directly to the Positive Battery Clamp RED (1).
- Page 11 Made to Kincrome Tools & Equipment Pty Ltd Global specifications and quality standards in China Warranty given by Kincrome Tools & Equipment Pty Ltd of 3 Lakeview Drive, Caribbean Park, Scoresby, Victoria, Australia (Tel +61 3 9730 7100) If this product has materials or workmanship defects (other than defects caused by abnormal or non warranted use) you can, at your cost, send the product to place of purchase, an authorised Kincrome service agent or one of Kincromes addresses for repair or replacement.
- Page 12 www.kincrome.com.au...
