ETI SNOW SWITCH SENSOR CUP Installation Manual

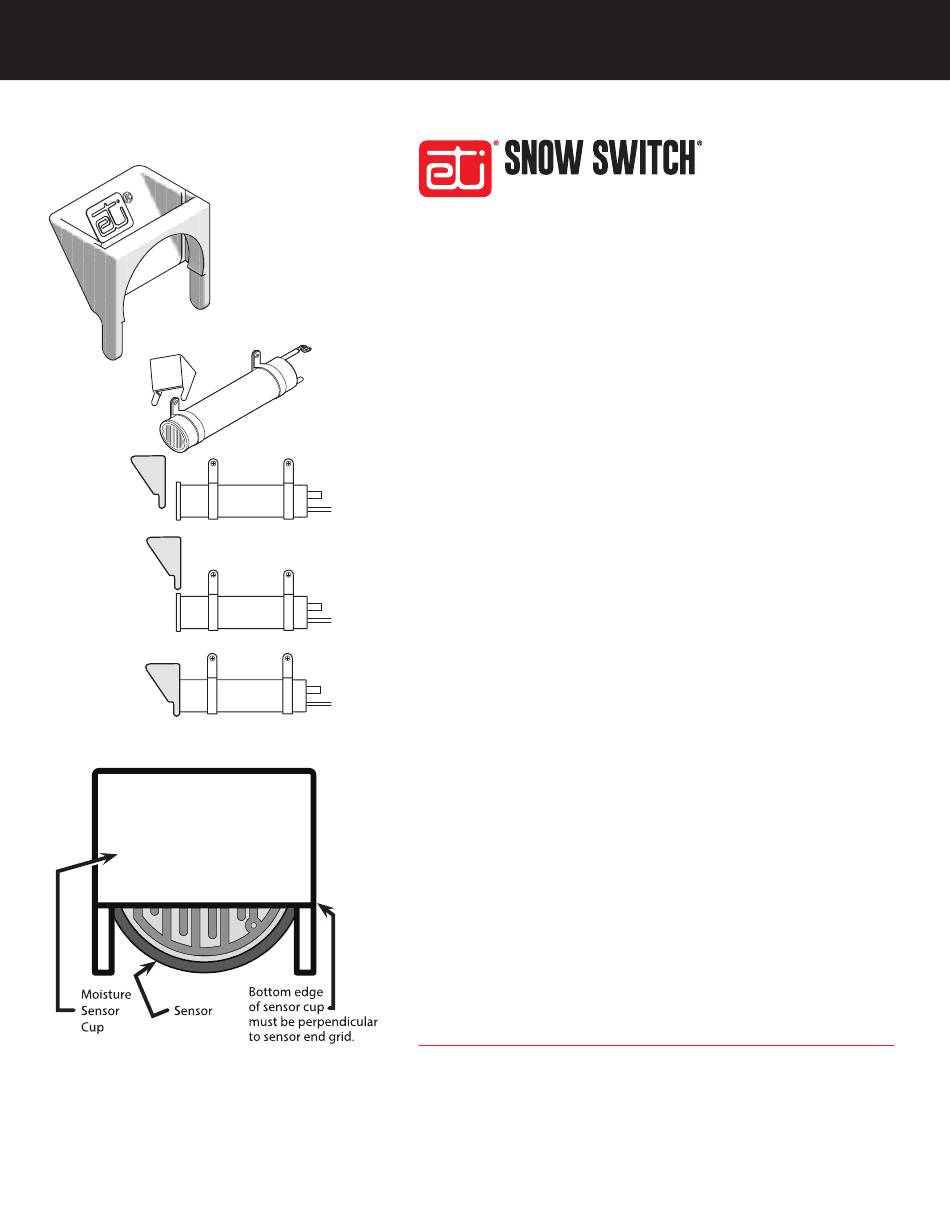

FIGURE 1.
Moisture Sensor Cup.
FIGURE 3. Moisture Sensor Cup
installed over the Sensor.
South Bend, Indiana USA | networketi.com
FIGURE 2. Moisture
Sensor Cup positioned
over grid-end of Sensor.
GENERAL GUIDELINES
An optional moisture sensor cup has been included with this assembly
to enable the ice/snow sensor to work most efficiently in the widest
possible variety of weather conditions in which it will be used. Refer
to Figure 1. Specifically, the optional moisture sensor cup will keep ice
and dry snow from mounding up over the moisture sensor, limiting
its full effectiveness, especially in areas of extreme cold or high
altitudes. This installation sheet describes the installation and use of
this optional moisture sensor cup.
It is important to keep the gutters clean when using a gutter sensor.
The addition of the moisture sensor cup requires extra care to keep
the cup free of debris.
Note that the use of the optional moisture sensor cup will require that
the gutters be kept as clean and free from leaves and related debris
as possible so that the sensor unit does not run longer than necessary.
PACKING LIST
Part
23973
23864
AUTOMATIC SNOW/ICE MELTING SYSTEM CONTROL PANEL
Number Description
Installation Sheet (this document)
Moisture Sensor Cup
MOISTURE SENSOR CUP INSTALLATION MANUAL | PART NO.
SENSOR CUP
23975 REV A
