- Page 1 Patent(s) Pending AllInOne for HP SFF Installation Instructions Kit P/N: RETAILHPAIO016 RETAILHPAIO021...

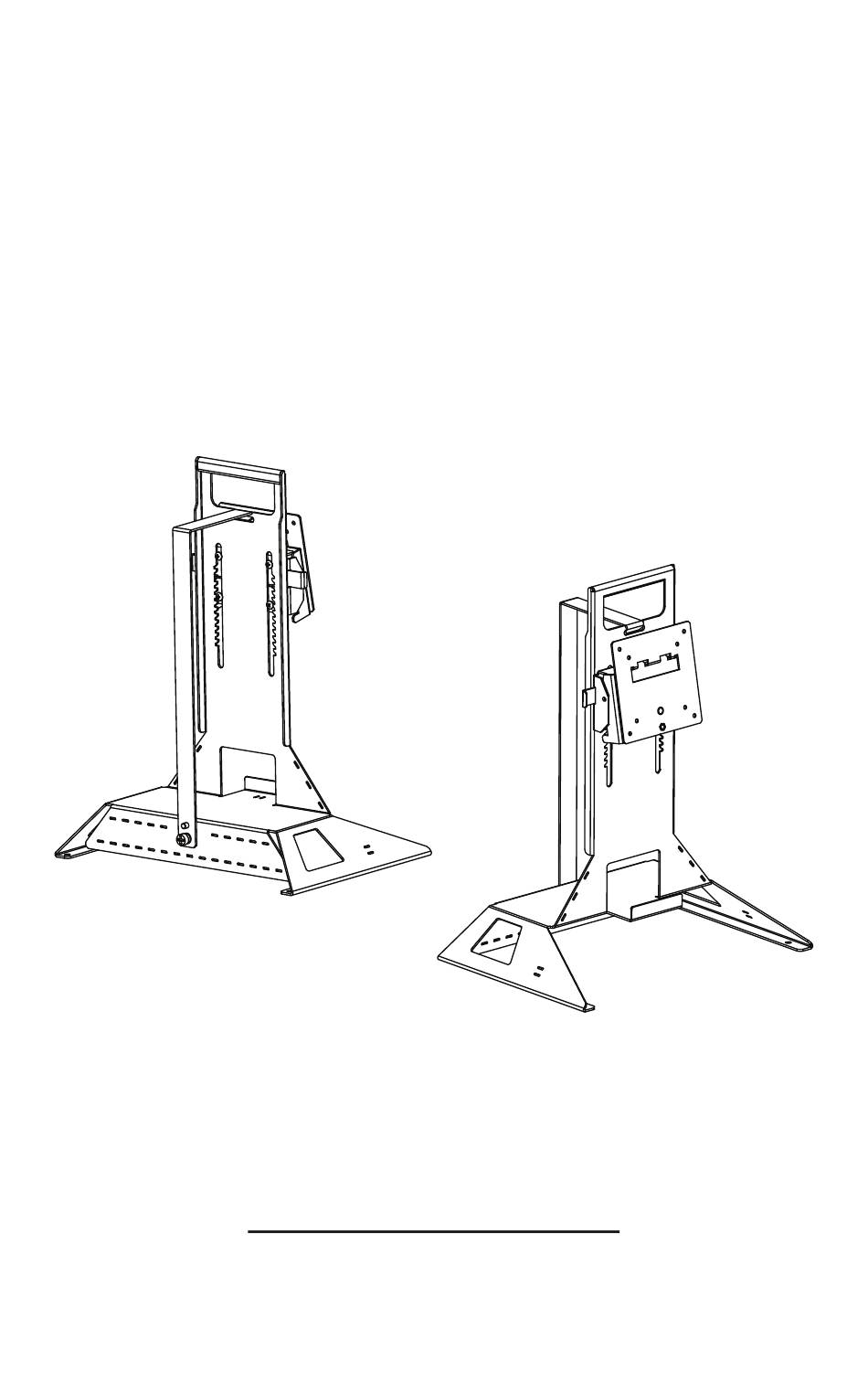

- Page 2 Kit Contents Monitor Hardware Package: Assembly Components: (8) Nylon Spacers (1) Stand Assembly (5) M4 x 10mm Pan Head Screws (1) PC Bracket (Attached) (5) M4 x 18mm Pan Head Screws (1) VESA Monitor Bracket (5) M4 x 25mm Pan Head Screws Installation Instructions Step1 Computer Installation: Ensure that the PC Bracket is removed. Set the computer on the stand. Hook the PC Bracket at the top and tighten the thumb screw. PC Bracket Thumb Screw Page 2 ...
- Page 3 Installation Instructions Step 2. VESA Monitor Bracket Attachment:!"#$%!&'(!)*%+&*$!,-.(!/*0%!*%!-!1-$2(!3-&! surface. Locate the four VESA mounting holes on the rear of the monitor. a. Determine if spacers are required: Some monitors have a "recess" on the rear !!!!4#$,-.(5!67-.($4!-$(!7$*8+/(/!&*!911!&'+4!2-75!6((!"-:1(!;!,*$!47-.($! length options. b. Determine Screw Length: Only use the metric M4 screws provided. Screw length is determined by the spacers used (see Table A). (4) Screws, Metric VESA Monitor Bracket See Table Below Spacers (See Table Below) VESA Hole Pattern Recess Bottom of Monitor Table A Recess Depth Spacer Screw No Spacer Needed 10mm .250 (1/4) 18mm .500 (1/2) 25mm Screws and Spacers are Shown to Scale Page 3...
- Page 4 Installation Instructions Step 3. Monitor to Stand Installation: Slide the monitor with the VESA Monitor Plate down over the top two Tabs on the Stand. Tighten the Thumb Screw to secure the Monitor to the Stand. Tabs Monitor Monitor Stand Thumb Screw Pivot Bracket Warranty Statement Innovation First, Inc. warrants our products against defects in material and workmanship for a period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to repairing or replacing, at our option, any defective product. 783 898...
