  • Page 1 CHE-HDBTWP240K-TX HDBaseT Wall-plate 18Gbps Transmitter (2-Gang US Decora) VER 1.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefu- lly before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc.

  • Page 3: Introduction

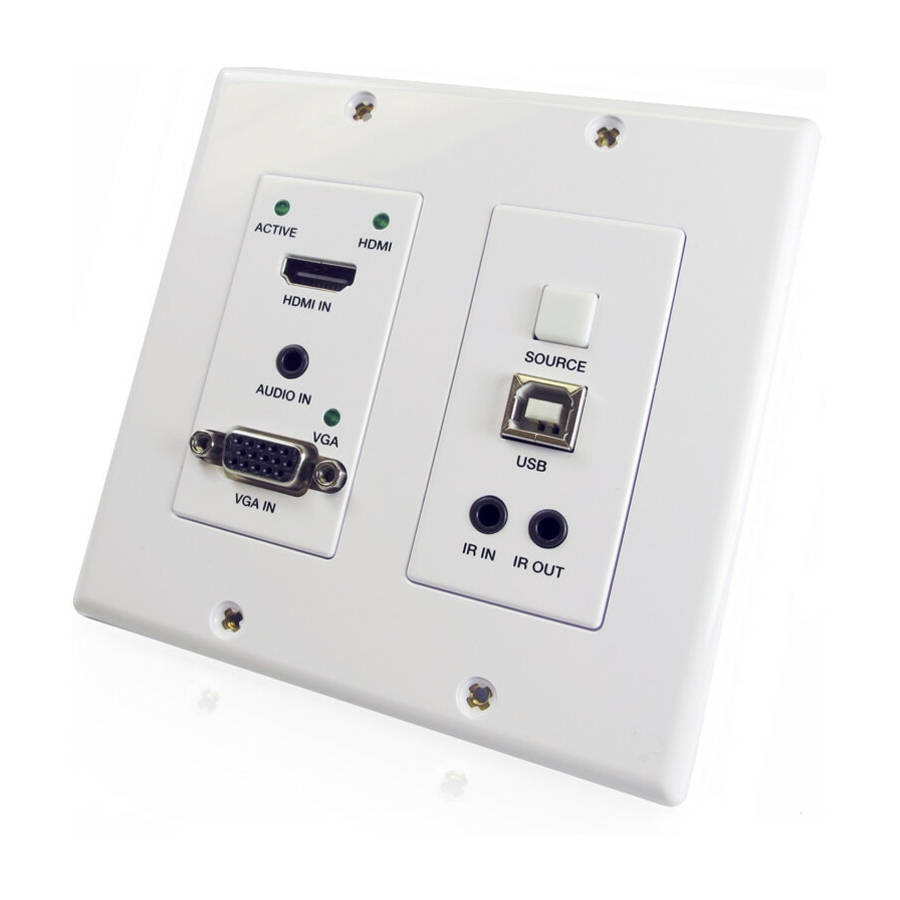

    1. Introduction The HDBaseT Wall-plate Transmitter supports HDMI and VGA with audio inputs within a standard 2-Gang US Decora wall box. It can transmit HDMI signal over single CAT6/6a/7 to the distance up to 131ft/40m for 4K2K@ 60Hz(4:4:4) or 1080p up to 230ft/70m. Auto-switching allows user to plug-in and play.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18 Gbps HDMI Video Resolution 4K2K@50/60Hz 4:4:4 (max) Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 10-bit, 12-bit LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, HDMI Audio Formats DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD VGA Video Resolution 1080P@50/60Hz 4:4:4 (max)

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Front panel Number Name Function description Signal status indicator. The LED will illuminate green when ACTIVE the HDMI port or the VGA port have signal source input. The HDMI input signal indicator. The LED will illuminate HDMI LED green when the SOURCE button have selected input signal from the HDMI port.

  • Page 6: Rear Panel

    5.2 Rear panel Name Number Function description Use the phoenix jack for connect PC or control system to RS-232 transmit RS-232 commands. DC 24V Use the phoenix jack for connect power supply. 5.3 Side panel Micro-USB Name Number Function description HDBaseT output port.

  • Page 7: Dimension Of Panel

    5.4 Dimension of Panel Figure 1 Front panel Figure 2 Rear panel Figure 3 Side panel...
  • Page 8 ※ Description 1 POC (Power over Cable) Application Example CAT5e/6/7 CAT5e/6/7 ※ Description 2 Bidirectional Infrared control Application Example HDMI Cable UTP Cable HDMI Cable TX 2 TX 1 DVD Remote TV Remote ※ Description 3 Bidirectional RS-232 control Application Example...

  • Page 9: Application Example

    6. Application Example 80 Little Falls Road, Fairfield, NJ 07004 sales@comprehensiveco.com l 800.526.0242 l www.ComprehensiveCo.com...
